PR20EVSNK Professional
Palm Routers
1 HP Colt™ Variable Speed Electronic Palm Router Installer's Kit
- 1.0 HP (Max. tool output) — 5.6 Amp motor -16,000 35,000 RPM
- Rugged aluminum fixed base — durable, solid and precise
- Fast and precise depth adjustment system — the best depth adjustment system in its class
- Unique finger support pockets — for additional stability, especially when trimming edges
- Enhanced bit capacity — fixed base accepts bits up to 1-5/16 In. in diameter
- Soft Start — reduces start-up torque
- Constant Response circuitry — monitors and maintains speed under load for consistent performance and provides overload protection
- Versatile bit-changing system – fast, easy bit changes using two wrenches or spindle lock and one wrench
- Quick-clamp system — allows motor to be easily adjusted or moved from base to base
- Offset base with spindle lock — allows routing near vertical surfaces, such as when trimming laminate applied to top of countertop backsplash
- Angled cord exit — helps keep cord out of the way
- Tilt base with detents at key angles — allows routing at special angles and in hard-to-reach areas
- Underscribe attachment — mounts to fixed base for creating precise seams between sheets of laminates
- Straight edge guide — guides router along edges of workpiece or up to 3-5/8 In. from edge
- Roller guide — guides router when non-bearing bit or unpiloted bit is used
Technical data
The most important data |
|
|---|---|
| Amperage | 5.6 |
| Base Opening | 1-9/16" |
| Case Type | Hard plastic |
| Collet Capacity | 1/4" Self-releasing |
| Dust Collection | No |
| Fixed-Base Depth Range | 1-3/16" |
| Height in | 7.5 " |
| Length in | 3.5 " |
| Max. Tool HP | 1 |
| No Load RPM | 16,000-35,000 |
| Subbase Length | 3-1/2" |
| Subbase Width | 3-3/4" |
| Variable Speed | Yes |
| Voltage | 120V |
| Weight | 3.3 lb |
| Width in | 3.75 " |
| Works With | Plunge Base, PR011, Offset Subbase and Dust Collection Attachment, PR007, Plastic Cover for Fixed Base, PR008, Subbase for Common Threaded Template Guides, PR110, Subbase for RA-Series Template Guides, PR009, Roller Guide, PR003 |
| Includes |

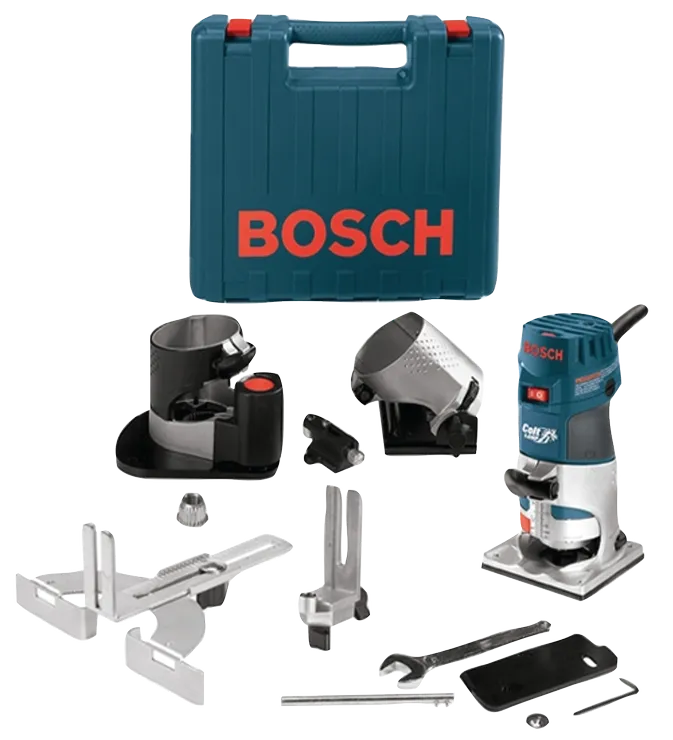

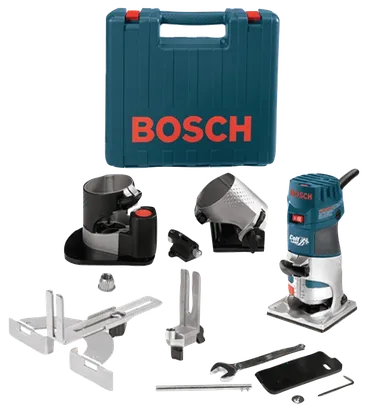

(1) -- PR20EVS Motor (1) - 1/4" Self-Releasing Collet Chuck - 2610008122 (1) - 17 mm Collet Wrench - 2609110438 (1) - 10 mm Shaft Wrench - 2609110786 (1) - Fixed Base -- PR001 (1) -- Straight Edge Guide -- PR002 (1) -- Roller Guide -- PR003 (1) -- Offset Base with Roller Guide -- PR004 (1) -- Tilt Base -- PR005 (1) -- Underscribe Plate with Wrenches -- PR006 (1) - Carrying Case |
PR20EVSNK Professional: Further information
Product Highlights
The Bosch PR20EVS Colt variable-speed palm-grip router puts routing power and precision in the palm of your hand. The PR20EVS has an ergonomic palm-grip design with softgrip to make it very comfortable to hold, yet it also has ample power, making it typically easier to use than larger routers. It's more than a just a laminate trimmer, as it is the ideal tool for putting roundovers on deck railings, mortising for hinges, slot cutting, and much more. The motor features soft-start, a variable-speed control, and Constant Response circuitry to maintain speed under load. The PR001 fixed base features macro- and micro-fine depth adjustment. This kit includes the motor, fixed base, 1/4 In. self-releasing collet, comfortable foreged bit wrenches, edge guide and case. This laminate installer kit also includes a roller guide, offset base with roller guide, tilt base, and an underscribe plate with adjustment wrenches.
