PR007 Professional

Router Attachments, Palm Routers

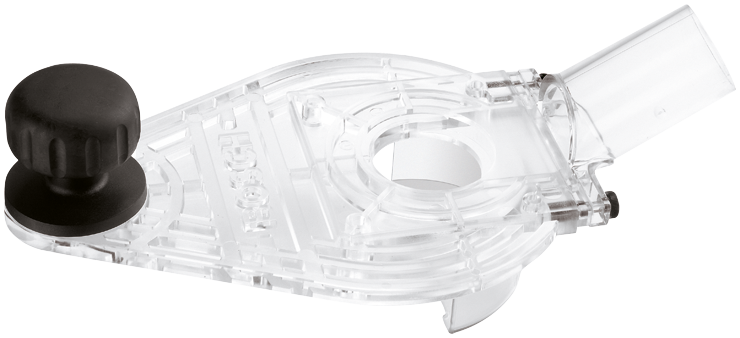

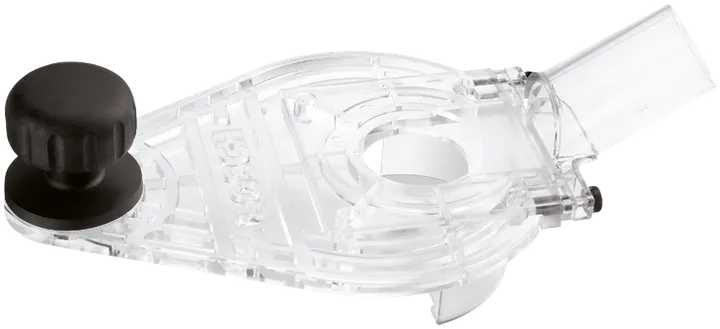

Side-Handle Subbase with Dust Extraction Port

For use with Bosch PR001 fixed base of PR10E and PR20EVS colt palm routers
Side handle provides additional gripping location for support of router
Allows dust collection when edge-forming or when working in from workpiece edge
Hose port accepts Bosch vacuum hoses directly and accepts standard 1-1/4 In. and 1-1/2 In. hoses when included VAC002 adapter is used
Accepts optional PR006 Underscribe attachment for creating precision seams between two sheets of laminates
Connection to dust extraction system provides excellent means to prevent chips from getting under laminate sheets and into glue
Not for use with Templet guides

View more View less

Your Selected Variant

PR007 Professional

Technical data

The most important data

Material

Clear Polycarbonate

Subbase Length

8-1/8"

Subbase Opening

1-9/16"

Subbase Width

5-7/8"

Used on Model No.

Bosch PR001 Palm Router Fixed Base

Used on Part No.

PR006, VAC002, VAC005, VAC006, VAC007, VAC008

Weight

0.75 lb

Works With

Palm Router Bases, PR001 for PR20EVS and PR10E, Anti-Static Vacuum Hoses, VH1635A (by means of anti-static adapter included with that hose), VAC008, and most other 35 mm anti-static hoses, Other Vacuum Hoses, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 35 mm hoses, Vacuum Hose Adapter for 1-1/4" and 1-1/2" Hoses, VAC002 and VAC024

Includes

Offset Subbase with Side Handle
Hose Port
VAC002 Vacuum Hoses Adapter
Two sets of attachment screws
Mounting screws
Dust Collection Hood for Use when Edge-forming

PR007 Professional: Further information

Product Highlights

The PR007 side-handle subbase with dust extraction port can be used with the with Bosch PR001 fixed base of PR10E and PR20EVS colt palm routers and provides numerous routing benefits. The side handle provides additional gripping location for support of router. The subbase accepts dust hoods for edge-forming or for routing in from edge of the workpiece. It also accepts the optional PR006 Underscribe attachment (sold separately) for creating precision seams between two sheets of laminates, and connection to dust extraction system provides excellent means to prevent chips from getting under laminate sheets and into glue. The unit's hose port accepts Bosch vacuum hoses directly and also accepts standard 1-1/4 In. and 1-1/2 In. hoses when included VAC002 adapter is used.

Downloads

User Manual

User Manual | o202607v2_2610010048_1209_PR007010_.pdf (PDF 1.8 MB)
