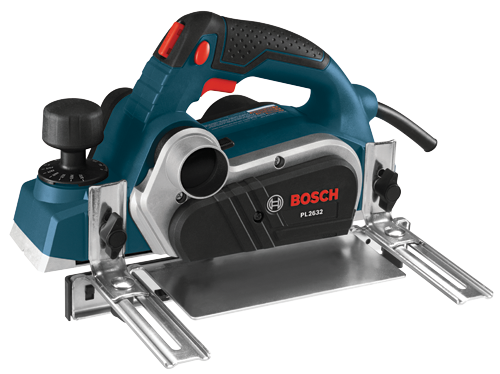

PL2632K Professional
Planers

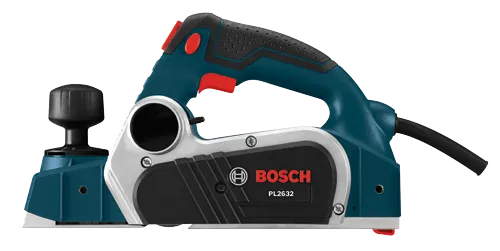

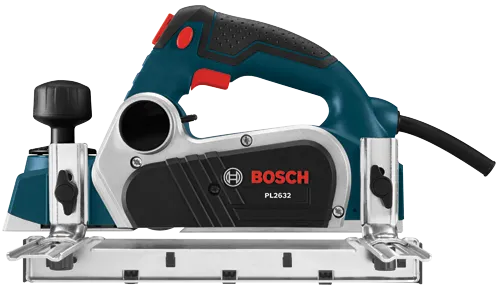

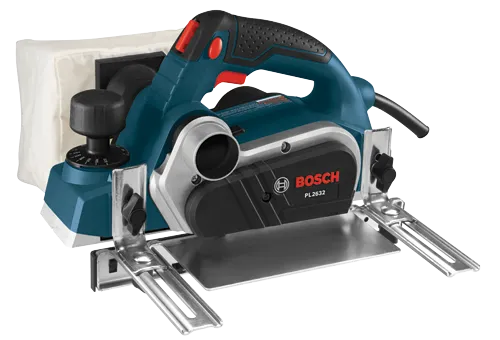

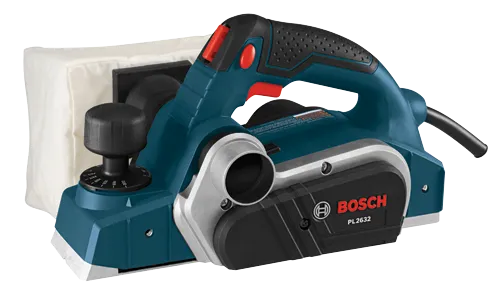

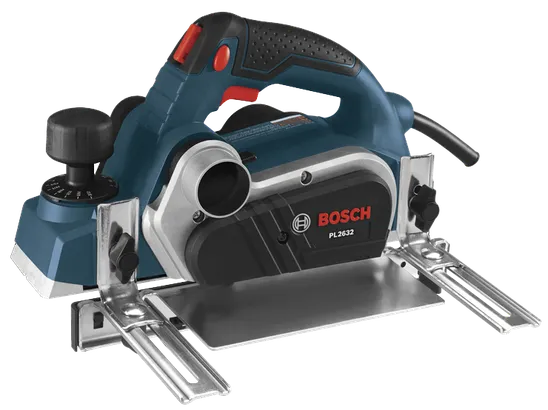

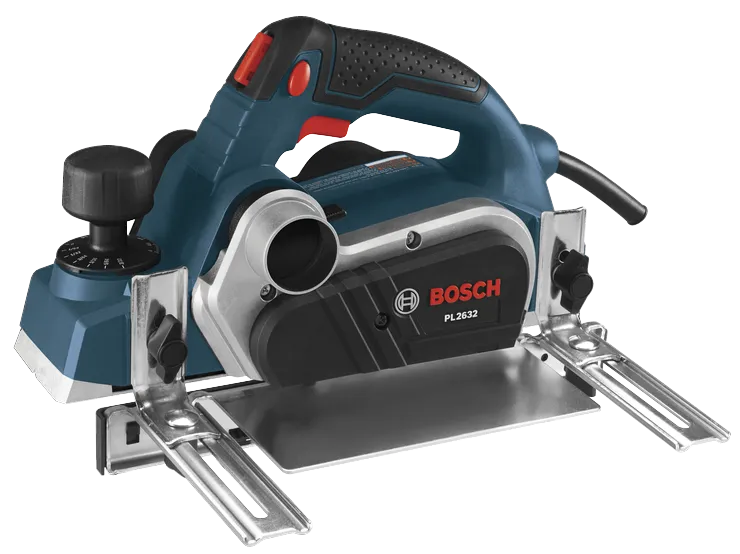

3-1/4 In. Planer Kit

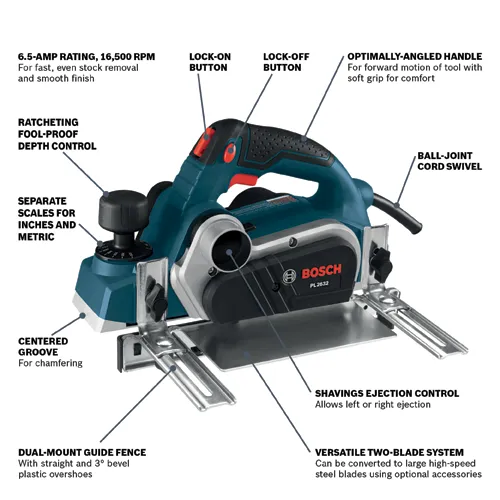

- 6.5 Amp motor producing 16,500 RPM – for fast stock removal and smooth finish

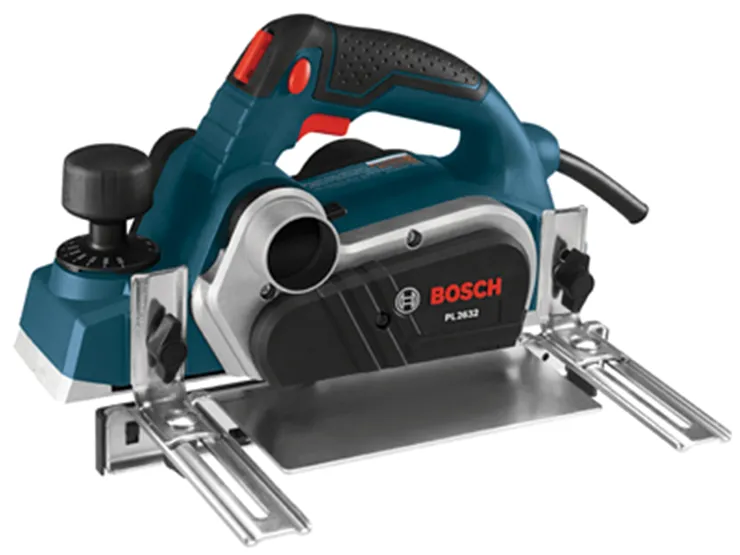

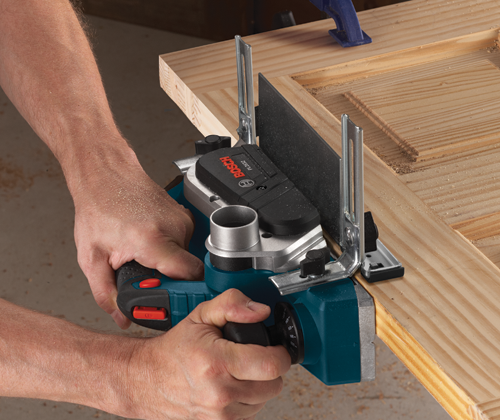

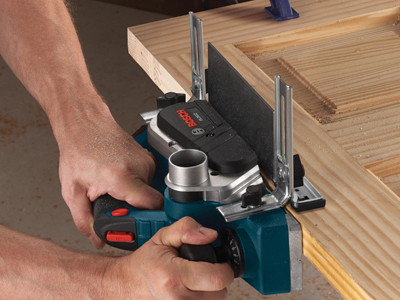

- Dual-mount guide fence – mounts to either side of tool and helps ensure consistent planing through entire workpiece; includes protective shield and 0° and 3° no-mar plastic overshoes
- Ambidextrous lock-off release button – helps prevent accidental starts; includes a lock-on button for extended operation

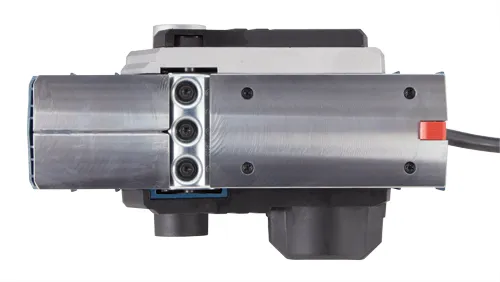

- Aluminum front and rear shoes – precision-machined together after assembly to ensure accuracy

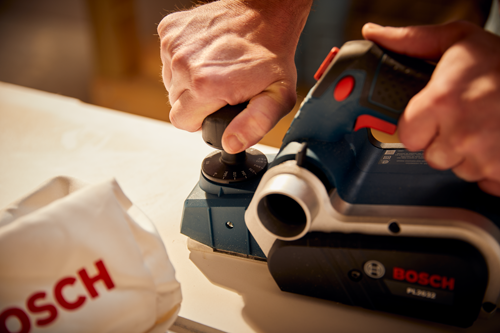

- Ratcheting depth knob – for foolproof depth-increment setting 0 to 2.6 mm (3/32 In.) within one revolution, eliminating the need to re-zero the depth
- Ejection control – allows shavings to be directed left or right
- Ball-joint cord swivel – for enhanced ease of positioning the tool and cord
- Reversible Bosch Woodrazor micrograin carbide blades – lasts up to 30% longer than standard carbide blades
- Versatile two-blade system – can be converted for use with large high-speed steel blades (optional accessories required)
- Spring-loaded stand elevates tool – protects blade and tool resting spot
- Separate inch and metric depth scales – for easy setting of planing depth
- Machined groove – for chamfering
- Poly micro-V drive belt – provides enhanced belt durability
Technical data
The most important data |
|
|---|---|
| Amperage | 6.5 |
| Case Type | Heavy-duty plastic |
| Height in | 6.5 " |
| Length in | 11.125 " |
| No Load RPM | 16,500 |
| Planing Depth | 0" - .09375" |
| Planing Width | 0" - 3.25" |
| Rabbet Depth | 5/16" |
| Rabbet Width | 3-1/4" |
| Rating | 120V AC |
| Variable Speed | No |
| Voltage | 120V |
| Weight | 6.3 lb |
| Width in | 6.5 " |
| Works With | Anti-Static Vacuum Hoses, VH1635A (by means of anti-static adapter included with that hose), VAC008, and most other 35 mm anti-static hoses, Other Vacuum Hoses, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 35 mm hoses, Adapter for 1-1/4 in and 1-1/2 in. Vacuum Hoses, VAC002, Adapter for 2-1/2 in. Vacuum Hoses, VAC020 |
| Includes |
(1) PL2632 3-1/4 In. Planer (1) PA1202 Woodrazor Mini Micrograin Blades (2) (1) Dual-Mount Guide Fence (1) Straight No-Mar Plastic Overshoe for Fence (1) PA209 3-Degree No-Mar Plastic Overshoe for Fence (1) Shavings Bag (1) Blade Wrench (1) Carrying Case |
PL2632K Professional: Further information
Product Highlights

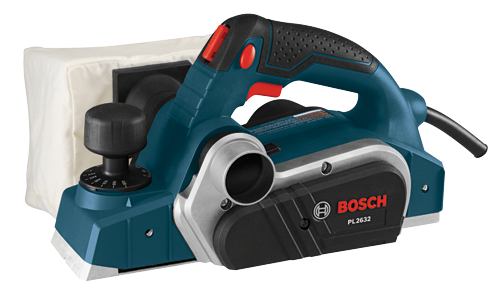

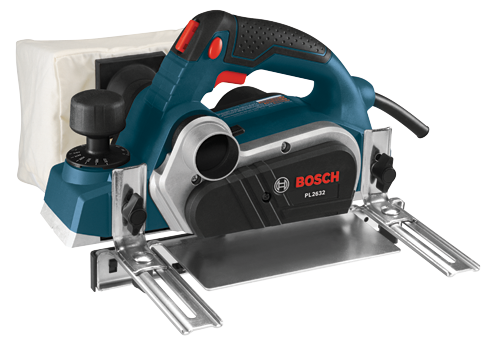

The Bosch PL2632K 3-1/4 In. Planer Kit features a tool with a 6.5 Amp motor that produces 16,500 RPM for fast stock removal and smooth finishes. The aluminum front and rear shoes are precision-machined together for accuracy, and the tool has a machined groove for chamfering. The tool also provides a spring-loaded stand that elevates the planer to protect the blade and the tool-resting spot. Equipped with reversible Bosch Woodrazor micrograin carbide blades, the Bosch PL2632 gives users the option of a two-blade system to accommodate high-speed steel blades (optional accessories are required). The dual-mount guide fence can be mounted on either side of tool, and its plastic overshoe prevents marring of door or workpiece face. The tool's ambidextrous lock-off release button helps prevent avoid accidental starts, and it has a lock-on button for extended operation, a combination that is unique to Bosch planers. The chip-ejection switch can be moved to discharge the shavings left or right, and dust ports are located on both sides of the tool to accommodate a large shavings bag. This planer is built with a poly micro-V drive belt for enhanced belt durability and a ball-joint cord swivel for enhanced ease of positioning the tool and cord.
