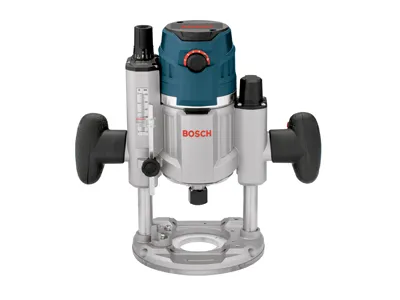

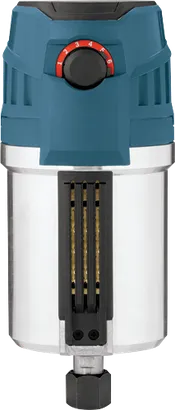

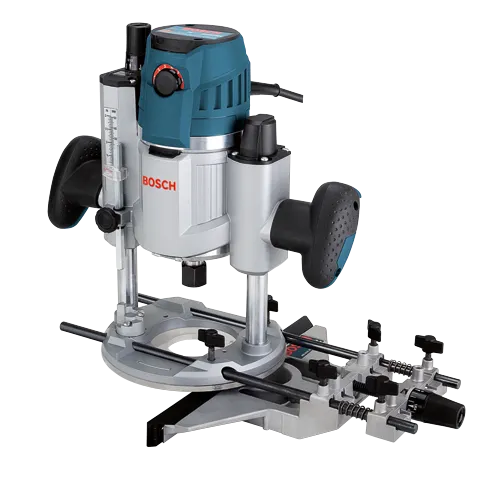

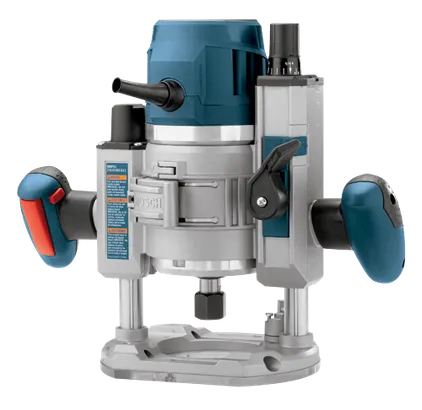

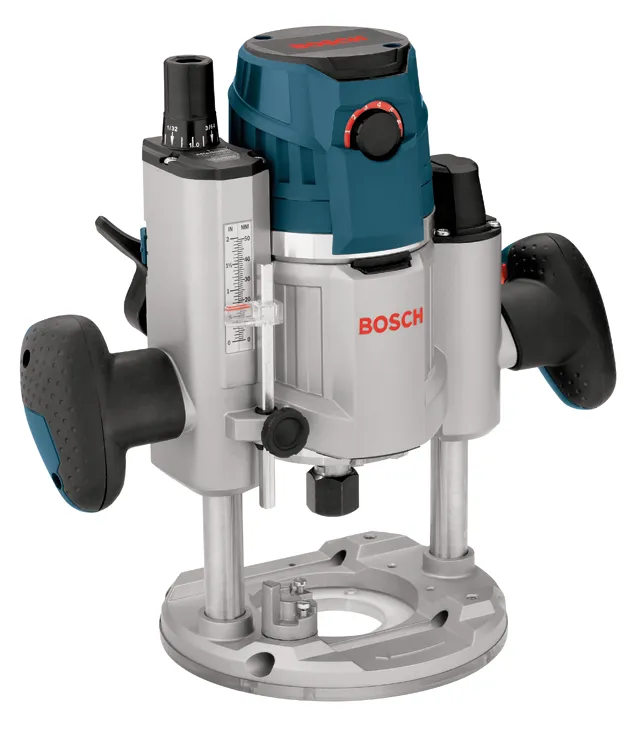

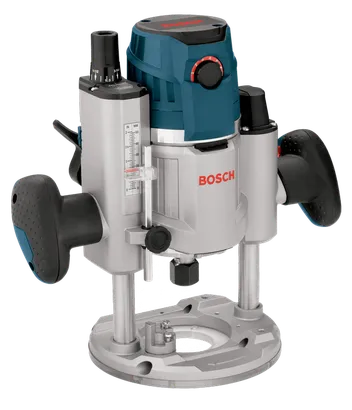

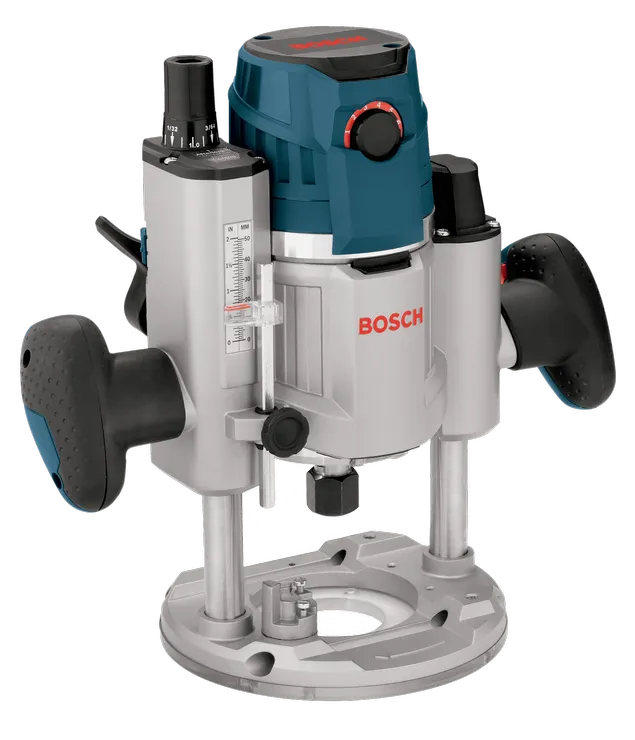

MRP23EVS Professional
Plunge Routers
2.3 HP Electronic Plunge-Base Router

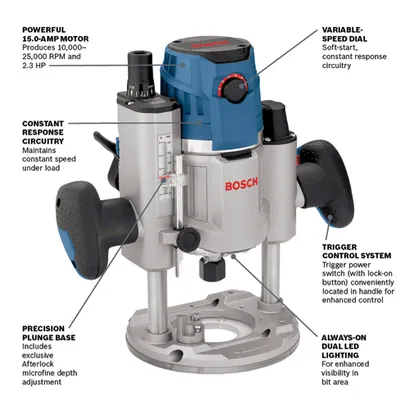

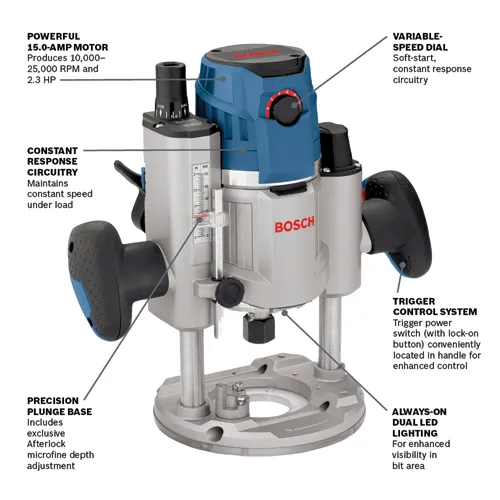

- Trigger-control system – trigger power switch located in handle for enhanced control
- Powerful 15 Amp motor – produces 10,000 to 25,000 RPM and 2.3 hp
- Precision-centering design – makes it easy to keep bit on outline

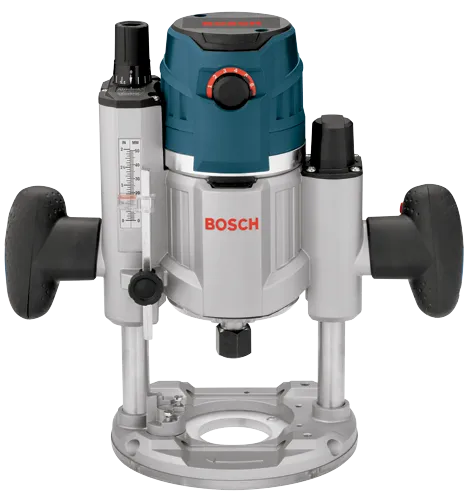

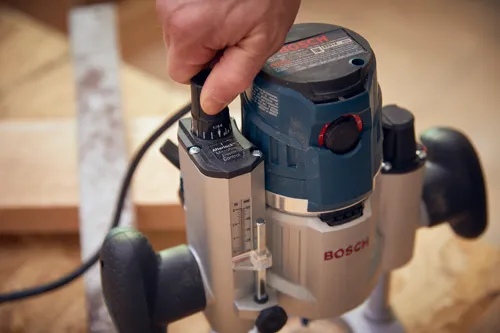

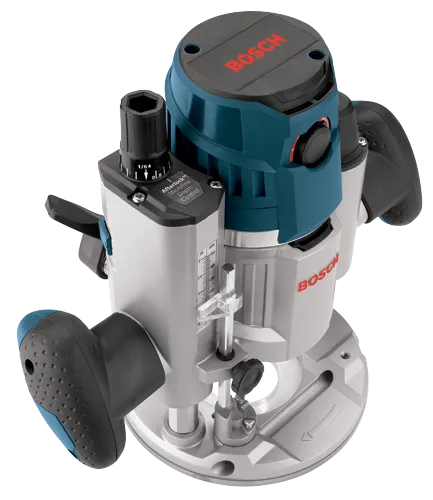

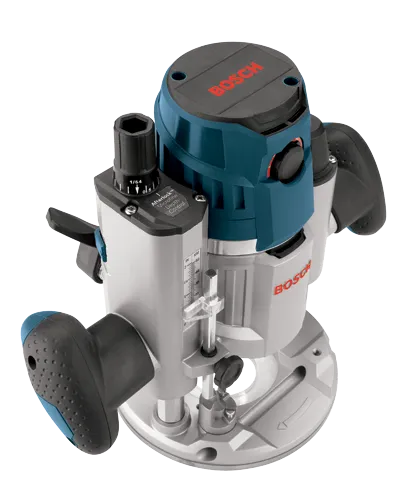

- Afterlock plunge-base depth adjustment – easy, precise adjustments at any plunge setting
- Constant Response circuitry – maintains constant speed under load
- Soft-start function – reduces start-up torque
- Always-on LED lighting – for enhanced visibility in bit area
- Two-stage quick clamp system – for fast tool-free conversion

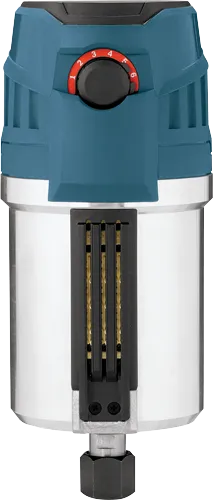

- Variable-speed dial – for matching speed to workpiece and task
- Contoured soft grip handles – for enhanced control and comfort
- Cord swivel – for added mobility
- Contoured soft grip handles – provides enhanced control and comfort
- Compatible with optional RA1129 Template Guide Adapter Set – for easy change of Bosch quick-release template guides and common threaded template guides
Technical data
The most important data |
|
|---|---|
| Amperage | 15 |
| Base Depth | 6.438 |
| Base Opening | 3-5/16” |
| Case Type | No Case Included |
| Collet Capacity | 1/2" and 1/4" |
| Dust Collection | No |
| Height in | 12 " |
| Length in | 6.75 " |
| Max. Tool HP | 2.3 |
| No Load RPM | 10,000-25,000 |
| Plunge Depth | 3" (75mm) |
| Rating | 120V AC |
| Variable Speed | Yes |
| Voltage | 120V |
| Weight | 12.6 lb |
| Width in | 12.6 " |
| Works With | Router Guide, RA1054, Template Guide System, RA1128 Template Guide Set, RA1129 Template Guide Adapter Set, Centering Device for Subbases and Attached Template Guides , RA1051, Dust Collection Attachments, RA1175 Edge-forming Dust Hood, RA1177AT Three-Hood Dust Hood Set, Fixed-Base / Router Table Base, MRF01 |
| Includes |

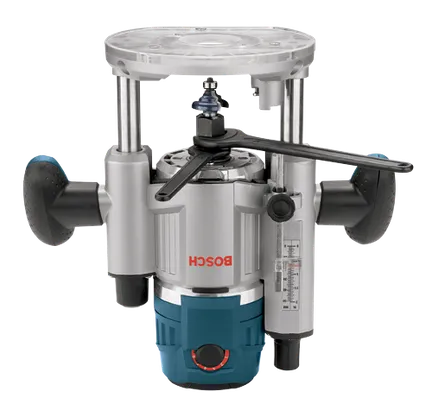

Plunge base (MRP01) 1/4" Self-Releasing Collet Chuck - 2 610 906 283 1/2" Self-Releasing Collet Chuck - 2 610 906 284 16mm Shaft Wrench -- 2 610 991 388 24mm Collet Nut Wrench - 2 610 992 417 |
MRP23EVS Professional: Further information
Product Highlights

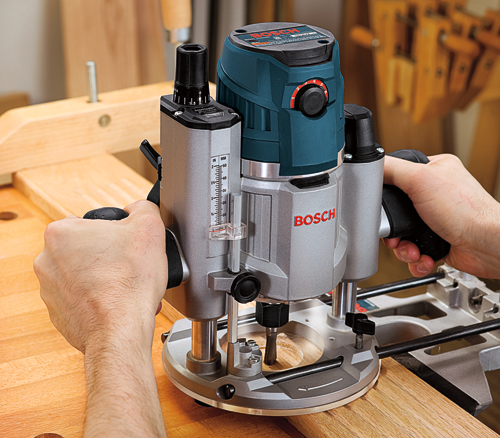

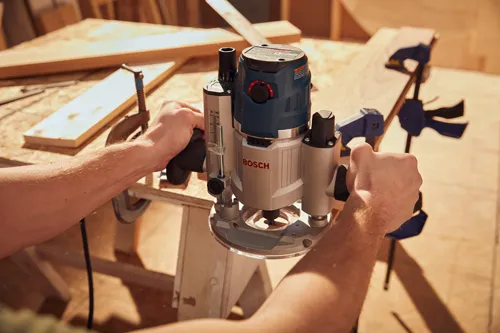

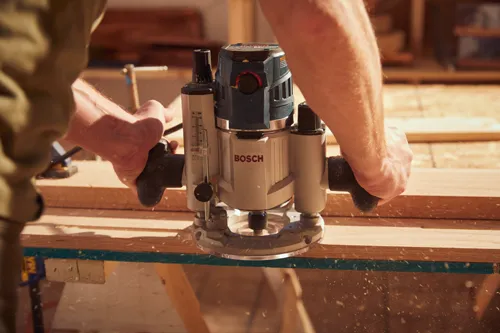

The Bosch MRP23EVS 2.3 HP Electronic Plunge-Base Router delivers greater control because of its trigger-controlled power system, which has a power switch in the plunge-base handle. The Afterlock microfine bit-depth adjustment fine-tunes at any plunge setting, and an adjustable turret stop makes it easy to set any cumulative depth. With a smooth plunge action and a spring-lock plunge lever, this router gets accurate results. It has a 15 Amp motor and adjustable speed settings. The variable-speed dial allows the operator to match the speed to the material. Constant Response circuitry delivers a constant speed throughout the cut. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices.
