JS572EK Professional
Jig Saws
7.2 Amp Top-Handle Jig Saw Kit
- Precision Control™ II double-roller system – minimizes blade deflection for excellent cut precision

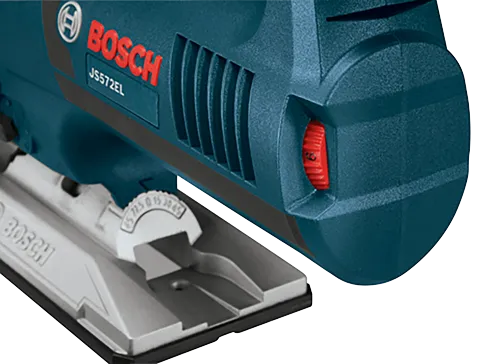

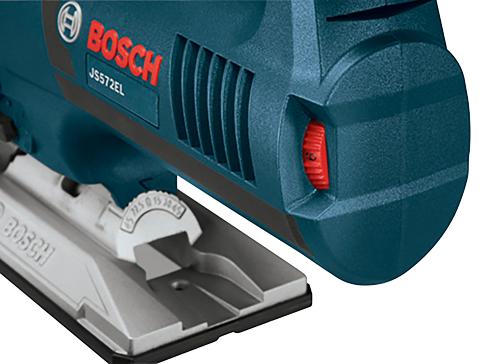

- Large die-cast aluminum footplate – tool-free alteration for fast-and-easy bevel adjustments
- Powerful motor – has a 7.2 Amp rating, highest in class to easily handle heavy loads
- Variable-speed control – includes a dial to set max speed and accelerator trigger to control operating speed
- Constant Response circuitry – for consistent performance under load
- Multi-directional blade clamp – superior grip of T-shank blades (does not accept U-shank blades)
- Bright LED lighting with on/off switch – for enhanced visibility of cutting area
- Dust blower with on/off switch – keeps the cut line visible and free of dust
- Aluminum gearbox with insulated cover – provides tool durability
- One-Touch blade-change system – fast blade insertion and ejection lever; no need to touch hot blade
- Four orbital-action settings – varied blade strokes
- Fully counterbalanced low-vibration mechanism – for smooth operation
Technical data
The most important data |
|
|---|---|
| Amperage | 7.2 |
| Bevel Angle Range | 45° |
| Case Type | Heavy-duty plastic |
| Cutting Capacity- Soft Wood | 5-1/2" |
| Cutting Capacity-Aluminum | 0.875 |
| Cutting Capacity-Mild Steel | 0.375 |
| Dust Blower | Yes |
| Dust Collection | No |
| Height in | 8.5 " |
| Hertz | 60 |
| Jig Saw Blade Type | Jig Saw T-Shank |
| Length in | 9.188 " |
| Max. Bevel Capacity (°) | 45 |
| Max. Bevel Cut | 45° |
| No Load SPM | 800-3,000 |
| Rating | 120V |
| Stroke Length (in) | 1 |
| Variable Speed | Yes |
| Voltage | 120V |
| Weight | 5.5 lb |
| Width in | 4 " |
| Works With | Jig Saw Guide, JA1010, Dust Collection Attachment, JA1012, Steel Overshoe for Footplate, JA1011, Anti-Splinter Insert, JA1013 |
| Includes |

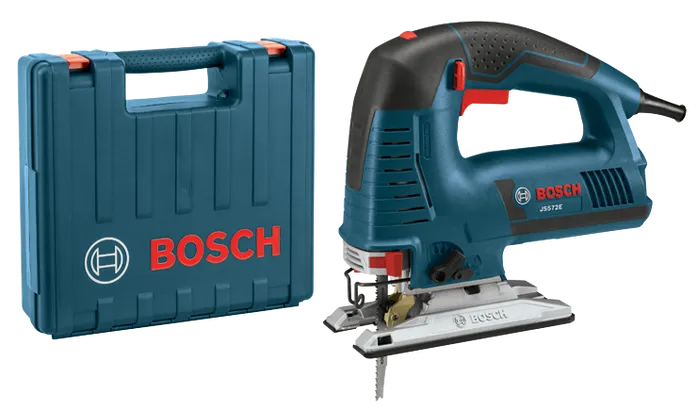

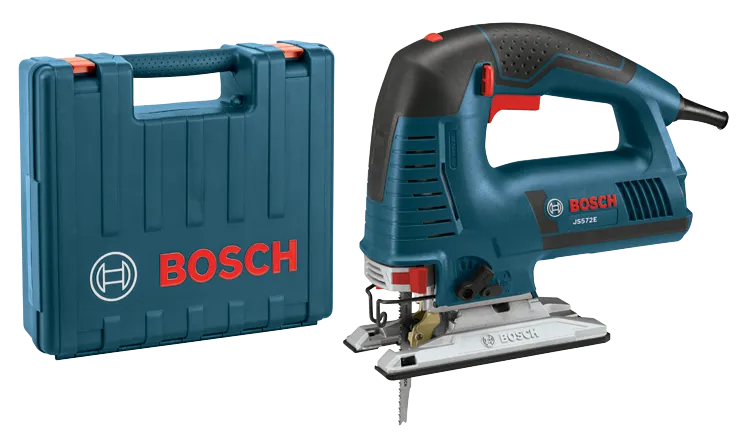

(1) JS572E 7.2 Amp Top-Handle Jig Saw (1) Non-Marring Overshoe (1) Anti-Splinter Insert (3) Assorted Jig Saw Blades (1) Carrying Case |
JS572EK Professional: Further information
Product Highlights
The Bosch JS572EK Top-Handle Jig Saw provides excellent cut precision, thanks to the innovative Precision Control™ II double-roller system. This construction minimizes blade deflection for true, exact cuts. Woodworkers and kitchen and bath installers are among the many user groups that will appreciate the best-in-class 7.2 Amp motor and variable-speed control. This jig saw is an excellent choice for curve-cutting and scallop-cutting and other cuts in a wide array of materials. Built with an aluminum gearbox with an insulated cover, this jig saw has a state-of-the art counterbalancing mechanism for low vibration and Constant Response circuitry for consistent speed under load. It has a large die-cast aluminum footplate with tool-free adjustment for fast-and-easy bevel adjustments. It also has LED lighting and a dust blower for max cut-line visibility. The jig saw has a toolless blade-change system. The multidirectional blade clamp provides superior grip of T-shank blades (Bosch jig saws do not accept U-shank blades).
