HDC200 Professional
Rotary Hammer & Hammer Drill Attachments

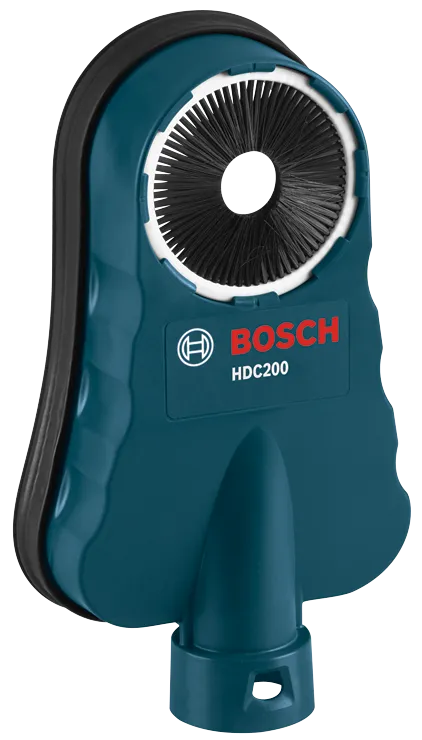

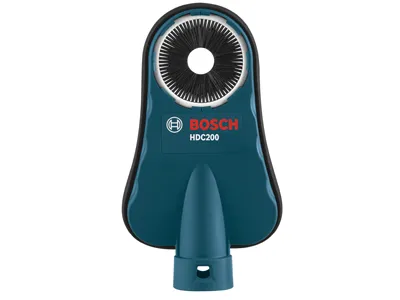

Universal Dust Collection Attachment

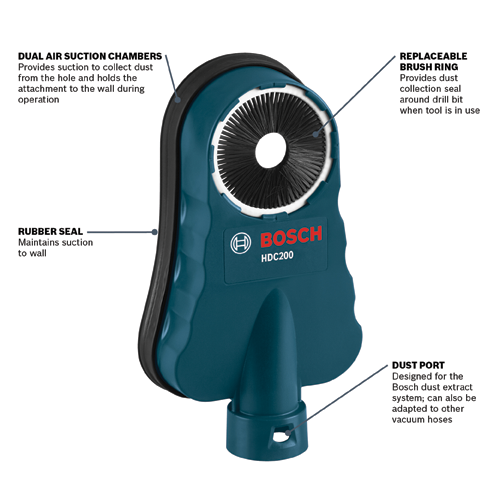

- Dual air chambers provide for both dust collection during use and provide suction to the wall

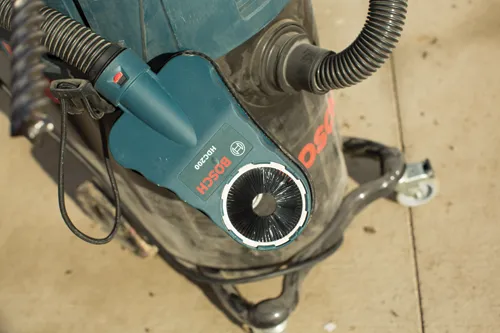

- Dust port fits Bosch 1-3/8 In. vacuum nozzle and can convert to 1-1/4 In./2 In. hose nozzles

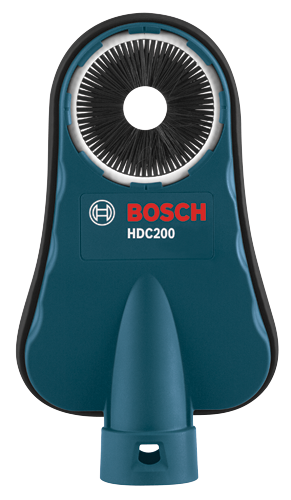

- Replaceable brush ring provides seal for multiple bit diameters
- Rubber seal maintains suction to wall
Technical data
The most important data |
|
|---|---|
| Height in | 3 " |
| Length in | 8 " |
| Material | plastic |
| Max Bit Diameter | 2-5/8" |
| Max. Hole Dia. - Core Bit | 2-5/8" |
| Overall Length in | 8 |
| Used on Model No. | Not tool specific. Attachment connects to a vacuum. |
| Weight | 0.7 lb |

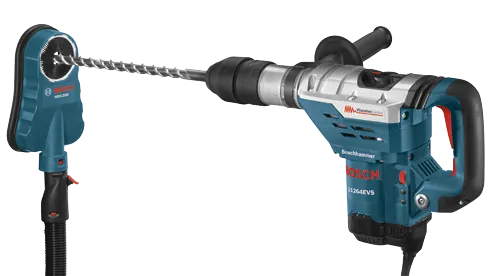

| Works With | Compatible Rotary Hammers and Hammer Drills, Virtually any rotary hammer or hammer drill model when used to drill holes into concrete or masonry type materials from ¼ In. to 1-3/8 In. diameter (Max. 2-5/8 In. if brush ring is removed). Not for metal drilling, Anti-Static Vacuum Hoses, VH1635A (by means of anti-static adapter included with that hose), VAC008, and most other 35 mm anti-static hoses, Other Vacuum Hoses, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 35 mm hoses, Adapter for 1-1/4" and 1-1/2" Hoses, VAC002 or VAC024, Adapter for 2-1/2" Hoses, VAC020 |
| Includes | Dust collection attachment with universal vacuum adapter |
HDC200 Professional: Further information
Product Highlights

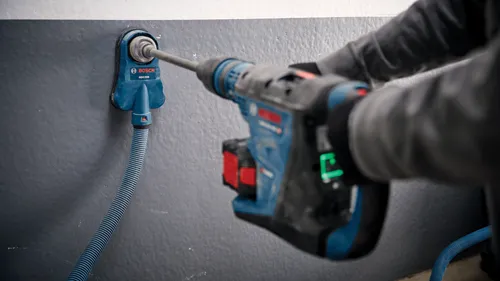

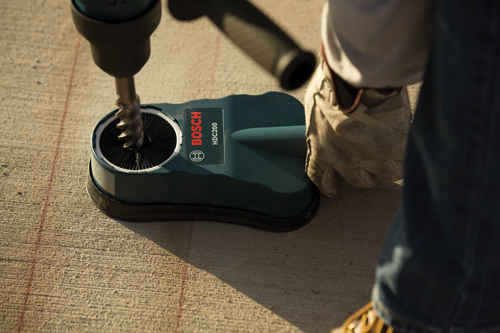

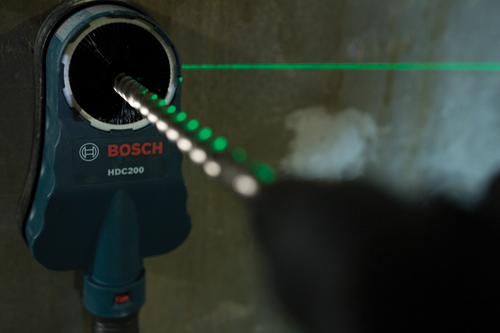

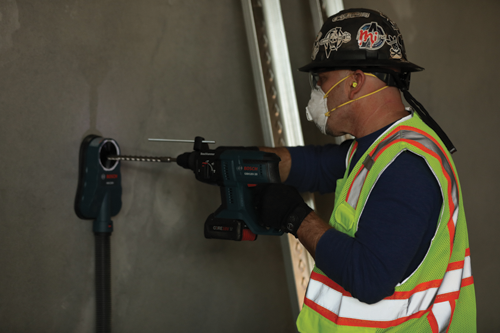

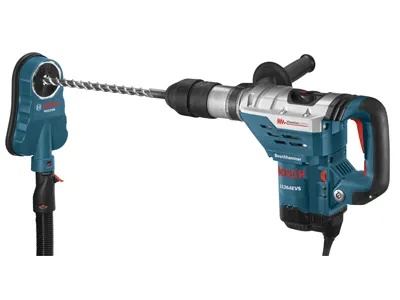

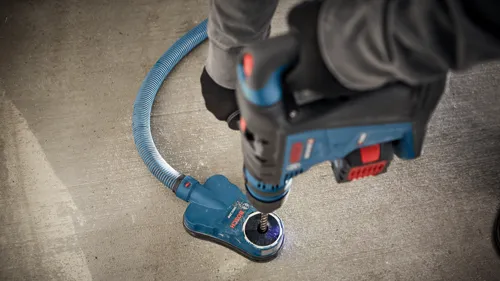

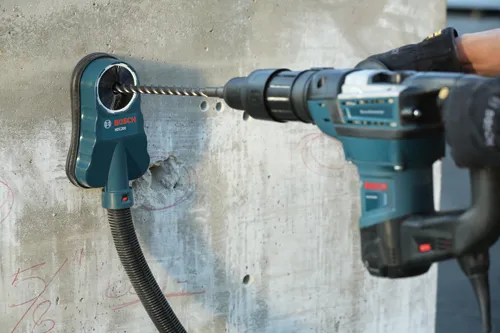

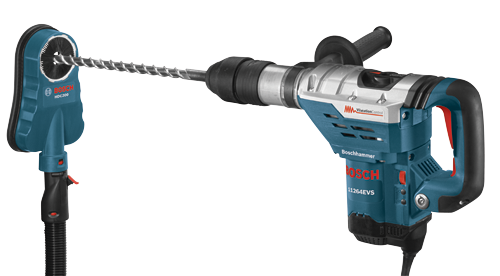

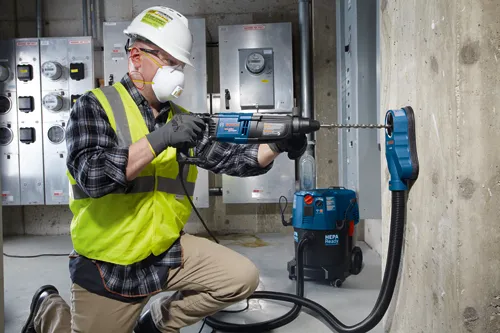

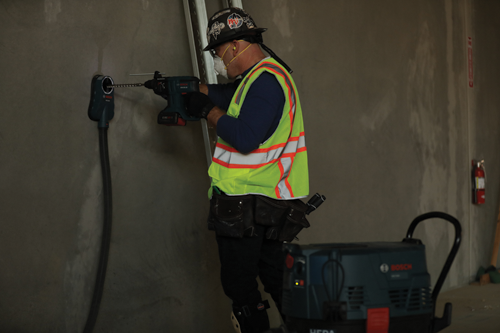

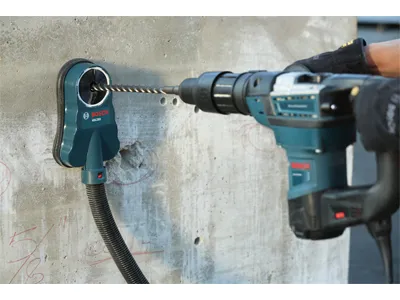

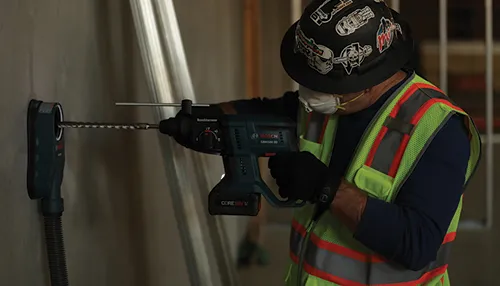

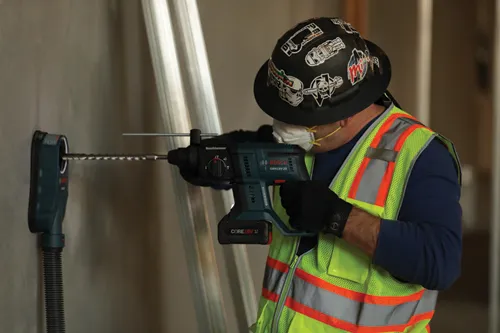

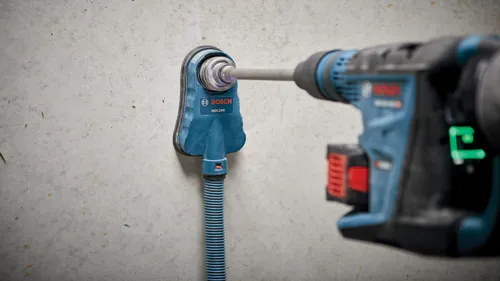

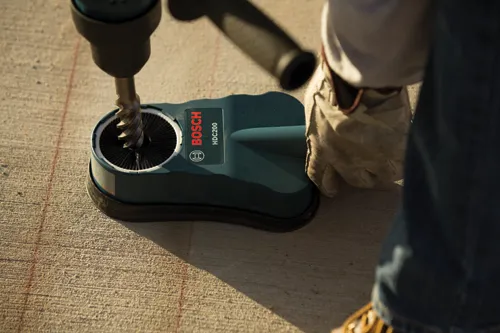

The HDC200 is a flexible dust collection attachment for SDS-plus® and SDS-max® hammers for drilling into concrete. It is optimized for drilling diameters from 5/8 In. to 1-3/8 In. but can accommodate up to 2-1/2 In. if the brush ring is removed. The attachment features two unique air chambers: one allows the drilling bit to pass through when drilling into the work surface. The second air chamber is designed to maintain suction to the wall during the drilling application. The dust port is designed for Bosch 1-3/8 In. vacuum nozzle but can be used with either 1-1/4 In. or 2 In. vacuum nozzles when used with the appropriate adapter. The system is universal and is designed to connect to a vacuum so that it can be used with any size hammer and can accommodate the full range of drill bit diameters and drilling depth.
