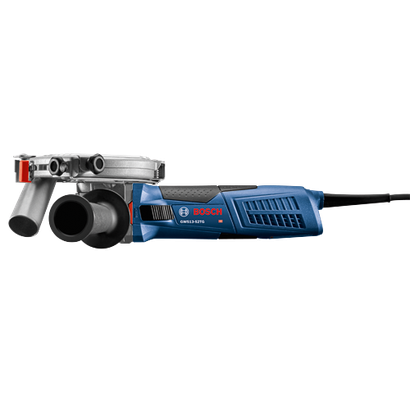

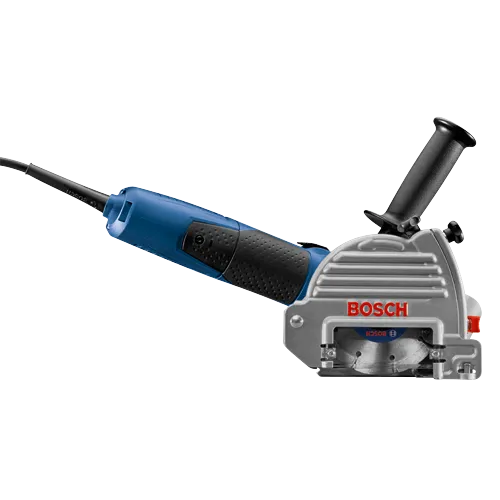

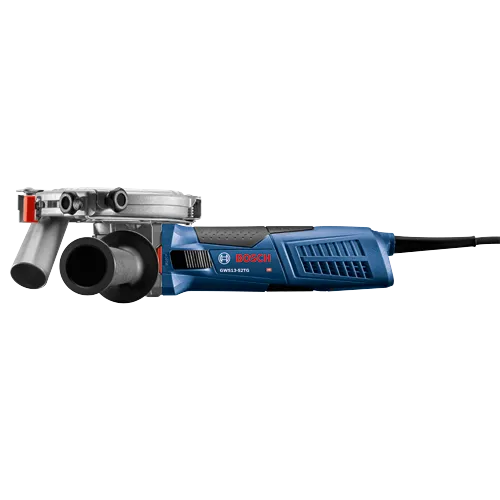

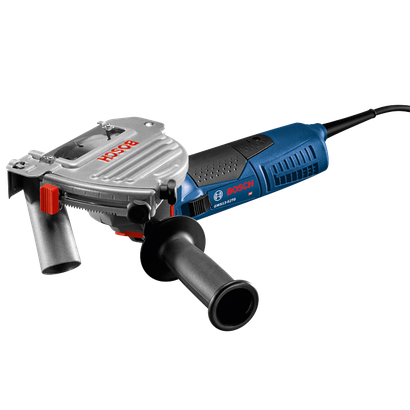

GWS13-52TG Professional
Tuckpointers

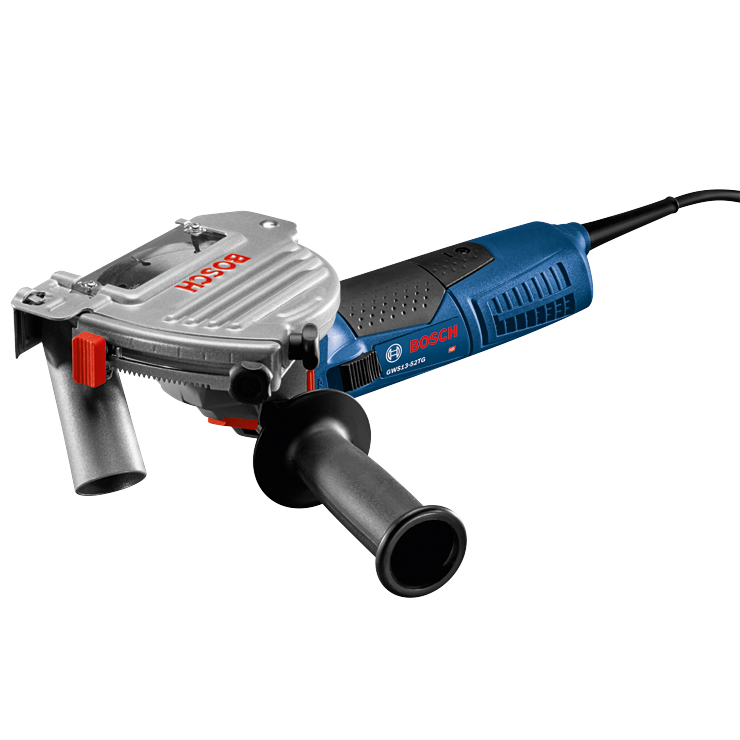

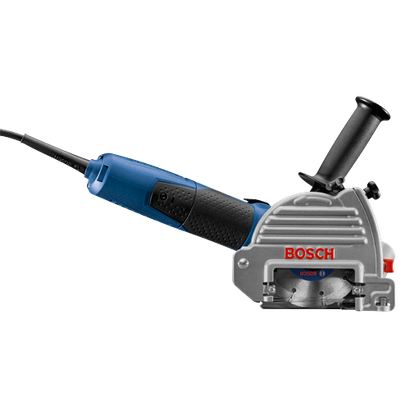

5 In. Tuckpoint Grinder

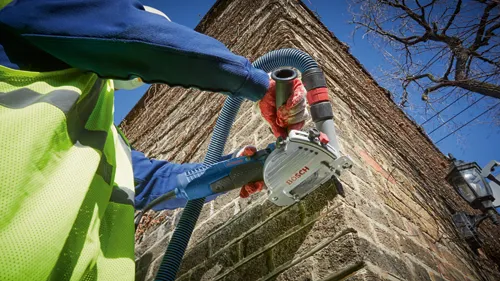

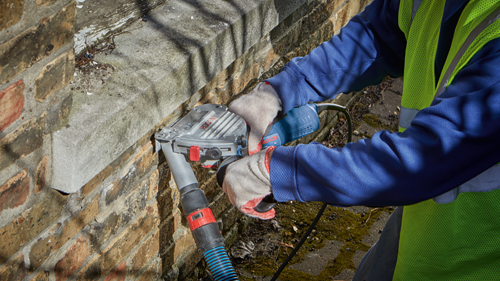

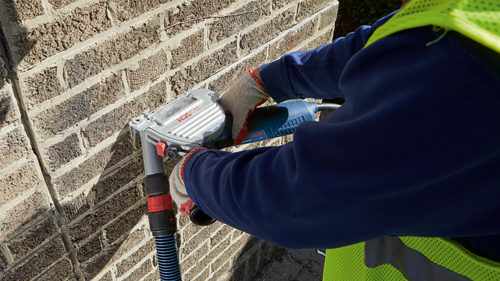

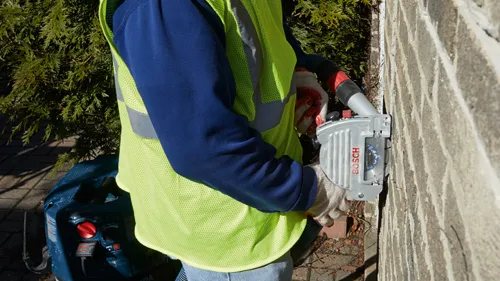

- 5 In. tuckpoint grinder – delivers all-in-one solution to move toward compliance with OSHA silica regulation
- Powerful grinder motor – features a 13-amp motor producing up to 9,300 rpm
- Epoxy-coated field windings – helps protect motor from dust and debris

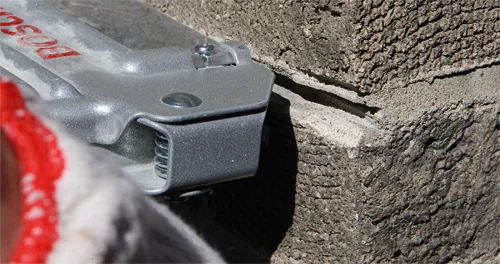

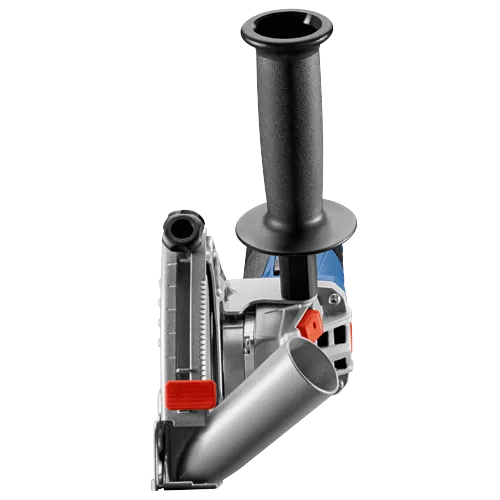

- Tuckpoint designed dust guard – spring loaded for plunge cuts and variable-depth adjustment help provide maximum dust capture and productivity
- Four-stage dust seals – helps protect gears from dust and debris for longer tool life
- Direct-motor cooling on grinder – allows for higher overload capabilities
- Constant-electronic monitoring – provides level operation and reliable speed under load
- Metal flange mounting collar – supports side load pressure on spindle

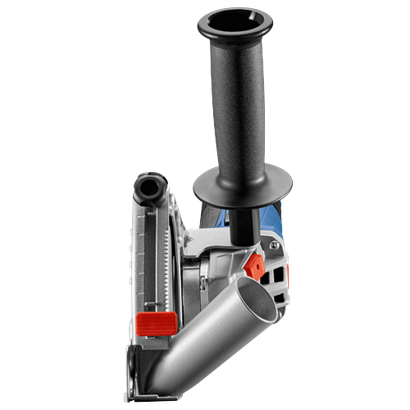

- Side handle – delivers tool control and additional user comfort

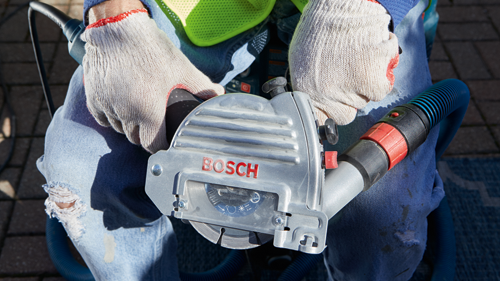

- Large viewing window on dust guard – makes it easy to see the line of cut when in operation
- Restart protection – helps prevent the tool from accidental start-up
- Service Minder brushes – ensure preventative maintenance
- Works with Bosch PRO+GUARD™ dust solutions – an end-to-end dust-collection system that helps users move toward OSHA silica dust compliance
Technical data
The most important data |
|
|---|---|
| Adjustable Handle Position | Yes |
| Amperage | 13 |
| Height in | 4 " |
| Length in | 15.3 " |
| No Load RPM | 9,300 |
| Overload Protection | Yes |
| Rating | 120V |
| Spindle Thread | 5/8 -11 UNC |
| Variable Speed | No |
| Voltage | 120V |
| Wheel Diameter in | 5" |
| Width in | 7.5 " |
| Works With | Cutting Dust Extraction/Collection Hoods, TG502, Anti-Static Vacuum Hoses, VH1635A (by means of anti-static adapter included with that hose), VAC008, and most other 35 mm anti-static hoses, Other Vacuum Hoses, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006, and most other 35 mm hoses, Adapter for 1-1/4" and 1-1/2" Hoses, VAC002 or VAC024, Adapter for 2-1/2" Hoses, VAC020 |
| Includes |
(1) GWS13-52TG 5 In. Tuckpoint Grinder (1) TG502 Tuckpointing Guard (1) Backing Flange (1) Lock Nut (1) Spanner Wrench (1) Side Handle (1) Sandwich Blade (1) Carrying Bag |
GWS13-52TG Professional: Further information
Product Highlights
The Bosch GWS13-52TG tuckpointer package pairs a 5 In. high-torque tuckpoint grinder with a dust guard designed specifically for tuckpointing. The tool features 13 amps for maximum power and 9,300 rpm for maximum torque. This model is equipped with epoxy-coated field windings and four stages of dust seals in the gear housing, as well as direct-motor cooling for maximum durability. It has metal flange mounting collar, a side handle and constant-electronic monitoring motor. The TG502 dust guard helps users move toward compliance with OSHA silica dust regulations. The guard includes a spring-loaded mechanism that provides maximum dust collection during plunge cuts into mortar. It also includes a variable depth adjustment to help maintain the desired cutting depth for maximum productivity in extended applications.
