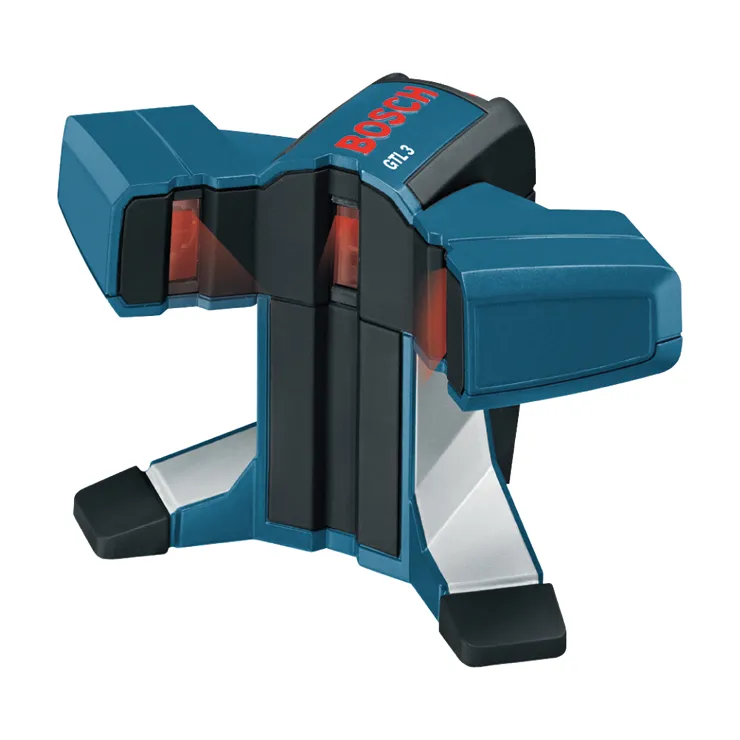

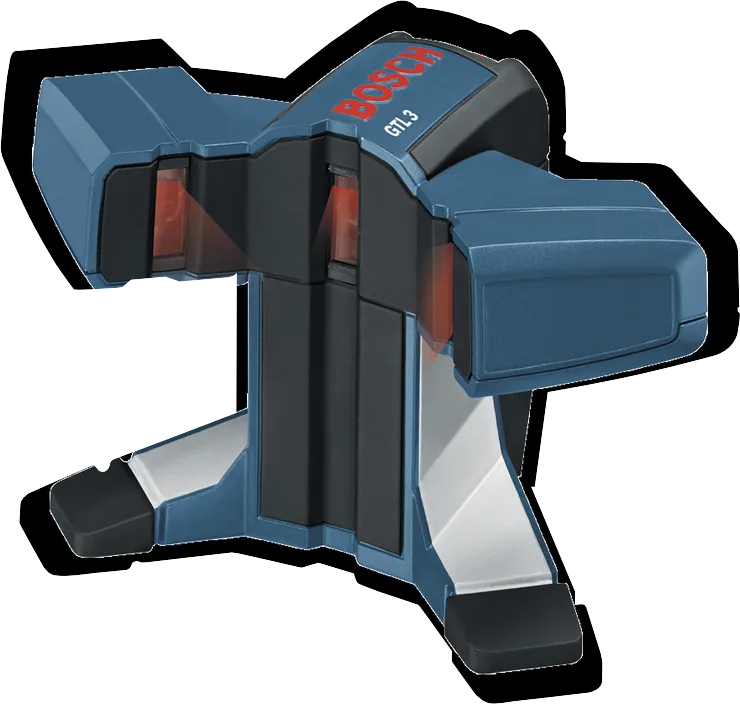

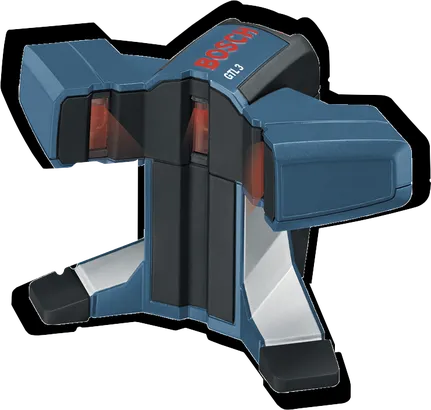

GTL3 Professional
Wall and Floor Covering Line Lasers
Wall/Floor Covering Laser

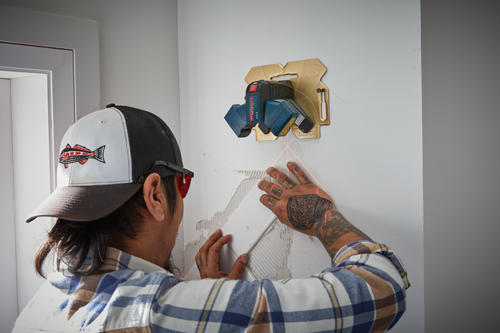

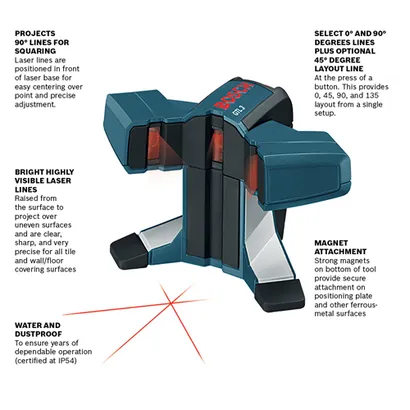

- Ideal for wall/floor covering layout – designed to tile installation and other installation easier and faster

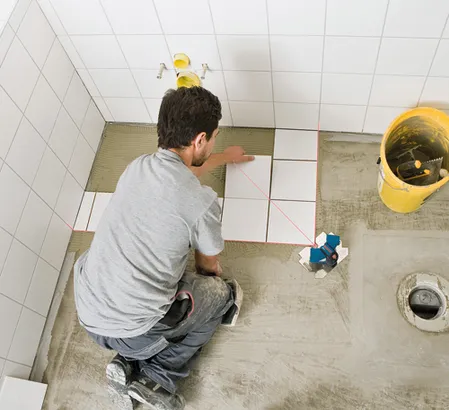

- 0° and 90° layout lines – helps to layout tile and to make squaring a room easier

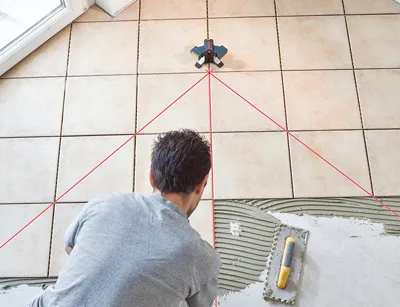

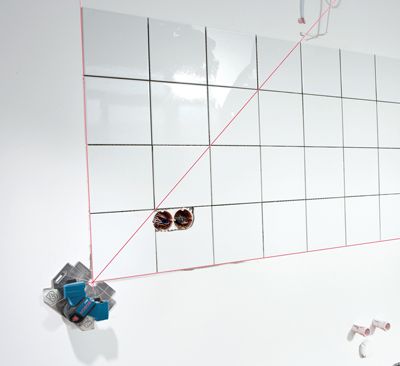

- 45° beam – provides an additional guide and is made to plan orientation for diagonal layouts
- Offset pivot point – sets a clear starting point in front of laser base for easy centering over point and precise adjustment

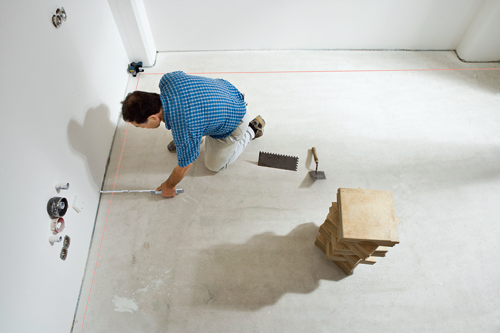

- Elevated beams – allows laser line to travel past uneven surfaces or obstructions

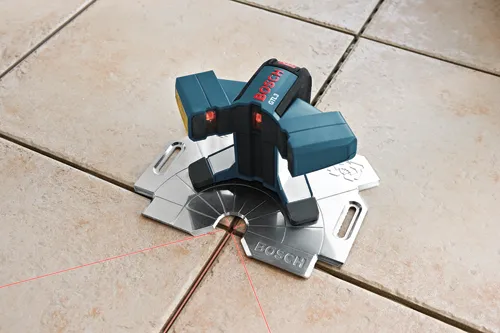

- Powerful magnets on the base – provide secure attachment on the included positioning plate, as well as on other ferrous-metal surfaces
- Single-button operation – select 0° and 90° degrees lines plus optional 45° degree layout line at the press of a button
- Versatile layout options – provides 0°, 45°, 90° and 135° layout lines from a single setup point
- Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Functions & key features
GTL3 Professional
Technical data
The most important data |
|
|---|---|
| Connected | No |
| Dimensions | 6.125" x 4" x 3.875" |
| Height in | 3.85 " |
| IP Rating | IP 54 |
| Laser Beam Color | Red |
| Laser Diode | Class II 635 nm, = 1 mW |
| Length in | 6.15 " |
| Leveling Type | Manual |
| Material | Durable plastic with overmold in key impact areas |
| Number of Beams | 3 |
| Operating Temperature | 14° F / -10° C ~1 22° F / 50° C |
| Range | Up to 65-ft. |
| Weight | 1 lb |
| Width in | 4 " |
| Includes |
(1) GTL3 Wall/Floor Covering Laser (1) Versatile Steel Positioning Plate (1) Laser Target (4) AA Batteries (1) Pouch |
GTL3 Professional: Further information
Product Highlights
The Bosch GTL3 Wall/Floor Covering Laser is designed to make tile installation and other installation easier and faster. Bosch asked flooring contractors how a laser layout tool could make their work easier, and the GTL3 is the solution. It generates layout lines at 0° and 90° from a single setup. The highly visible laser beams are elevated to go past several objects, and the laser has a strong magnet and a steel positioning plate for maximum versatility. Select 0° and 90° degrees lines plus optional 45° degree layout line at the press of a button. This layout laser provides 0°, 45°, 90° and 135° layout lines from a single setup point.
