GTC600C Professional
Cordless Inspection/Detection Devices

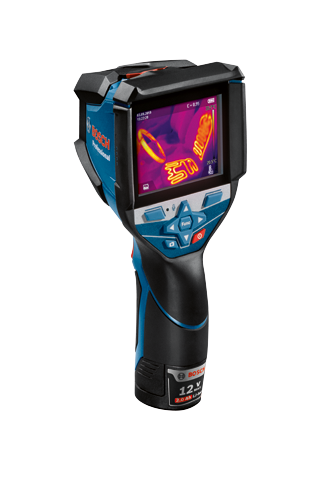

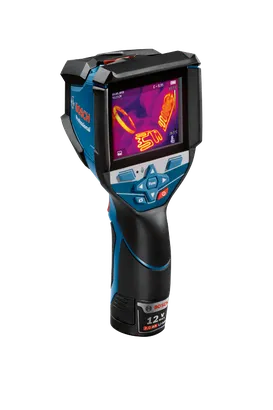

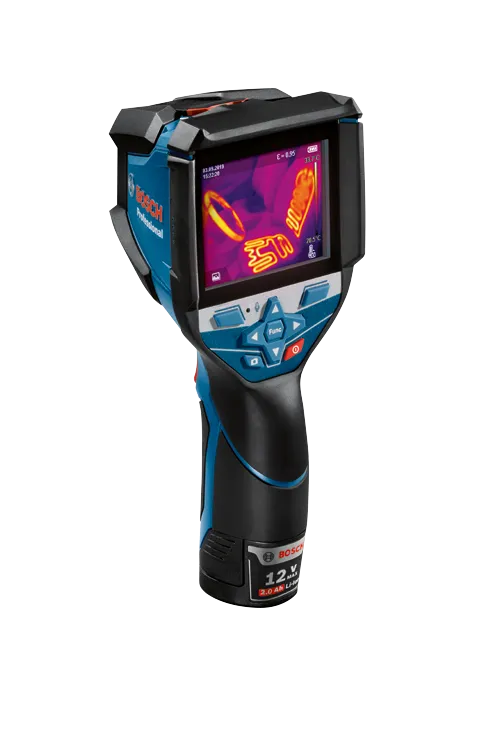

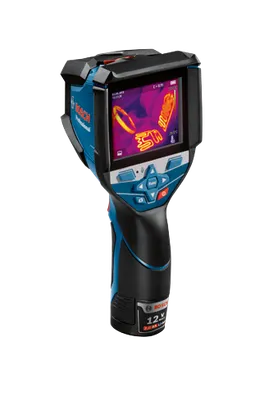

12V Max Connected Thermal Camera

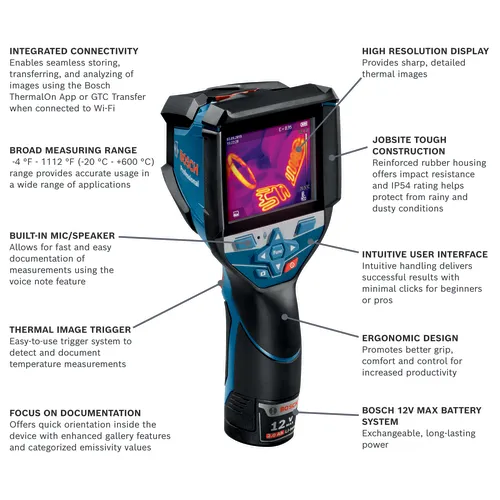

- High image definition – store up to 500 sharp, clear thermal images across a wide range of applications

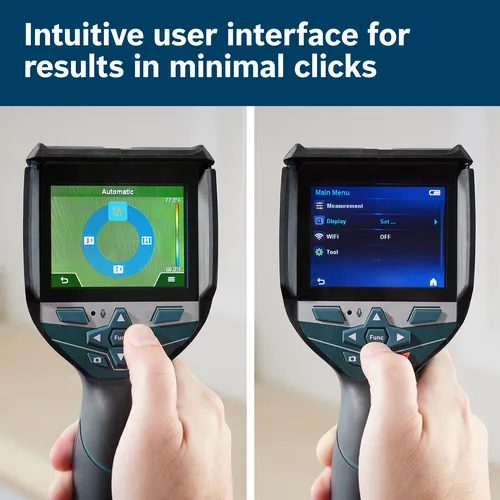

- Intuitive user interface – designed to deliver successful results in minimal clicks

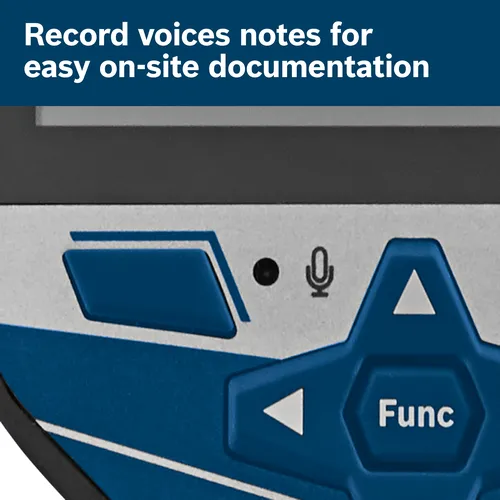

- Built-in mic/speaker – allows for smart voice note functionality to record, store and transfer up to 350 notes on the job
- Broad measuring range of -4 °F - 1112 °F (-20 °C - +600 °C) – for accurate usage in a wide range of applications

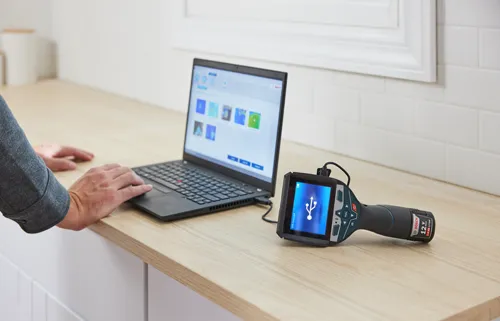

- Integrated connectivity – easily connect via Wi-Fi to use the Bosch ThermalOn App or GTC Transfer to analyze and document images, as well as create full reports
- Focus on documentation – for quick orientation inside the device with enhanced gallery features and categorized emissivity values

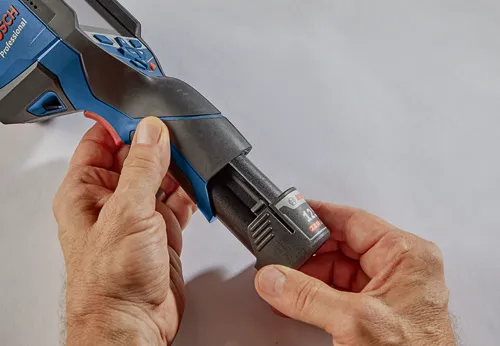

- Bosch 12V Max battery system – exchangeable, long-lasting power

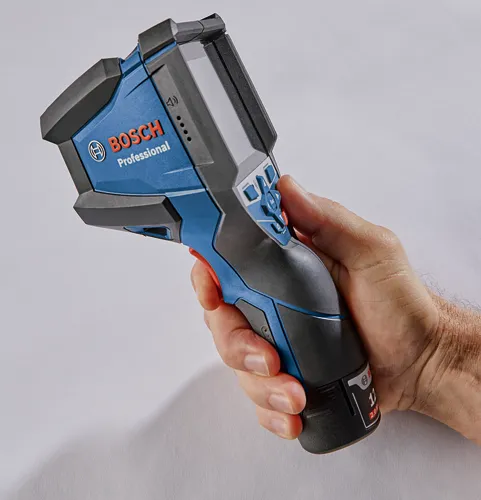

- Ergonomic design – promotes comfort and control for enhanced productivity
- Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
- Bosch 12V Max batteries and chargers are covered by a one year limited warranty - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Functions & key features
Technical data
The most important data |
|
|---|---|
| Battery | 12V Lithium-ion Battery |
| Height in | 9.09 " |
| IP Rating | IP 53 |
| Length in | 4.01 " |
| Weight | 4.01 " |
| Weight (lbs.) | 1.6 |
| Width in | 4.01 " |
| Works With | Batteries, BAT414, GBA12V30, GBA12V60, Chargers, GAL12V-20, GAL12V-40, GAX1218V30 |
| Includes |

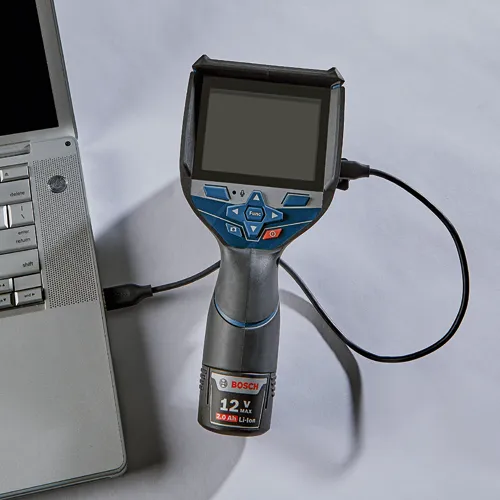

(1) GTC600C 12V Max Connected Thermal Camera (1) BAT414 12V Max Lithium-Ion 2.0 Ah Battery (1) GAL12V-20 12V Max Lithium-Ion Battery Charger (1) USB-A to USB-C Cable (1) Plastic Case |
GTC600C Professional: Further information
Product Highlights

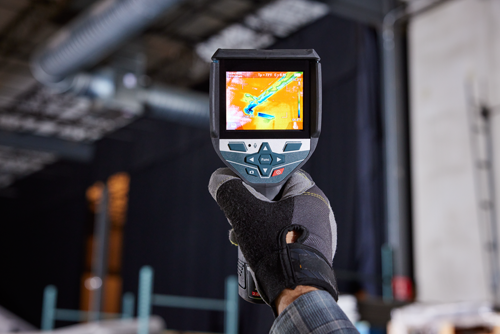

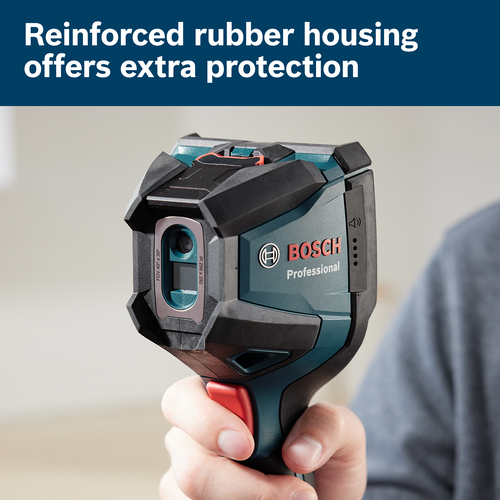

The Bosch GTC600C 12V Max Connected Thermal Camera removes the complexity from detecting temperatures with its easy-to-use, one-click functionality and fast and effortless documentation options. Its intuitive interface was thoughtfully designed to be user-friendly while delivering successful results with minimal clicks. With its high-resolution display, the camera provides sharp, clear thermal images and its measuring range of -4 °F - 1112 °F (-20 °C - +600 °C) allows for accurate usage in a wide range of applications. Enhanced color palettes offer a more customized user experience. The camera features an enhanced gallery, enabling seamless toggling between infrared and visual images, along with categorized emissivity values for convenient favoriting and quicker selection. Integrated connectivity technology enables seamless storing, transferring, and analyzing of images using the Bosch ThermalOn App or GTC Transfer when connected to Wi-Fi. The Voice Note feature facilitates easy recording, playback, deletion, and transfer of documentation using the built-in microphone, ensuring no detail is overlooked. The reinforced rubber housing offers extra protection and impact resistance for the display and sensor housing, while the device’s IP54 (does not include battery and battery compartment) rating provides water and dust protection. The thermal camera is efficiently powered by the Bosch 12V Max battery system for long-lasting reliability.
