GST18V-47N Professional
18V Jig Saws

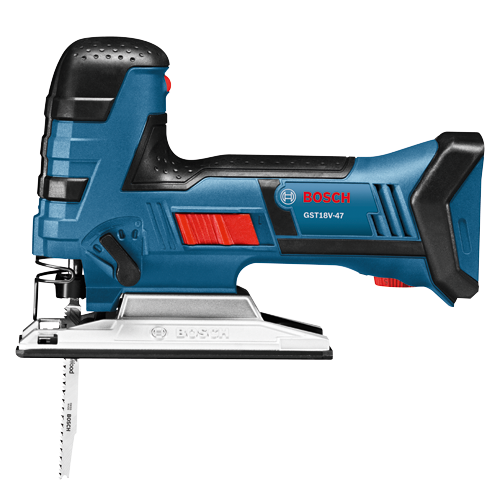

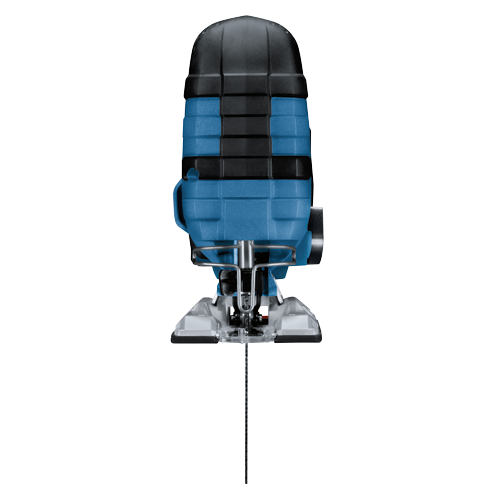

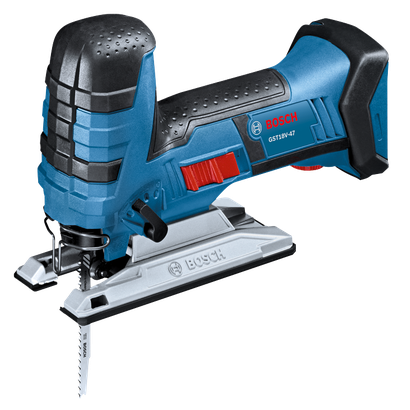

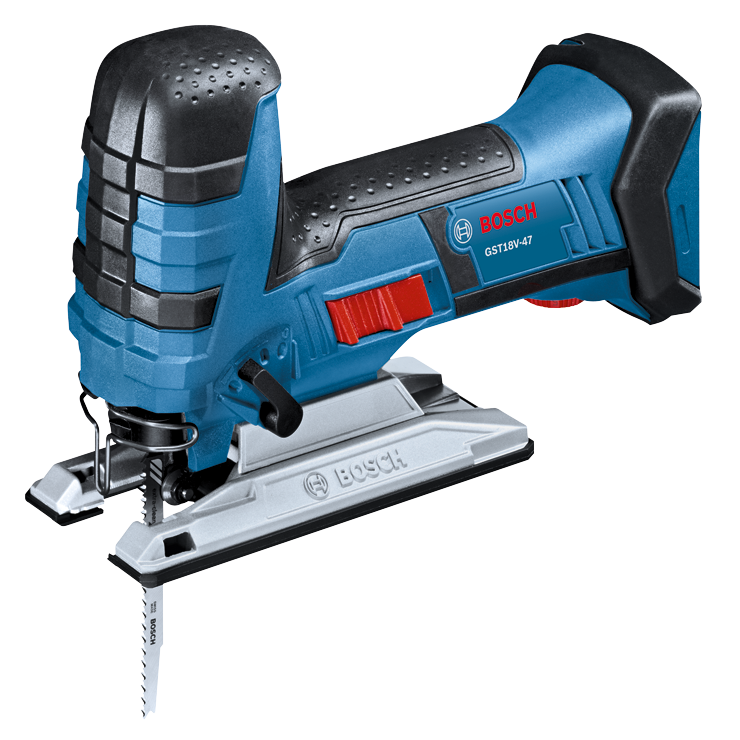

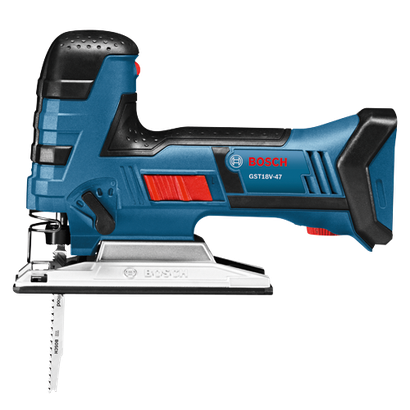

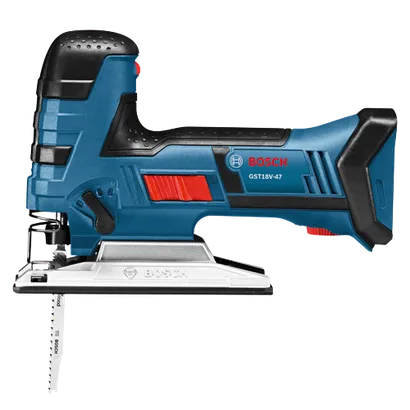

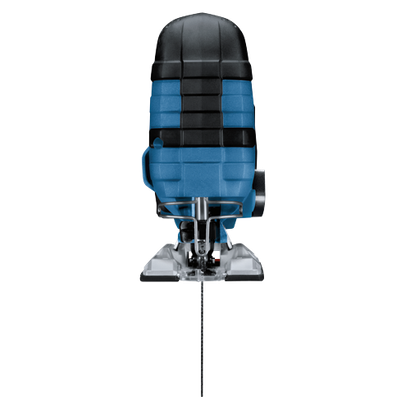

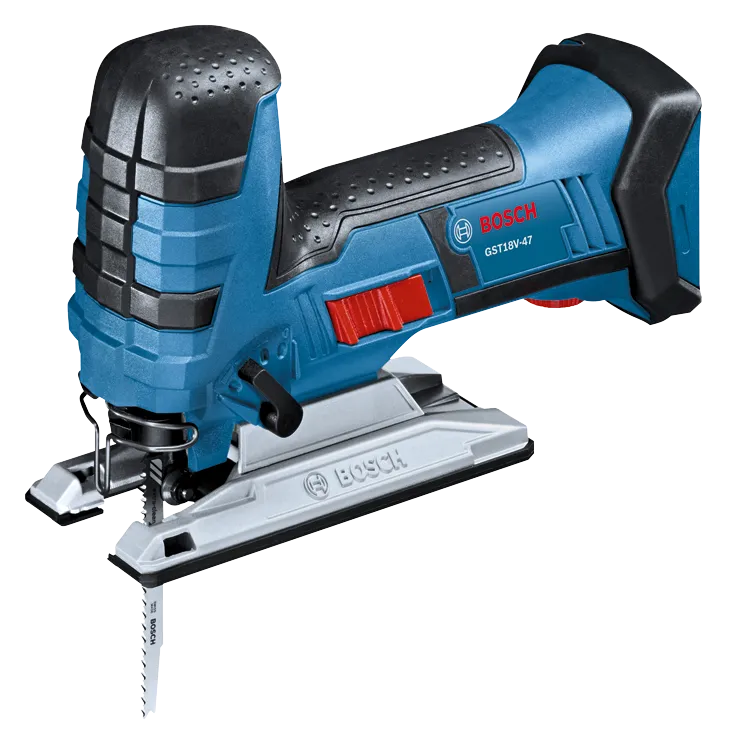

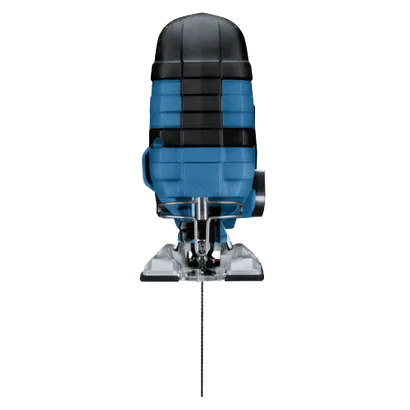

18V Barrel-Grip Jig Saw (Bare Tool)
- Powerful 18V jig saw design – delivers an easy-handling barrel grip with up to 2,700 no-load strokes per minute
- Extended upfront soft-grip areas – provides user comfort and control, with a small barrel-grip circumference
- Large die-cast aluminum footplate – includes a no-mar plastic overshoe for greater stability

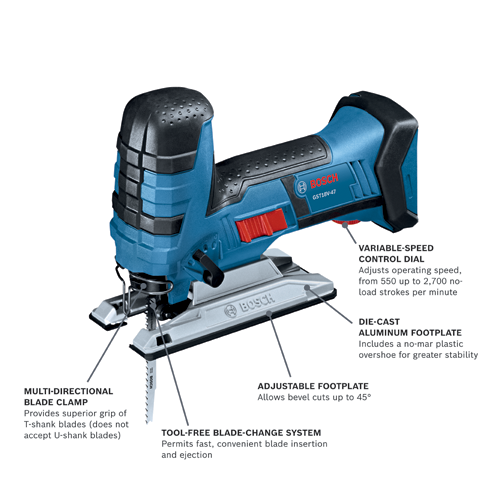

- Variable-speed control – provides a dial to control operating speed, from 550 up to 2,700 no-load strokes per minute
- Auto-stop – stops the stroke mechanism immediately after moving the switch to off for increased protection
- Long stroke length – has about a 1 In. stroke length for a cutting capability up to 4-1/2 In. in wood and up to 7/8 In. in aluminum
- Four orbital-action settings – delivers varied blade strokes
- Multi-directional blade clamp – provides superior grip of T-shank blades (does not accept U-shank blades)
- Aluminum gearbox with insulated cover – provides durability
- Tool-free blade-change system – permits fast, convenient blade insertion and ejection
- Dust blower – keeps the cut line visible and free of dust
- LED light – illuminates the cut line in dark work areas
- AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
- AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
- Bosch 18V cordless power tools are covered by a five year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Technical data
The most important data |
|
|---|---|
| Battery Chemistry | Lithium Ion |
| Battery/Charger | Not Included |
| Case Type | No Case Included |
| Charger | Not Included |
| Dust Blower | Yes |
| Height in | 6.6 " |
| Jig Saw Blade Type | Jig Saw T-Shank |
| Length in | 10.2 " |
| Max. Capacity in Steel | 5/16" |
| Max. Capacity in Wood | 4-23/32” |
| No Load SPM | 550-2,700 |
| Separate On/Off Speed Control | Yes |
| Stroke Length (in) | 1 |
| Variable Speed | Yes |
| Weight | 4 lb |
| Width in | 3 " |
| Works With | Jig Saw Guide, JA1010, Steel Overshoe for Footplate, JA1011, Anti-Splinter Insert, JA1013 |
| Includes |
(1) GST18V-47 18V Barrel-Grip Jig Saw (1) T-Shank Jig Saw Blade (1) Anti-Splinter Insert (1) Non-Marring Overshoe |
GST18V-47N Professional: Further information
Product Highlights
This 18V jig saw delivers powerful and manageable cordless cutting, with its ergonomic, well-balanced barrel-grip design. The GST18V-47 18V Barrel-Grip Jig Saw has extended upfront soft-grip areas and a small barrel-grip circumference for greater tool control. It provides a variable-speed dial – from 550 up to 2,700 no-load strokes per minute – to match the speed to material. The jig saw has a stroke length of about 1 In., delivering a cutting capability up to 4.7 In. in wood and up to 0.8 In. in aluminum. It has four orbital-action settings for cut control and auto-stop to stop the stroke mechanism. The saw also has a large die-cast aluminum footplate with no-mar plastic overshoe to help prevent damage to the workpiece. The cut lines stay visible due to the dust blower and LED light. It features a tool-free T-shank blade-change system.
