GSB18V-755CB25 Professional
18V Hammer Drill/Drivers

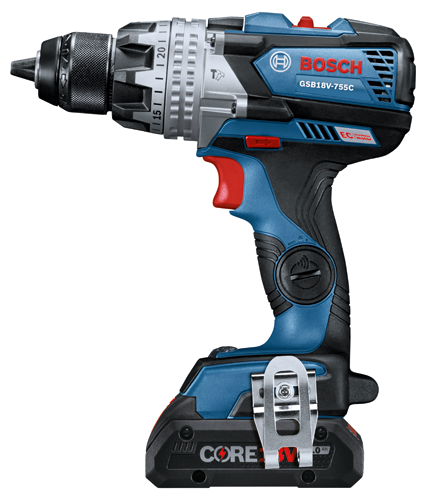

18V EC Brushless Connected-Ready Brute Tough 1/2 In. Hammer Drill/Driver Kit with (2) CORE18V 4.0 Ah Compact Batteries

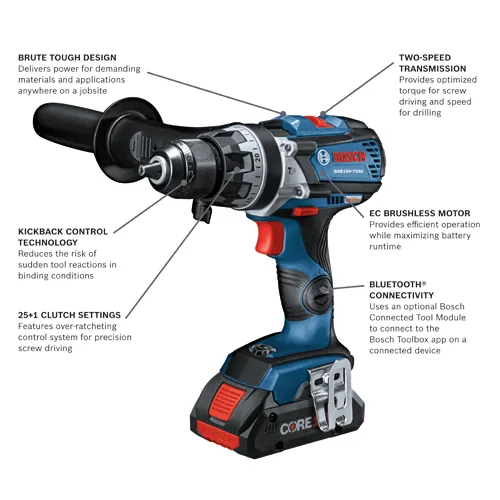

- Next-gen hammer drill – engineered with Bluetooth® connectivity (when the optional Connectivity Tool Module is installed), KickBack Control, 25+1 precision clutch and EC Brushless motor
- CORE18V battery – provides next-gen Li-ion 21700 cell technology in a lightweight, high-power battery with optimal performance
- Bluetooth® connectivity – which connects to an optional Connectivity Tool Module, linking the tool to the free Bosch Toolbox app on a connected device to customize settings and provide detailed feedback for optimized tool control
- KickBack Control – reduces the risk of injury from sudden rotational torque reaction in a bind-up scenario
- EC Brushless motor – efficient motor that delivers 755 In.-Lbs. of torque, 14% more than the previous generation
- Precision clutch with 25+1 settings – provides driving accuracy for reduced fastener damage
- Upgraded all-metal chuck – for more durability, along with first-rate bit retention
- Brute Tough design – robust hammer drill that provides ample power for tough jobs
- Great impact-to-weight ratio – weighs just 3.5 Lbs. (tool only, battery not included), but delivers 0-31,500 beats per minute (BPM)
- Outstanding control – variable drilling speeds for high-speed (0-2, 100 RPM) and high power (0 to 480 RPM)
- Sure-grip side-assist handle – helps prevent slipping and increases control during use
- Ergonomic grip zone – soft grip and improved design enables better handling and greater comfort
- Electronic motor and cell protection – helps protect the tool and battery from overloading conditions
- Longer belt clip – for a more secure hold
- Drill-area LED with feedback – illuminates dark zones; provides tool-status change feedback

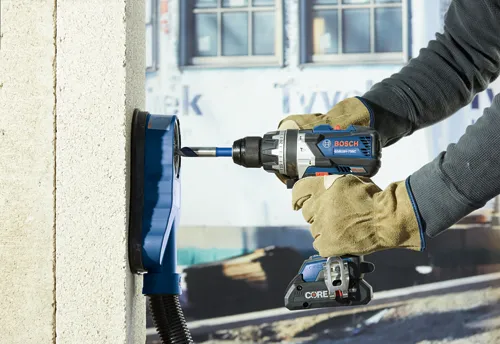

- Works with Bosch PRO+GUARD™ dust solutions – an end-to-end dust-collection system that helps users move toward OSHA Silica dust compliance
- Bosch 18V cordless power tools and 18V chargers are covered by a five year limited warranty; Bosch 18V batteries are covered by a three year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Technical data
The most important data |
|
|---|---|
| Battery Chemistry | Lithium Ion |
| Battery/Charger | Included |
| Case Type | Bag |
| Chuck Capacity | 1/2" Keyless Chuck |
| Chuck Design | Keyless |
| Chuck Size | 1/2 in |
| Height in | 8.4 " |
| Length in | 7.6 " |
| No Load BPM | 0-31,500 |
| No Load RPM | 0-2,100 |
| Reverse | Yes |
| Torque (in. lbs.) | 755 |
| Variable Speed | Yes |
| Weight | 3.5 lb |
| Width in | 3 " |
| Works With | Bosch Bluetooth® Connectivity Module, GCY42 (See tool manual for its connectivity/app features.), Dust Extraction/Collection Hood, HDC200 |
| Includes |

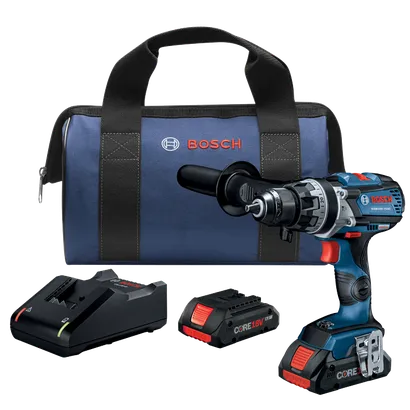

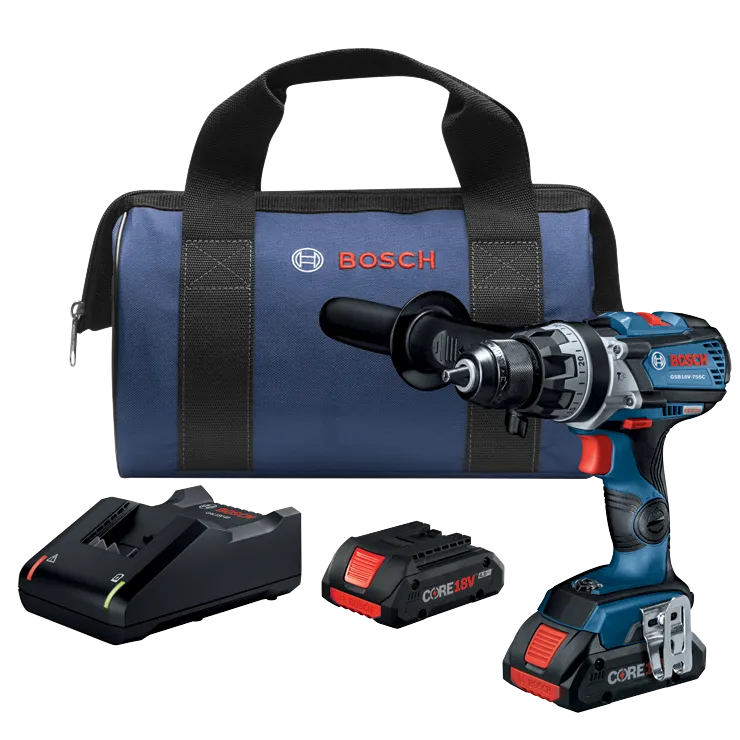

(1) GSB18V-755C 18V EC Brushless Connected-Ready Brute Tough 1/2 In. Hammer Drill/Driver (2) 18V CORE18V Lithium-Ion 4.0 Ah Compact Batteries (1) 18V Charger (1) Auxiliary Handle (1) 4x Bit Holder (4) Bits (1) Belt Clip (1) Carrying Bag |
GSB18V-755CB25 Professional: Further information
Product Highlights
This Bosch 1/2 In. hammer drill delivers next-gen innovation with Brute Tough power for demanding materials and applications anywhere on a jobsite. This GSB18V-755CB25 Hammer Drill/Driver kit features a Brute Tough Hammer Drill and two CORE18V batteries, each with next-gen Li-ion 21700 cell technology. The drill is Connected-Ready, allowing it to connect to an optional Connectivity Tool Module, linking the tool to the free Bosch Toolbox app on a connected device for enhanced tool control and detailed feedback. It has a powerful EC Brushless motor, that provides efficient power for up to 755 In.-Lbs. of torque and 0-31,500 beats per minute (bpm). It weighs only 3.5 Lbs. (tool only, not including battery). It has variable speed settings: high speed (0-2,100 rpm) and high power (0-480 rpm). The CORE18V batteries have next-gen Li-ion 21700 cell technology for optimal performance in a lightweight, high-power battery. The drill has KickBack Control, which reduces the risk of injury from sudden rotational torque reaction in a bind-up scenario. The 25+1 precision clutch reduces fastener damage. It has an all-metal chuck that provides durability, and it has a longer belt clip for a more secure hold.
