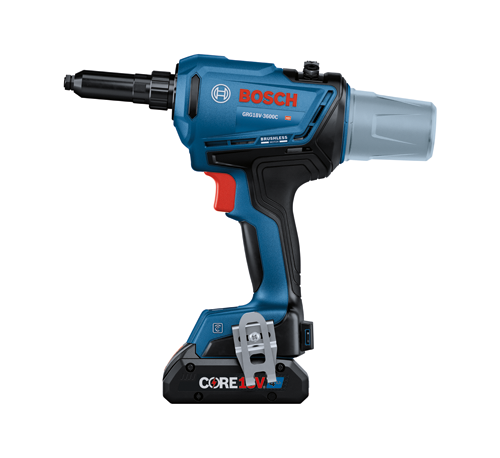

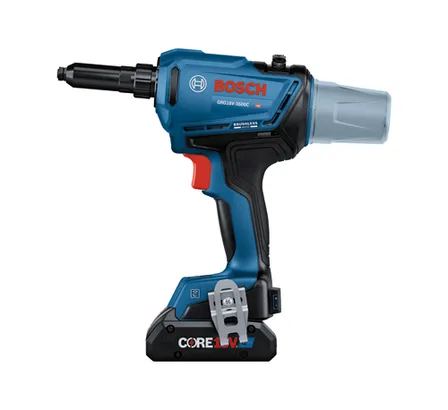

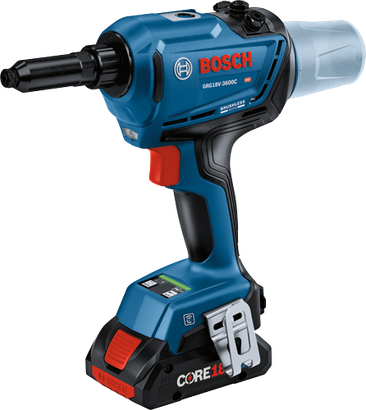

GRG18V-3600CB24 Professional
Specialty Tools
18V Brushless Connected Rivet Tool Kit with (2) CORE18V® 4 Ah Advanced Power Batteries

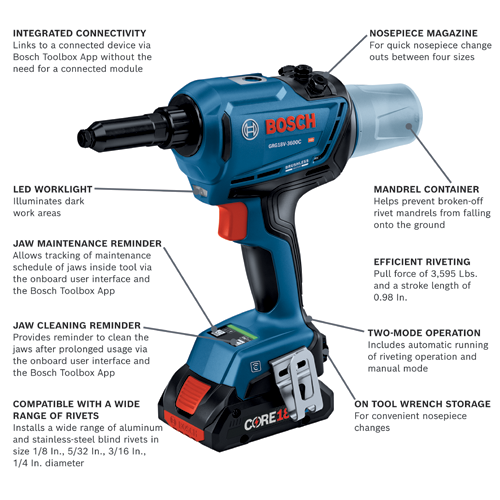

- Two-mode operation – includes automatic running of the riveting operation and manual mode for individual riveting control
- Easy to handle – designed to provide balanced handling
- Compatible with a range of rivets – installs aluminum and stainless-steel blind rivets in size 1/8 In., 5/32 In., 3/16 In., and 1/4 In. diameter
- Efficient riveting – offers a stroke length of 0.98 In. and 3,595 Lbs. of pull force
- Nosepiece magazine – easily accessible for quick nosepiece change outs between four sizes
- Mandrel container - helps prevent broken-off rivet mandrels from falling onto the ground
- Onboard user interface – provides maintenance reminders, tool status feedback and allows for changes between auto/manual modes
- Built-in connectivity – links to a connected device via Bosch Toolbox App without the need for a separate connected module
- Jaw Maintenance Reminder - allows tracking of maintenance schedule of jaws inside tool via the onboard user interface and the Bosch Toolbox App
- Jaw Cleaning Reminder - provides reminder to clean the jaws after prolonged usage via the onboard user interface and the Bosch Toolbox App

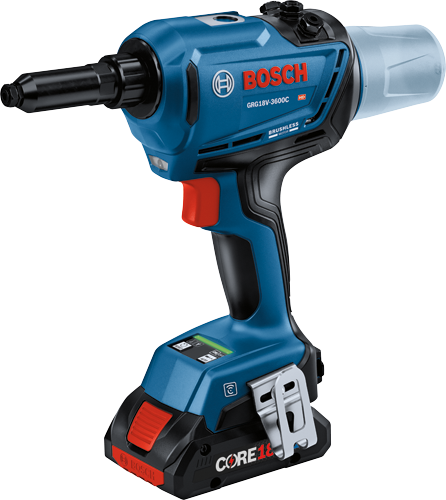

- Brushless motor - provides efficient power and outstanding runtime
- On-tool wrench storage - for convenient nosepiece changes
- LED worklight - illuminates dark work areas
- Bosch 18V cordless power tools and 18V chargers are covered by a five year limited warranty; Bosch 18V batteries are covered by a three year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Technical data
The most important data |
|
|---|---|
| Battery Chemistry | Lithium Ion |
| Chuck Size | Not Applicable |
| Height in | 9.6 " |
| Length in | 11.4 " |
| No Load RPM | 0-1,000 |
| Overall Length in | 11.4 |
| Pulling Force (lbs) | 3,595 |
| Stroke Length (in) | 1 |
| Weight | 3.5 lb |
| Weight (lbs.) | 3.5 |
| Width in | 2.6 " |
| Includes |

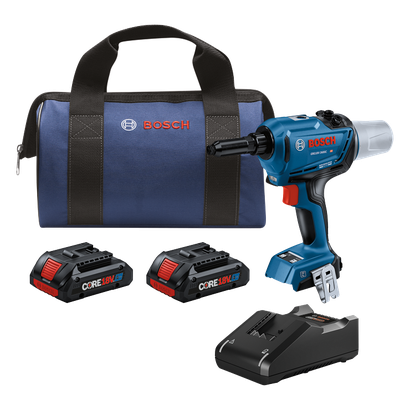

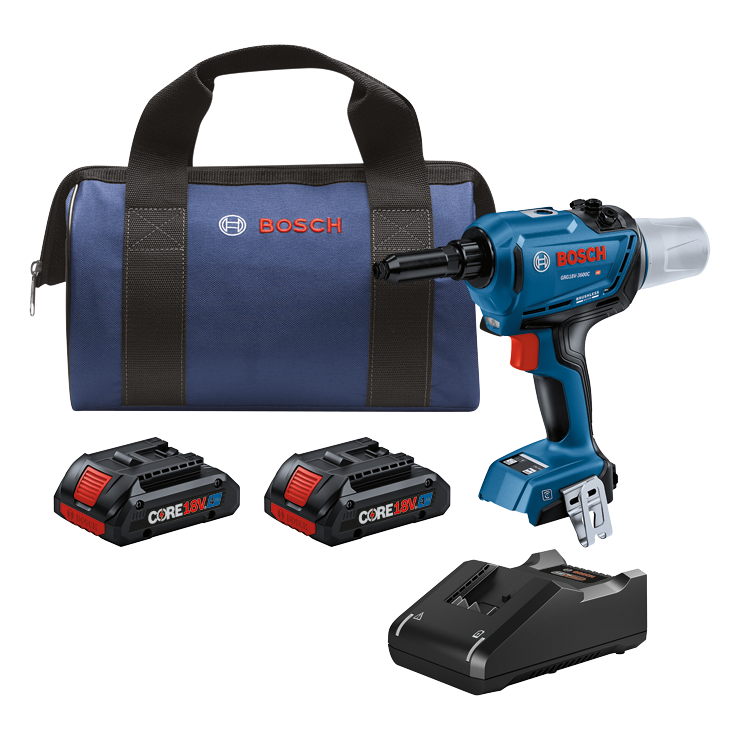

(1) GRG18V-3600C 18V Brushless Connected Rivet Tool (2) GBA18V40 18V CORE18V® Lithium-Ion 4 Ah Advanced Power Batteries (1) 18V Standard Charger (4) Nosepieces (1) Mandrel Container (1) Nosepiece Wrench (1) Belt Clip (1) Additional Clamping Jaw Set |
GRG18V-3600CB24 Professional: Further information
Product Highlights

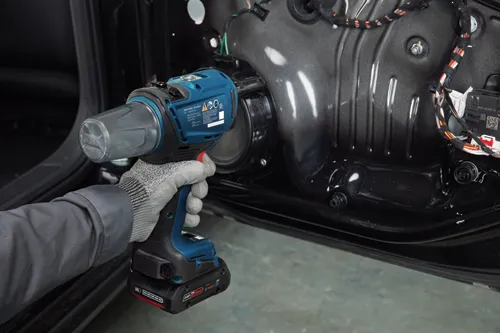

The Bosch GRG18V-3600C 18V Rivet Tool conveniently installs a wide range of blind rivets without changing internal tool components, which helps to get the job done faster. It installs a wide range of aluminum and stainless-steel blind rivets (1/8 – 1/4 In. diameter). The rivet tool also features two modes: automatic running of the riveting operation and manual mode for individual fastening control. It delivers a constant pulling force of 3,595 Lbs. This tool was designed to provide balanced handling. The rivet tool includes a nosepiece magazine, four nosepieces in different sizes and a nosepiece wrench. Each item is easily accessible on the upper part of the tool. It also features built-in connectivity, letting the user link to a connected device via Bosch Toolbox App to customize settings and receive detailed feedback. The Jaw Maintenance Reminder, accessible via onboard user interface or the App, allows tracking of the maintenance schedule of the jaws. The Jaw Cleaning Reminder, also accessible via onboard user interface or the App, provides a reminder for cleaning the jaws after prolonged usage. The mandrel container helps prevent broken-off rivet mandrels from falling onto the ground. The kit includes two CORE18V® 4 Ah Advanced Power Batteries and the 18V Standard Charger to stay power-ready on any job. This 18V rivet tool helps maximize productivity on the jobsite with quick and convenient rivet installation.
