GPL100-30G Professional
Point Lasers

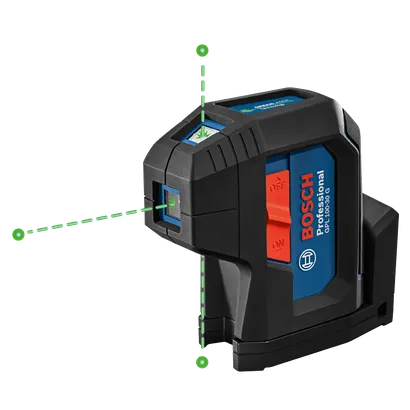

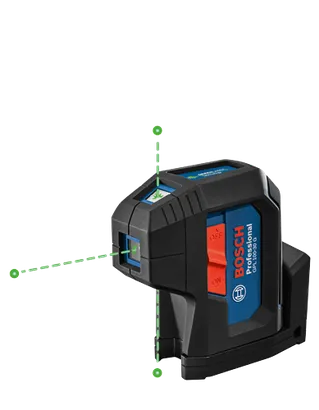

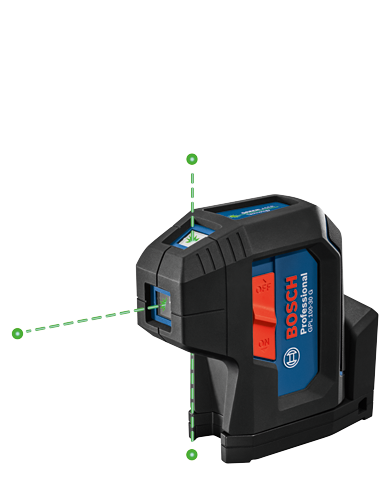

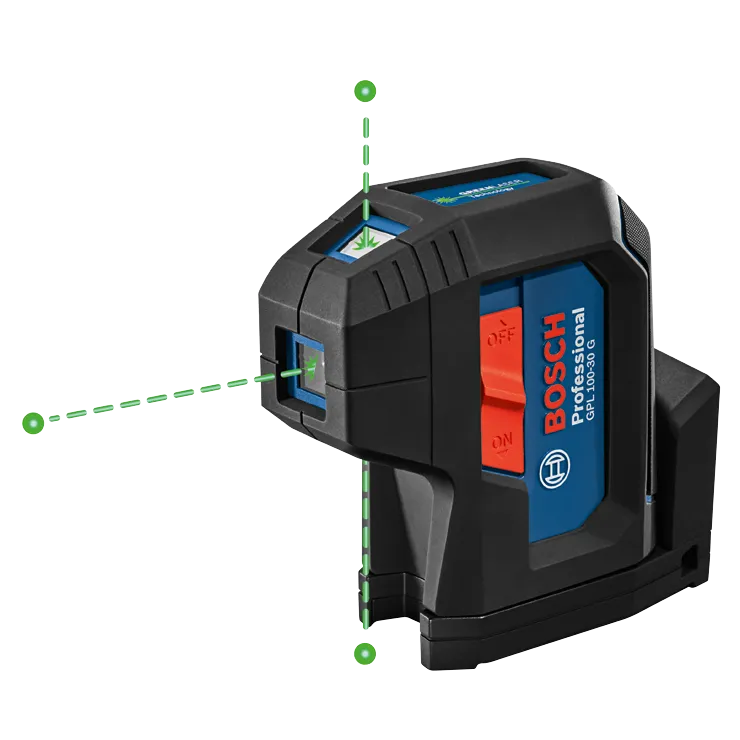

Green-Beam Three-Point Self-Leveling Alignment Laser

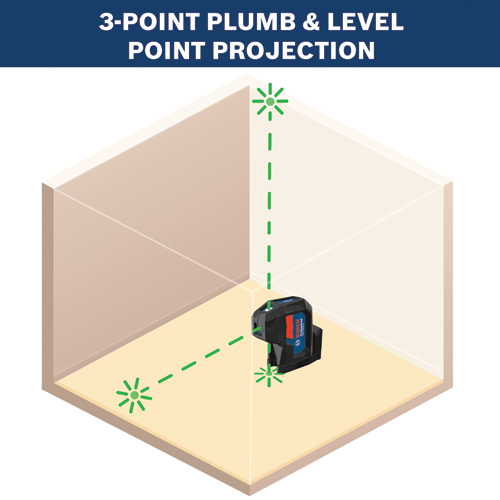

- Three-point plumb and level point projection – accurately transfers and aligns level, plumb, 90° and grade points
- Built-in VisiMax™ technology – monitors power consumption to maximize line visibility and extend battery life

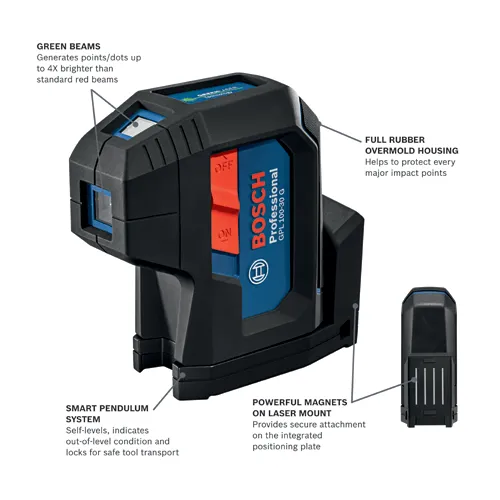

- Bright green-beam laser – up to 4X brighter than standard red beams
- Full rubber overmold housing – helps to protect every major impact point, with a design similar to a roll cage
- Smart Pendulum System – allows tool to self-level, and it indicates out-of-level condition
- Secure laser transport – after switching off, pendulum is locked, plus 360 degree rotation for extra protection

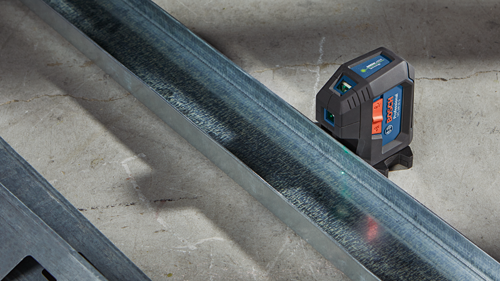

- Integrated multipurpose laser mount – positions and mounts with magnets or threaded mounts (1/4 In.-20)
- Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Functions & key features
Technical data
The most important data |
|
|---|---|
| Case Type | Hard plastic |
| Height in | 4.5 " |
| IP Rating | IP 65 |
| Laser Beam Color | Green |
| Laser Diode | Class 2, 500-540 nm |
| Length in | 4.5 " |
| Leveling Type | Self-Leveling, Up to 4° |
| Material | Plastic |
| Mount Threading | 1/4-20 |
| Number of Beams | 3 |
| Range | Up to 125-ft. |
| Weight | 0.77 lb |
| Width in | 2 " |
| Works With | Tripod, BT 150, Telescoping Pole System, BP350, Mounts and Positioning Devices, BM 1, BM3, LB10, MM 2 |
| Includes |
(1) GPL100-30G Green-Beam Three-Point Self-Leveling Alignment Laser (1) Built-In Multipurpose Mount (2) AA Batteries (1) Hard Carrying Case |
GPL100-30G Professional: Further information
Product Highlights
The Bosch GPL100-30G features a three-point, self-leveling laser with ±1/8 In. accuracy at 30 Ft. for up/down plumb, align and level applications. This unit features green-beam technology, which is up to 4X brighter than standard red beams. It also has the Bosch-exclusive VisiMax™ technology, which delivers maximum beam brightness in most jobsite conditions. The unit includes point projection to the front, so it can be used in a variety of positions for flexibility on the job. It is faster than a standard manual plumb bob. The unit includes several durability features, such as the Smart Pendulum System to lock the laser when switched off, 360 degree rotation, a hard carrying case and full rubber overmold housing. The integrated multipurpose laser mount features strong magnets and allows the user to mount the laser virtually anywhere.
