Line Lasers

GLL25-10 Professional

Line Lasers

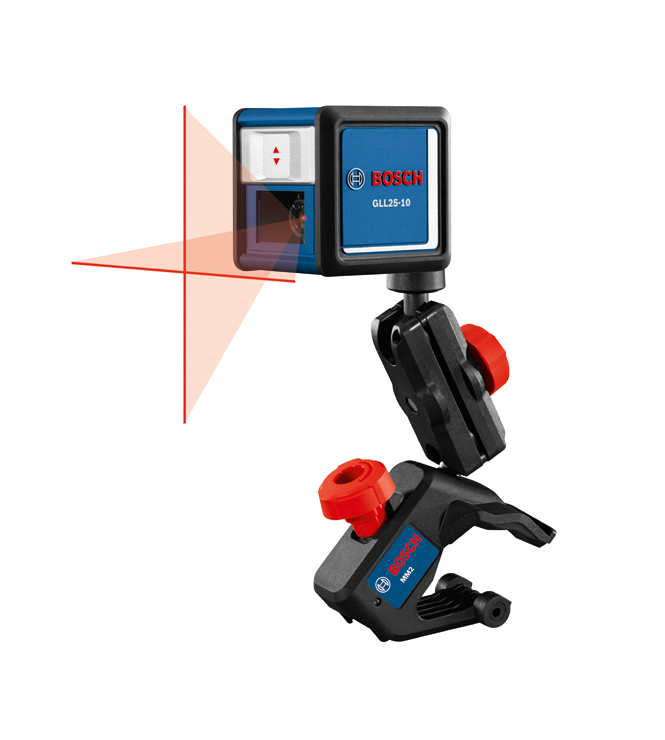

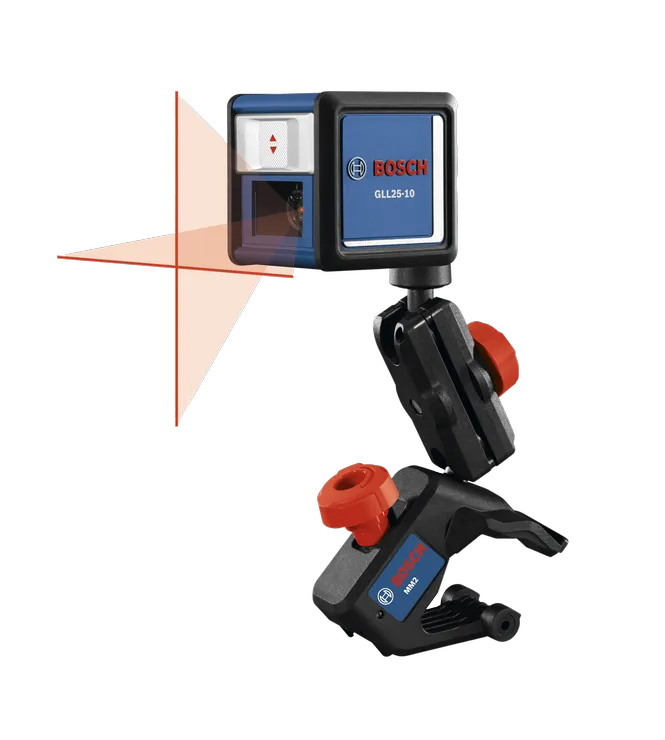

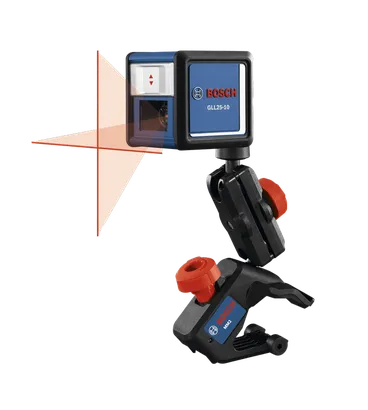

Self-Leveling Cross-Line Laser

  • Cross-line mode – projects two very bright lines that are precisely level and plumb, for a wide array of level and alignment applications
  • Bright accurate lines – projects highly visible laser lines up to 30 Ft. with an accuracy of ±5/16 In. at 30 Ft. distance
  • MM 2 Flexible Mounting Device – clamps to multiple surfaces and provides a rotating 360° neck for quick setup and simple fine-tuning
  • Smart Pendulum System – self-levels and indicates out-of-level condition
  • Secure transport – pendulum locks when switched off, to help ensure long tool life
  • Ergonomic, compact and lightweight – easy to use, easy to store
  • Features 1/4 In.-20 tripod thread – for use with MM 2 mount or tripod
  • Versatile clamp – stable grip on thin and thick surfaces from 1/2 In. to 2-1/4 In. thick
  • Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
View more View less

GLL25-10 Professional

Technical data

The most important data

Connected No
Height in 2.6 "
IP Rating None
Laser Beam Color Red
Laser Diode Class II 635 nm, < 1mW
Length in 2.6 "
Leveling Type Self-Leveling, Up to 4°
Material Plastic with over-mold
Mount Threading 1/4-20
Operating Temperature 41° F / 5° C ~ 104° F / 40° C
Range Up to 30-ft.
Weight 0.6 lb
Weight (lbs.) 1.1
Width in 2.6 "
Works With Mounts and Positioning Devices, MM 2
Includes (1) GLL25-10 Self-Leveling Cross-Line Laser
(1) MM 2 Flexible Mounting Device
(2) AAA Batteries

GLL25-10 Professional: Further information

Product Highlights

The Bosch GLL25-10 Self-Leveling Cross-Line Laser projects two lines, making a cross-line projection, for a wide array of level and alignment applications. The lines are precisely level and plumb, for easy, accurate layout. The laser lines are visible up to 30 Ft. and offer accuracy of ±5/16 In. at 30 Ft. The Smart Pendulum System self-levels and indicates out-of-level condition to help ensure an accurate layout. The pendulum system locks when switched off, to assure secure tool transport. The included MM 2 Flexible Mounting Device provides a rotating 360° neck for quick setup and simple fine-tuning. This mount allows the laser to be clamped on virtually any surface from 1/2 In. to 2-1/4 In. thick.
