Line Lasers
1/10

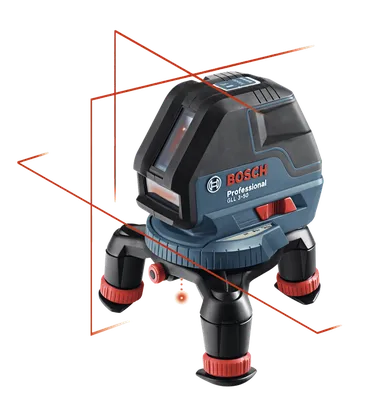

GLL 3-50 Professional
Line Lasers

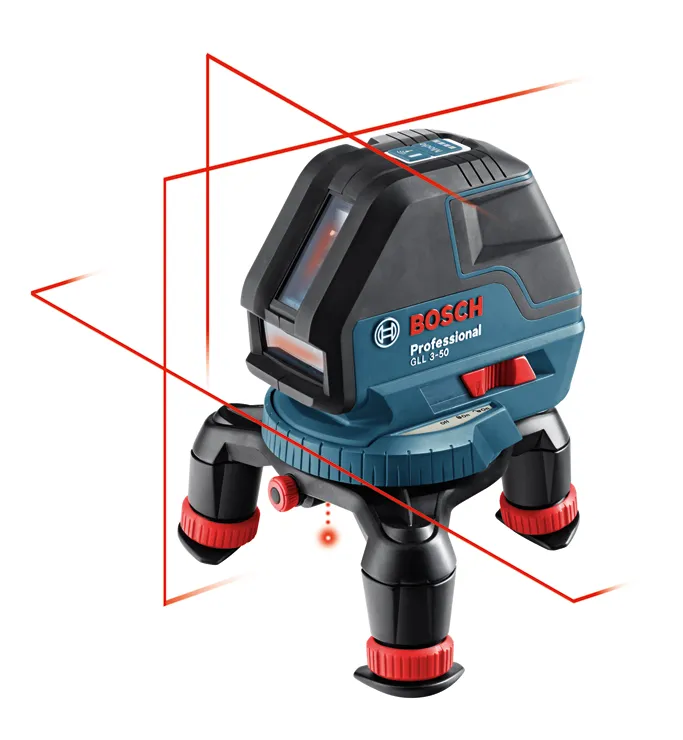

Three-Line Laser with Layout Beam
- One horizontal line, two vertical lines plus layout beam for level, align, plumb and squaring applications
- Smart Pendulum System self-levels and indicates out-of-level condition; locks when switched off

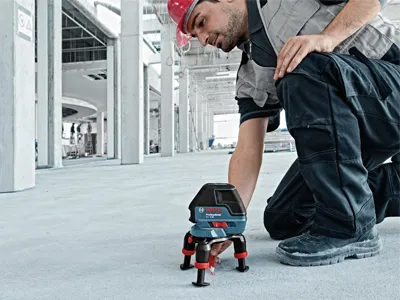

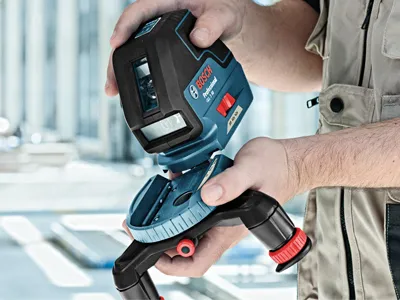

- 360° rotational mounting base with manual fine adjustment for easy set-up and convenient viewing of laser point on the floor
- Pulse laser receiver mode for use with optional laser receiver LR2 at up to 165 Ft.
- Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Functions & key features
GLL 3-50 Professional
Technical data
The most important data
Battery
4 AA 1.5V Batteries
Connected
No
Height in
6 "
IP Rating
IP 54
Laser Beam Color
Red
Laser Diode
Class II 635 nm, = 1 mW
Length in
17.5 "
Leveling Type
Self-Leveling, Up to 4°
Material
Plastic
Mount Threading
1/4-20, 5/8-11
Operating Temperature
14° F / -10° C up to 104° F / 40° C
Range
Up to 30-ft.
Range w/ Optional LR2 Receiver
Up to 165 feet
Weight
5 lb
Width in
14 "
Works With
Laser Receivers, LR 2, Tripods, BT160, BT170HD, BT300HD, BT 150, Telescoping Pole System, BP350, Telescoping Leveling Rods, GR 16, GR500, Mounts and Positioning Devices, WM 4, BM 1, BM3, LB10

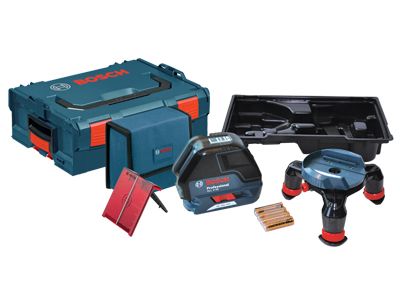

Includes
(1) GLL 3-50 Three-Line Laser with Layout Beam
(1) 360° Rotational Mounting Base
Laser Target
(4) AA Batteries
(1) Heavy-Duty Pouch
(1) L-BOXX-2 Carrying Case
(1) 360° Rotational Mounting Base
Laser Target
(4) AA Batteries
(1) Heavy-Duty Pouch
(1) L-BOXX-2 Carrying Case
GLL 3-50 Professional: Further information
Product Highlights

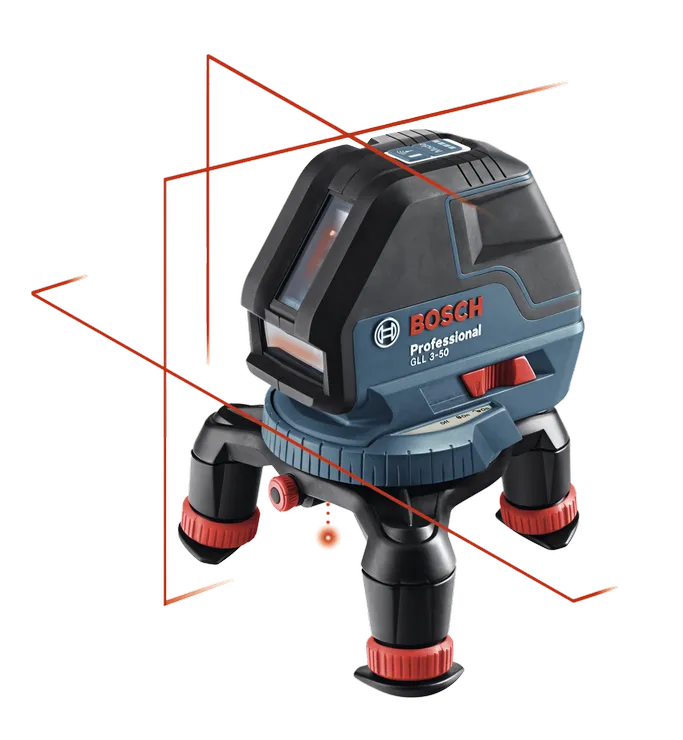

The Bosch GLL 3-50 Three-Line Laser with Layout Beam produces one horizontal line, two vertical lines plus plumb down point - for level, align, plumb and square applications to help users swiftly measure the job with precision. The included a 360° rotational telescoping mounting base helps users effectively set right angles up to 33 Ft. without having to reset. The base has manual fine adjustment, which allows for easy setup and convenient viewing of the laser point on the floor. The Smart Pendulum System self-levels and indicates out-of-level condition. It offers an accuracy of 3/8 In. up to 100 Ft., and it has a pulse mode, for use with the optional LR2 laser receiver, to extend its range up to 165 Ft.
