GKT13-225L Professional
Circular Saws

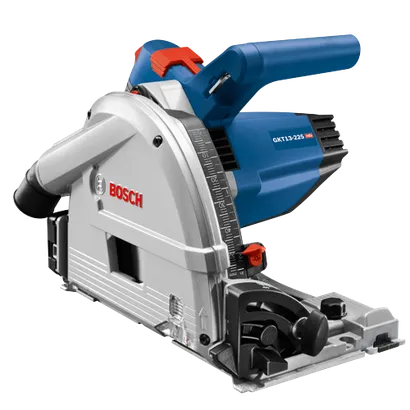

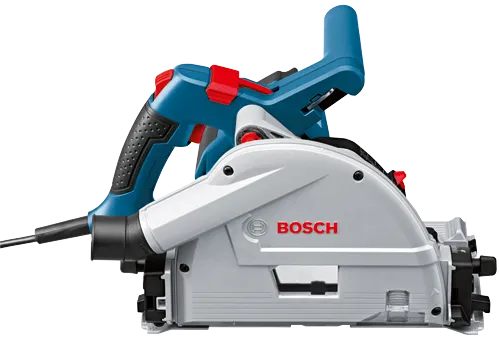

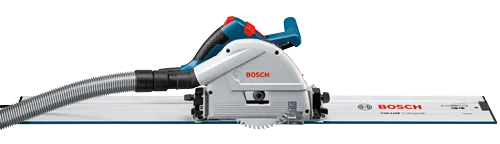

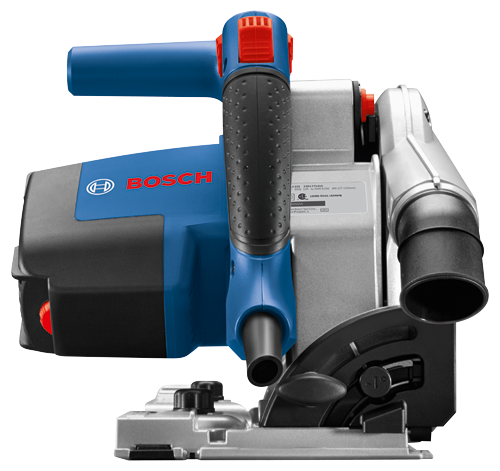

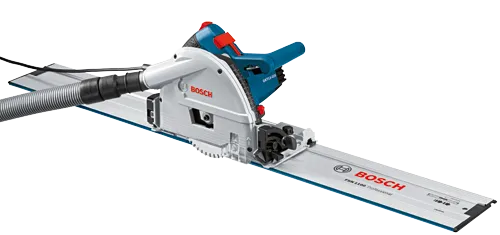

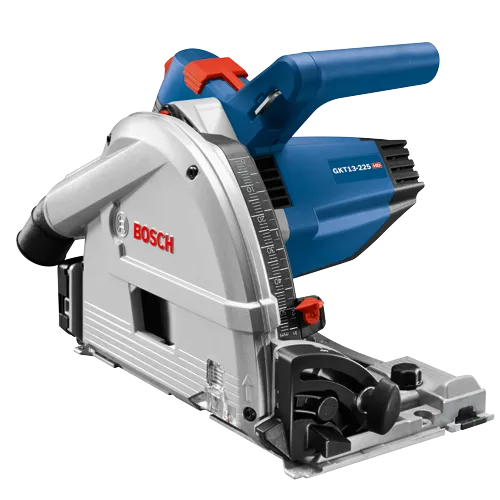

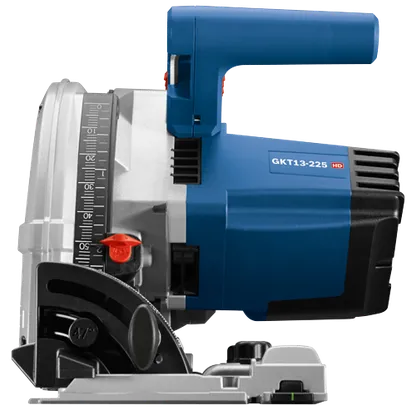

6-1/2 In. Track Saw with Plunge Action and L-Boxx Carrying Case
- Track saw with plunge action – provides fast, easy setup for one-step clean finish cuts in wood and wood-based sheet goods such as laminated particle boards and plywood

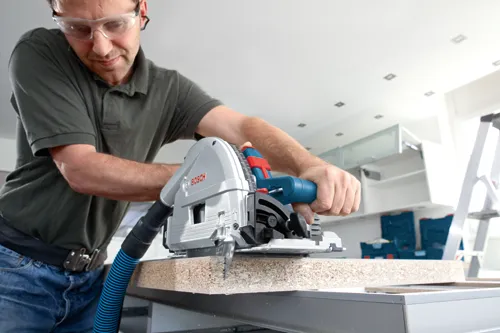

- Plunge mechanism – allows for precise plunge cuts with accurate depth of cut

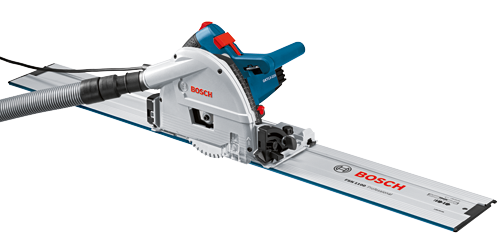

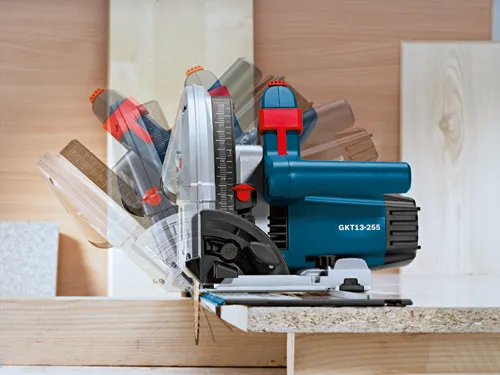

- Single bevel pivot point – when sawing using a track (sold separately), the track can be positioned in the same way for bevel cuts or non-bevel cuts
- Constant electronics – helps maintain speed under the load of more-demanding applications
- Overload protection – protect the motor from overheating

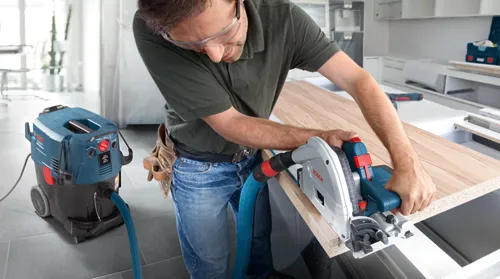

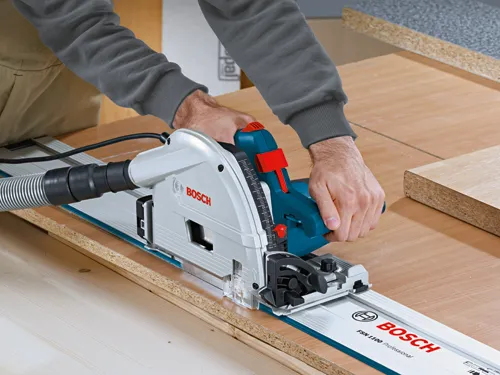

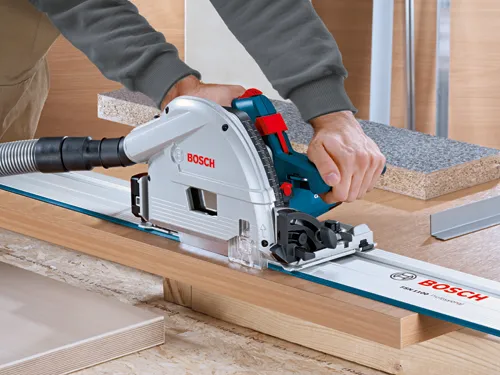

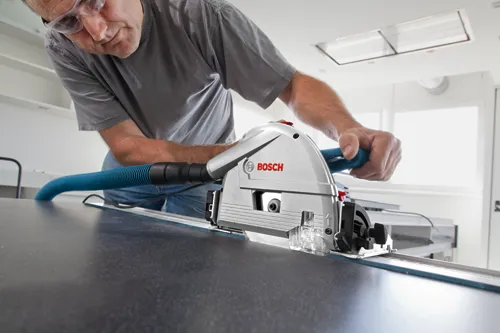

- Efficient dust extraction – when connected to suitable vacuum cleaner, supports easier working conditions

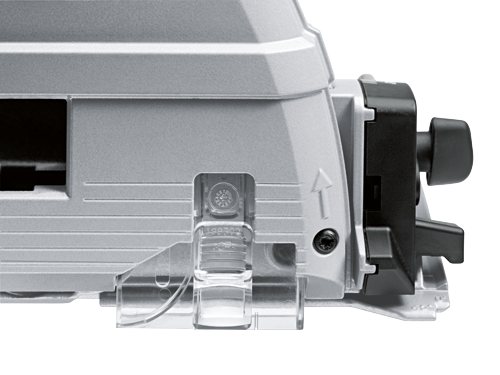

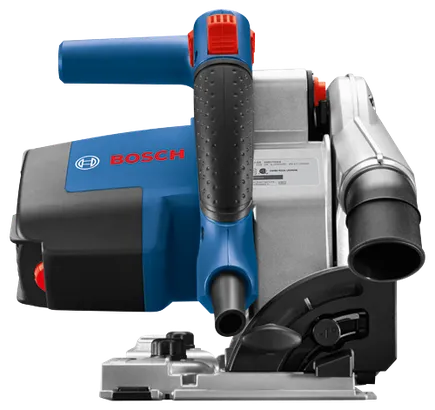

- Swiveling hose port – keeps optional vacuum cleaner hose out of the way
- Easy blade-change system – quick three-step blade swap with spindle lock and on-board hex key
- Specialized 48-tooth 6-1/2 In. track saw blade – designed for clean, precise results
- Tracking adjustment – features front and rear knobs for adjusting the precision of the fit of the saw to the track to deliver the best cutting experience
- 12.5 Ft. power cord – offers extended cutting range

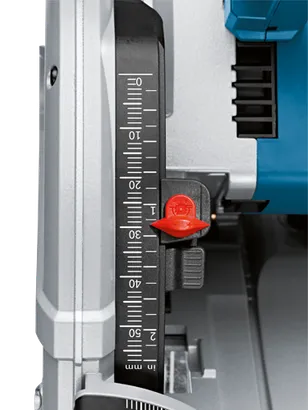

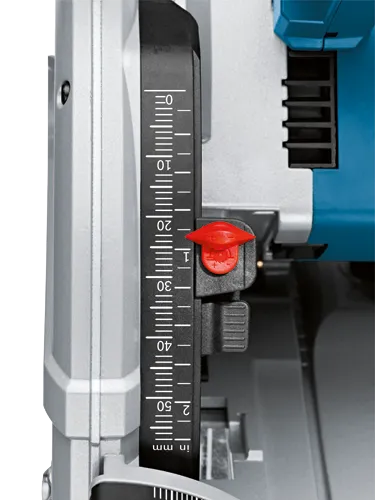

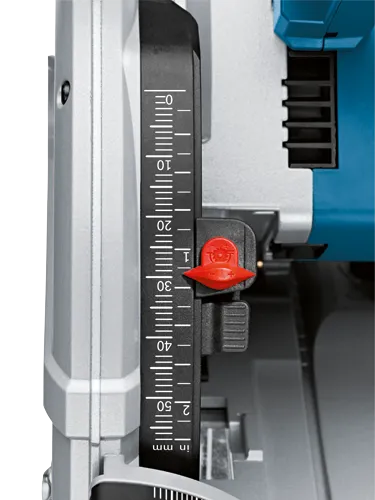

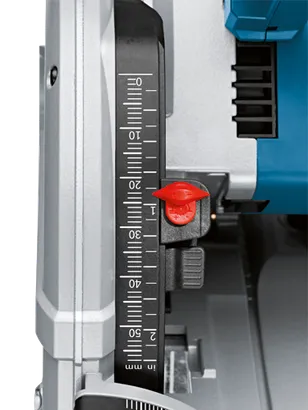

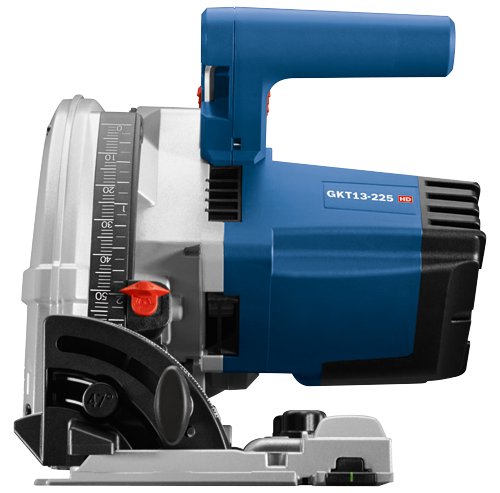

- Combination inch and metric depth scale – provides depth measurement in both scales
- Variable-speed dial – for adjusting speed to workpiece material and task
- Magnesium footplate – provides durability at a lighter weight
- Full range of optional track attachments – for cutting versatility, convenience and performance
Technical data
The most important data |
|
|---|---|
| Amperage | 13 |
| Arbor Size in | 20 mm |
| Blade Diameter (in) | 6.5 |
| Case Type | L-BOXX-4 |
| Category | Circular Saws |
| Height in | 9.45 " |
| Length in | 14.4 " |
| No Load RPM | 3,600-6,250 |
| Reverse | No |
| Variable Speed | Yes |
| Voltage | 120V |
| Weight | 10.4 lb |
| Width in | 9.5 " |
| Works With | Tracks, FSN800, FSN1100, FSN1600, FSN2100. Also FSN1600X2B Track Kit., Tracks with Shelving Pin Holes, FSN800-32, FS1600-32, Track Miter Guide, FSNWAN, Rip Fence, GKTPA, Vacuum Hoses, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VH1635A (by means of anti-static adapter included with that hose), VAC005, VAC006, VAC008, and most other 35 mm hoses, Vacuum Hose Adapter for 1-1/4" and 1-1/2" Hoses, VAC024 (Incompatible with VAC002 and VAC020 Vacuum Hose Adapters) |
| Includes |

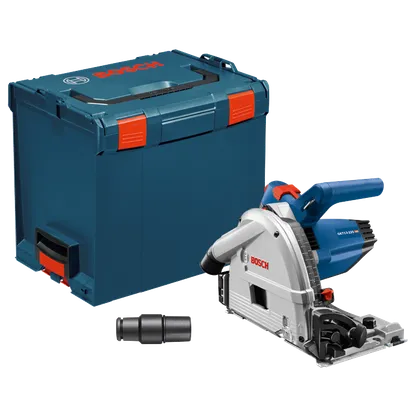

(1) GKT13-225 Plunge Track Saw (1) PRO648TS 6-1/2 In. 48-Tooth Track Saw Blade (1) Blade Wrench (1) VAC024 Vacuum Hose Adapter (1) L-BOXX-4 Carrying Case |
GKT13-225L Professional: Further information
Product Highlights

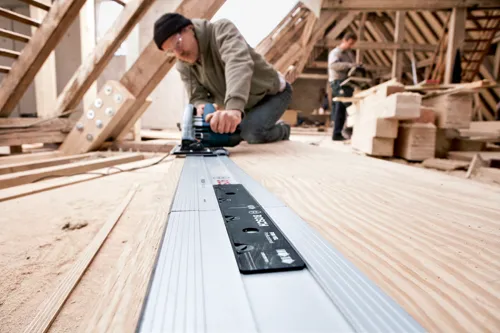

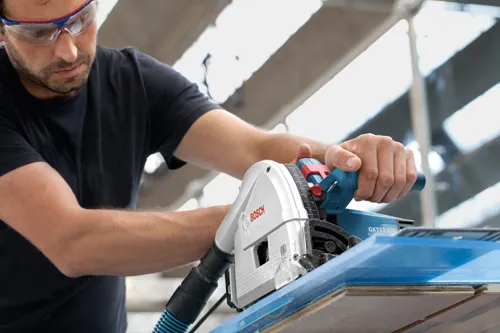

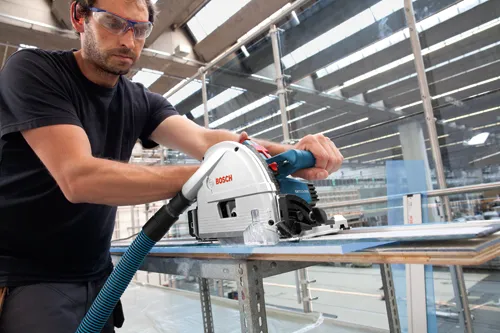

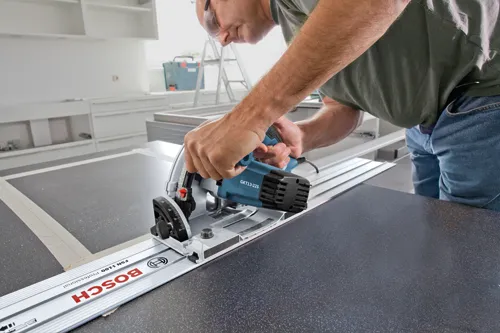

The Bosch GKT13-225 Track Saw with Plunge Action delivers precision and power, ideal for making table-saw quality cuts to wood and wood-based sheet goods such as laminated particle boards and plywood. The track-guidance system provides exact adjustments for precision end-to-end cuts and plunge cuts. The saw and track combination makes it a more easily transportable alternative to a table saw. The precision of the track saw and blade combine with the optional Bosch tracks (sold separately) to deliver a straight fast finish cuts. The saw is engineered to fit precisely to the tracks. The saw includes constant electronics to help maintain speed under load. The saw also features a spindle lock, a swiveling hose port and a lock-off mechanism. It features overload protection. It has a single pivot point for both bevel and non-bevel cuts, from -1° (for slight undercuts) to +47° cuts. It allows for efficient dust extraction when connected to a suitable vacuum cleaner. The GKT13-225L Kit includes a 48-tooth 6-1/2 In. track saw blade, blade-change wrench, and an L-Boxx case. Bosch offers a full range of optional attachments, including four different track lengths, connector for connecting multiple tracks, an angle guide and a rip fence.
