GKF18V-25PL14 Professional
New Products
18V Brushless Colt™ Palm Router Kit with (1) CORE18V® 4 Ah Advanced Power Battery and Plunge Base

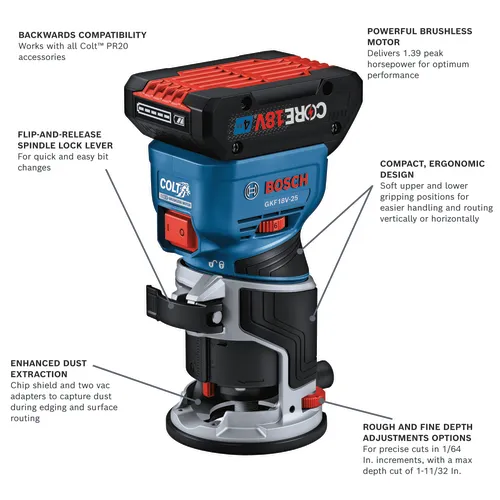

- Optimal performance and portability – with the best power-to-size ratio in its class
- Efficient brushless motor – produces 1.39 peak horsepower and 10,000 to 30,000 RPM
- Compact, ergonomic design – with high and low soft gripping positions for easier handling in both horizontal and vertical applications
- Simplified, flip-and-release spindle lock lever – for quick and easy bit changes
- Backwards compatibility – with all pr20 accessories for a seamless transition to cordless
- Rough and fine depth adjustment – for precise cuts in 1/64 In. increments, with a max depth cut of 1-11/32 In.
- Drop detection – shuts off the router if a fall is detected
- Soft-start circuitry – reduces start-up torque for greater control
- Constant Response circuitry — monitors and maintains speed und
- Restart protection – prevents the router from accidental startup when switching batteries
- Variable speed dial — for matching speed to workpiece and task
- Unique finger support pockets — for additional stability, especially when trimming edges

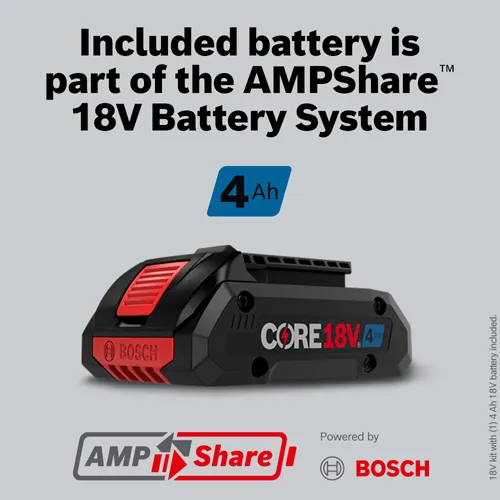

- AMPShare™ System – battery system designed to be multi-brand compatible across many cordless products to make managing your workday easier
- AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
- Bosch 18V cordless power tools are covered by a five-year limited warranty for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Technical data
The most important data |
|
|---|---|
| Base Diameter | 3-3/4" |
| Base Opening | 2-13/16" |
| Collet Capacity | 1/4" |
| Dust Collection | Yes |
| Fixed-Base Depth Range | 1-3/16" |
| Height in | 6.6 " |
| Horsepower Rating | 1.39 |
| Length in | 4 " |
| Max. RPM | 30,000 |
| No Load RPM | 10,000-30,000 |
| Plunge Depth | 2-1/4" |
| Router Type | Plunge & Fixed Based Routers |
| Subbase Opening | 1-11/16" |
| Variable Speed | Yes |
| Weight | 2.4 " |
| Width in | 3.7 " |
| Works With | Roller Guide, PR003, Plunge Base, PR011, Collet Chuck, PR114, Edge Guide, PR102, Tilt Base, PR005, Offset Base with Roller Guide, PR004 |
| Includes |

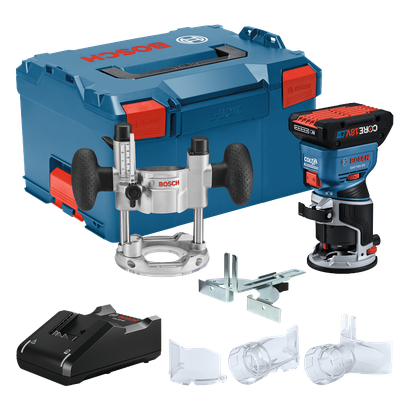

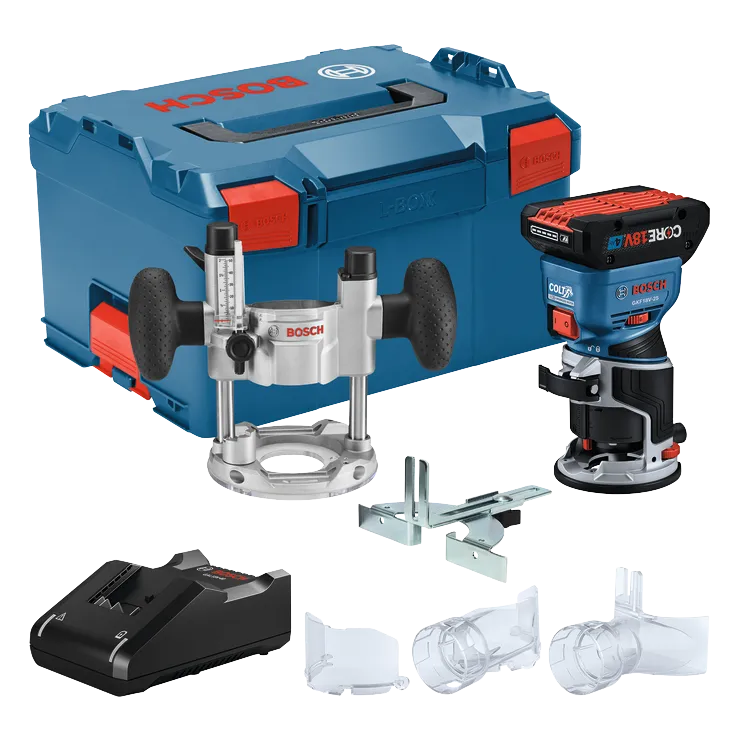

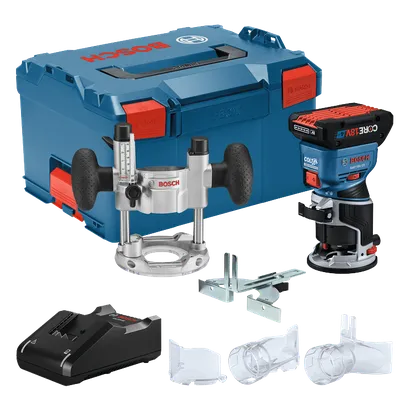

(1) Bosch GKF18V-25 18V Brushless Colt™ Palm Router with Fixed Base (1) GBA18V-40 CORE18V® 4 Ah Advanced Power Battery (1) GAL18V-40 18V Charger (1) PR011 Plunge Base (1) RA1175 Edge Routing Dust Hood (1) PR012 Surface Routing Dust Hood (1) Chip Shield (1) Parallel Guide (1) PR114 ¼ In. Self-Releasing Collet Chuck (1) Collet Chuck Wrench (1) Carrying Case |
GKF18V-25PL14 Professional: Further information
Product Highlights

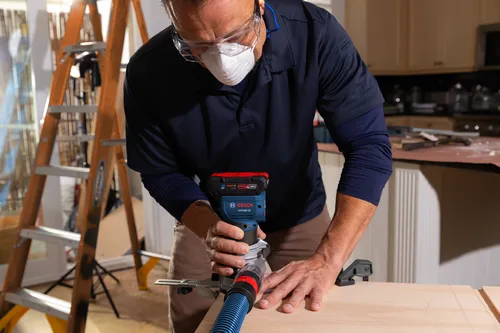

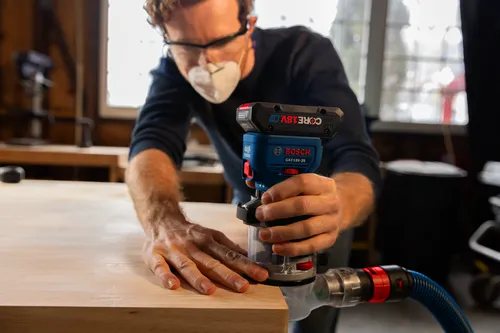

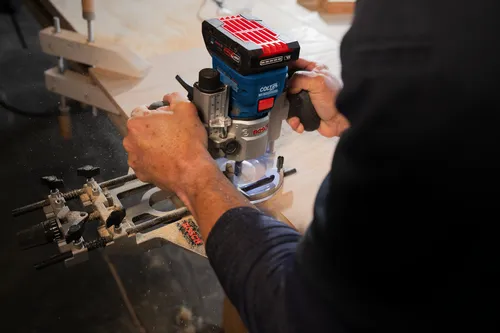

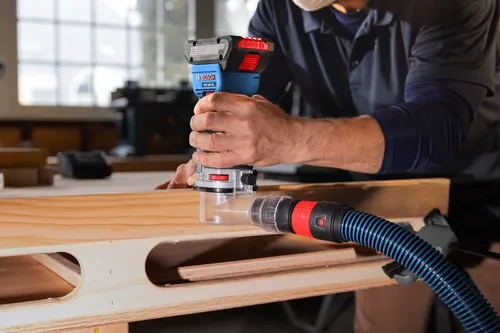

Experience optimal performance and portability with the Bosch GKF18V-25 18V Brushless Colt™ palm router, a cordless solution with the best power-to-size ratio in its class. Featuring an efficient brushless motor that produces 1.39 peak horsepower and spins at a variable speed of 10,000 to 30,000 RPM, this router is ideal for precise edge forming on tables and windowsills, as well as more demanding surface routing and OSB flush cutting. The compact, ergonomic design features both high and low soft gripping positions for added comfort and control during vertical and horizontal applications. The router’s depth adjustment system allows for rough and fine depth adjustments in 1/64 In. increments, with a max depth cut of 1-11/32 In. for precise and customizable woodworking results. The simplified flip-and-release spindle lock lever helps ensure a quick and efficient bit change process while on the job. For added convenience and flexibility, the GKF18V-25 Colt™ palm router is fully compatible with all previous corded Colt™ (PR20) accessories. Keep dust at bay with two vacuum adaptors and a chip shield that deliver effective extraction for both edge and surface routing applications. Equipped with drop detection, the router automatically shuts off upon detecting a fall. Additionally, restart protection prevents the router from accidental startup when switching batteries. Benefit from greater control with the router’s soft-start circuitry and convenience motor brake features. Workers can elevate their routing experience with the freedom and versatility of the cordless Bosch GKF18V-25 18V Brushless Colt™ palm router. The Kit includes one CORE18V®4 Ah Battery for optimal productivity and runtime, one charger and a hard case. The Kit includes one CORE18V®4 Ah Advanced Power Battery for optimal productivity and runtime, one 18V charger, a plunge base to further expand the router’s versatility and a carrying case.
