GDS18V-330PCN Professional
18V Impact Wrenches

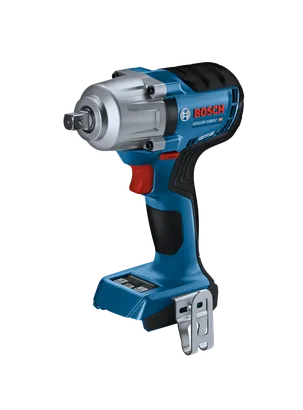

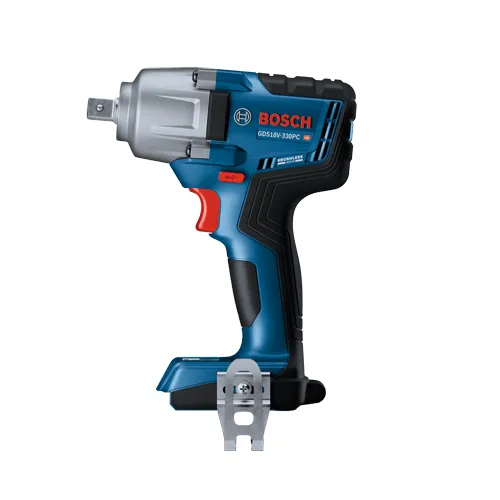

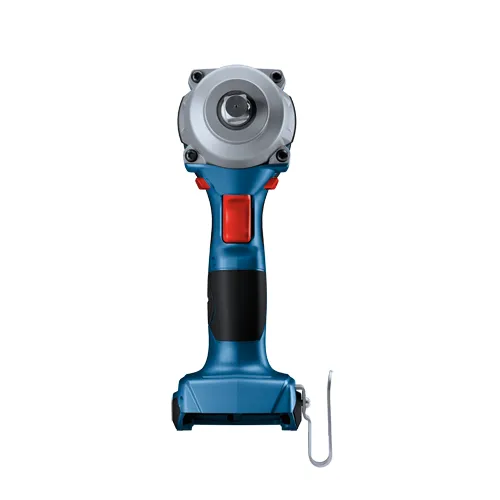

18V Brushless 1/2 In. Mid-Torque Impact Wrench with Pin Detent (Bare Tool)

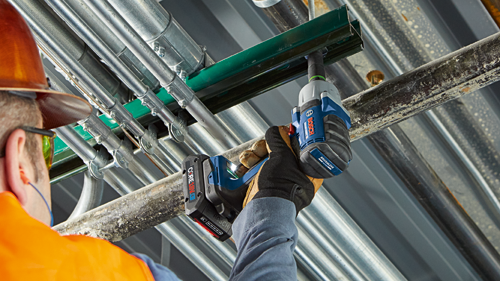

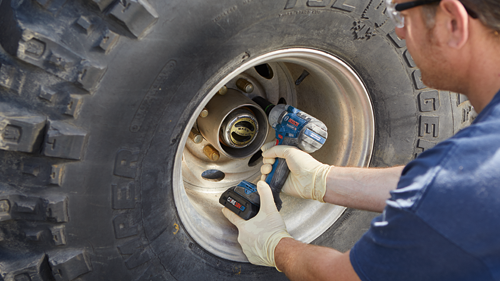

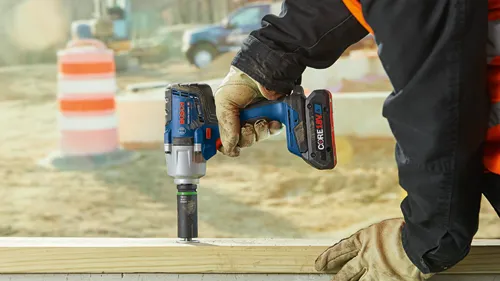

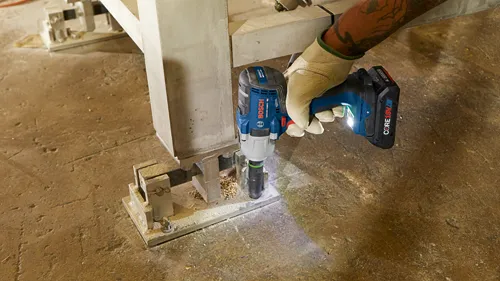

- Impact wrench design – built to deliver power and control for tightening lag bolts, concrete anchors and lug nuts
- Power – delivers 330 Ft.-Lbs. max fastening torque and 590 Ft.-Lbs. max breakaway torque

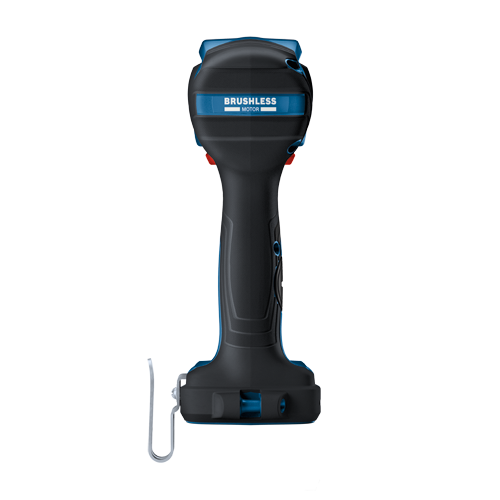

- Powerful brushless motor – delivers efficient runtime and up to 3,300 ipm for professional power
- Variable-speed power output – control max torque and speed with three settings
- Advanced modes – offer preset and customizable modes such as Auto Stop, to help prevent over driving, which can damage materials and fasteners
- Auto Bolt Release – stops rotation when the bolt is loosened to help prevent accidentally dropping bolts and nuts during removal
- Onboard user interface – easy access to modes, speed-settings, tool-status feedback and LED light control
- Connectivity (module sold separately) – link to connected device via Bosch Toolbox App to customize settings and receive detailed feedback

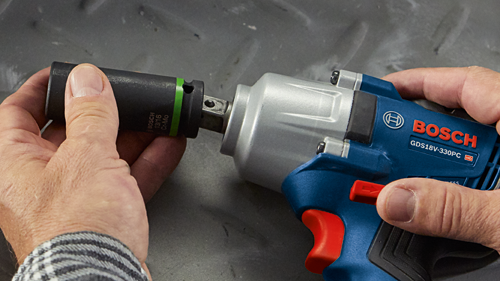

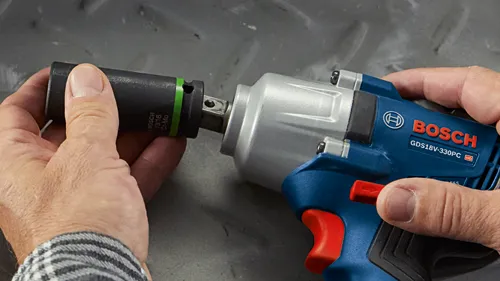

- Pin detent system – enables toolless socket installation with secure socket retention
- Easy-to-handle design – features a compact head length, and when paired with CORE18V® 4 Ah battery weighs only 4.6 Lbs., providing exceptional power-to-weight ratio
- LED light - illuminates dark work areas
- AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
- AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
- Bosch 18V cordless power tools are covered by a five year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Technical data
The most important data |
|
|---|---|
| Battery Chemistry | Lithium Ion |
| Battery Watt Hours | 0 Wh |
| Drive | 1/2" Square Drive |
| Height in | 8.3 " |
| Impact Rate | 0 - 3,300 |
| Length in | 6.6 " |
| Material | 06019K4110 |
| No Load RPM | 0-1,000 / 1-1,500 / 0-2,300 |
| Torque (ft. -lbs) | 330 |
| Variable Speed | Yes |
| Weight | 3.5 lb |
| Weight (lbs.) | 3.5 |
| Width in | 3 " |
| Works With | Recommended Battery Packs to help achieve maximum tool performance, GBA18V40 and GBA18V80 Batteries |
| Includes |
(1) GDS18V-330PC 18V Brushless 1/2 In. Mid-Torque Impact Wrench with Pin Detent (1) Belt Clip |
GDS18V-330PCN Professional: Further information
Product Highlights

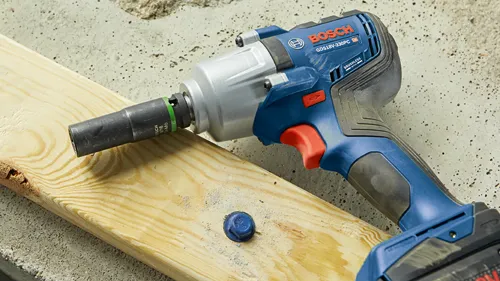

The Bosch GDS18V-330PC 18V Brushless 1/2 In. Mid-Torque Impact Wrench delivers outstanding performance, whether driving lag bolts through heavy lumber, assembling metal structure, or removing stubborn lug nuts. This impact wrench has a 1/2 In. drive with a pin detent anvil, which enables toolless socket installation with secure socket retention. The brushless motor delivers up to 330 Ft.-Lbs. fastening torque and 590 Ft.-Lbs. breakaway torque while providing long runtime. Modes such as Auto Stop help prevent over driving, which can damage materials and fasteners. Presets for specific bolts, screws and materials can be customized and saved to the tool via the Bosch Toolbox App (connectivity module sold separately). When reversing in bolt mode, Auto Bolt Release senses when the bolt is loosened and stops rotation to help prevent accidental dropping of bolts and nuts during removal. In addition to customizable settings and modes, connectivity (module sold separately), provides tool specific information and feedback. This is a bare tool kit; battery and charger are sold separately.
