18V Miter Saws
The most important data |
|
---|---|
Battery Chemistry | Lithium Ion |
Bevel Angle Range | 47° left and 47° right |
Bevel Stops | 0°, 33.9°, 45° and 47° (L/R) |
Blade Diameter (in) | 12 |
Blade Size | 12" |
Case Type | No Case Included |
Category | Benchtop |
Height in | 27 " |
Length in | 32 " |
Max. Base Molding Against Fence | 7-1/4 In. (4 In. from 31.6° to 60° R) |
Max. Crown Molding (38° Spring) Angled Against Fence | 5-1/2 In. |
Max. Crown Molding (45° Spring) Angled Against Fence | 6 In. |
Max. Cut Capacity - 0° Miter 0° Bevel | 3-1/2 In. x 13-1/2 In. |
Max. Cut Capacity - 0° Miter 45° Left Bevel | 2 In. x 13-1/2 In. |
Max. Cut Capacity - 0° Miter 45° Right Bevel | 1-1/2 In. x 13-1/2 In. |
Max. Cut Capacity - 45° Miter 0° Bevel | 3-1/2 In. x 9-1/2 In. |
Max. Cut Capacity - 45° Miter 45° Left Bevel | 2 In. x 9-1/2 In. |
Max. Cut Capacity - 45° Miter 45° Right Bevel | 1-1/2 In. x 9-1/2 In. |
Miter Angle Range | 52° Left, 60° Right |
Miter Detents | 0°, 15°, 22.5°, 31.6°, 45°, (Left/Right) 60°, (Right) |
Weight | 59.3 lb |
Width in | 26.5 " |
Works With | Recommended Battery Packs to help achieve maximum tool performance, GBA18V60, GBA18V80 and GBA18V120 Batteries, Bosch Bluetooth® Connectivity Module, GCY42 (See tool manual for its connectivity/app features.), Miter Saw Stands, T1B, T4B, GTA3800, Crown Molding Stops (Pair), MS1233, Length Stop, MS1234, Anti-Static Vacuum Hoses, VH1622A and VH1635A (by means of anti-static adapter included with those hoses), VAC008, and most other 22 mm and 35 mm anti-static hoses, Other Vacuum Hoses, VH1022, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 22 mm and 35 mm hoses, Adapters for 1-1/4 in and 1-1/2 in. Vacuum Hoses, VAC024 (VAC002 is not compatible with the GCM18V-12GDC miter saw.) |
Includes |
(1) GCM18V-12GDC PROFACTOR™ 18V 12 In. Dual-Bevel Glide Miter Saw (1) 12 In. Blade (1) Material Clamp (1) Wrench (1) Dust Bag |

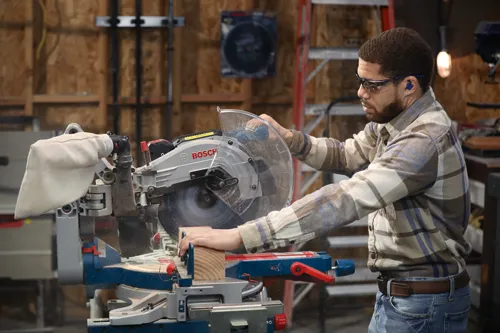

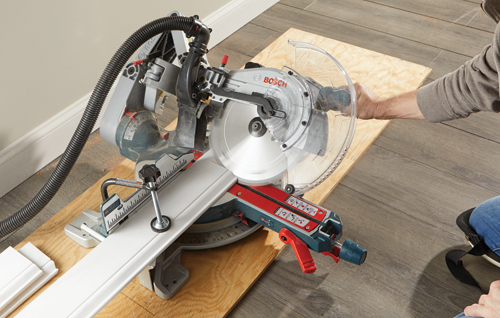

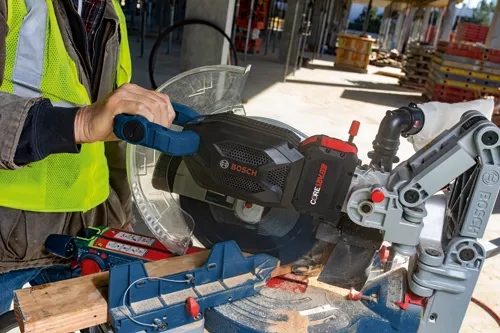

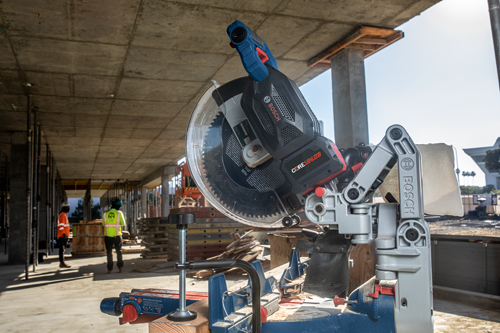

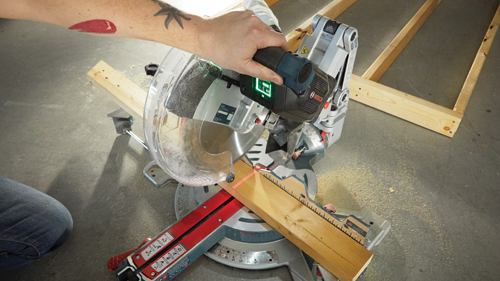

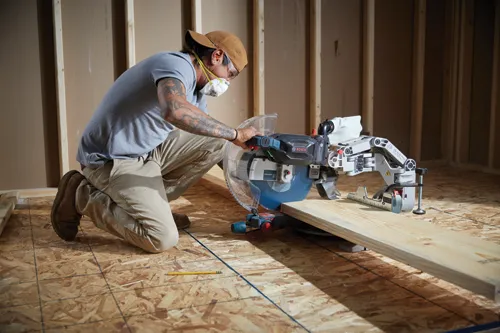

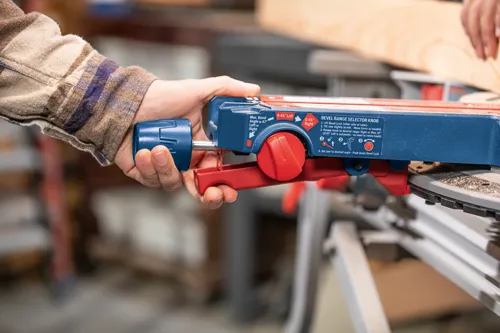

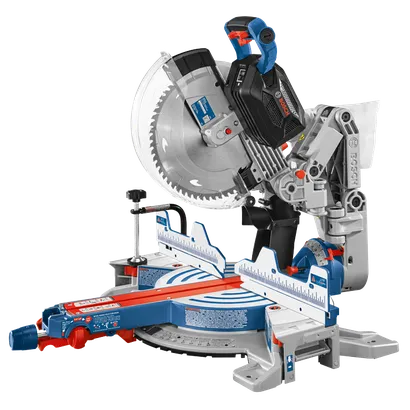

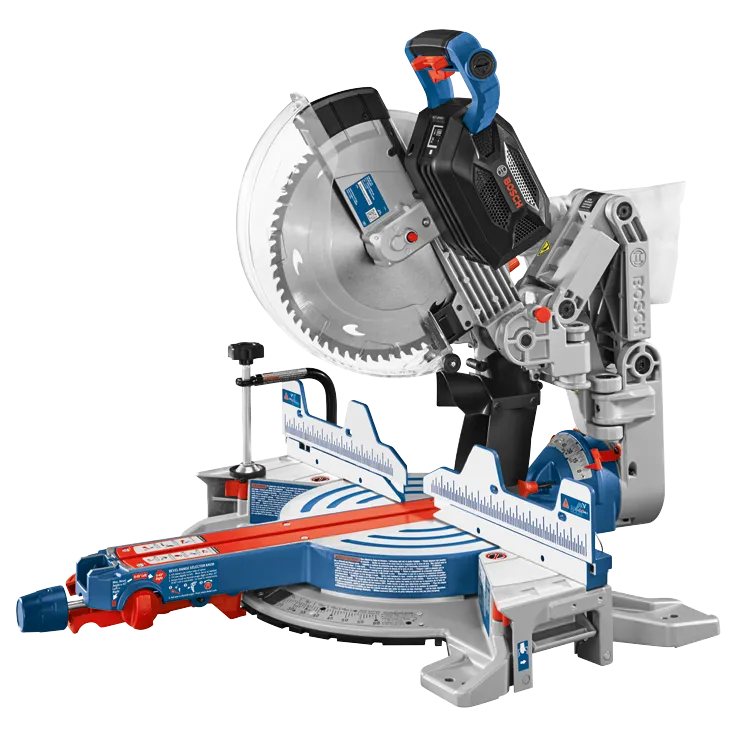

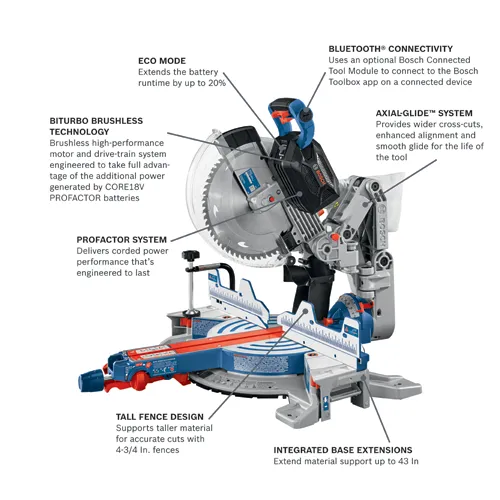

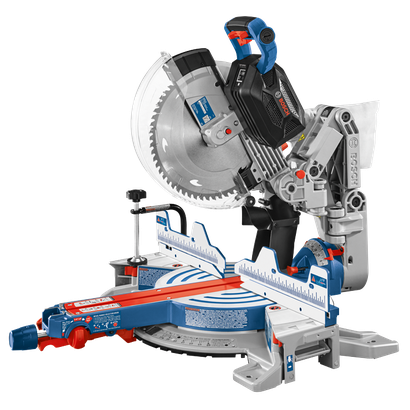

This Bosch 12 In. miter saw features the Axial-Glide™ System and BITURBO Brushless™ Technology to deliver a professional cordless solution to the jobsite. The GCM18V-12GDC features the Bosch-exclusive Axial-Glide™ for wider cross-cuts, enhanced alignment and smooth glide for the life of the tool. This system features an articulating arm with no slide arms behind the saw, so it takes less space than a sliding-rail miter saw. It delivers a large cutting capacity, with a 3.5 In. depth and a 13.5 In. width/crosscut. The bevel controls are upfront for easy access. This compact saw is portable while being compatible with a variety of 12 In. blades. This miter saw is part of the PROFACTOR™ System, which pairs BITURBO Brushless™ Technology with a CORE18V® High Power Battery. BITURBO Brushless™ Technology is a high-performance motor and drive-train system designed to deliver power comparable to high-demand corded tools. It has ECO mode, which extends the battery runtime by up to 20%. The saw features connectivity (module sold separately), providing a link to a connected device via Bosch Toolbox App to customize speed selection and individual mode setting. The saw provides integrated base extensions that extend material support up to 43 In. The 4-3/4 In. tall fence design supports taller material for accurate cuts.
