GCM18V-08N14 Professional
18V Miter Saws

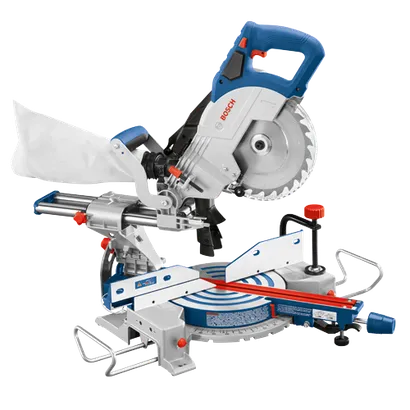

18V 8-1/2 In. Single-Bevel Slide Miter Saw Kit with (1) CORE18V® 8 Ah High Power Battery
- Portable, powerful 18V miter saw design – a truly mobile jobsite solution, this light saw provides light weight and pro capacity

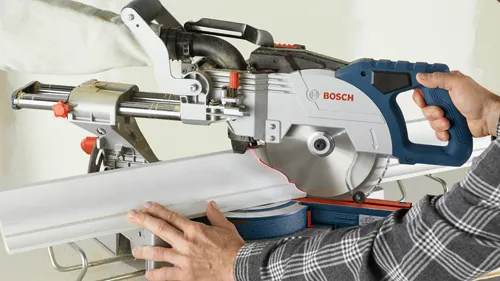

- Pro capacity – delivers 3-5/8 In. nested crown cutting, with 47° left to 47° right cuts against fence and 10-5/8 In. crosscuts
- Performance-optimized 18V Li-ion battery – engineered to deliver power and runtime for ideal performance-to-to-weight ratio
- Convenient portability – weighs only 31.5 Lbs. (tool only, not including battery)

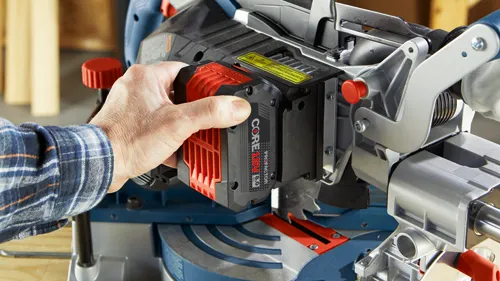

- CORE18V® 8 Ah battery – delivers 100% more runtime and over 75% more power than the CORE18V® 4 Ah battery for high-demand applications
- High-power cells – use enhanced 21700 cell technology, combined with advanced battery design for greater efficiency, to transfer more power for a longer time
- Cutting-edge battery cell design – engineered to improve performance in tools used on the jobsite all day
- Bosch-exclusive CoolPack 2.0 technology – provides better cooling than the previous-generation CoolPack system

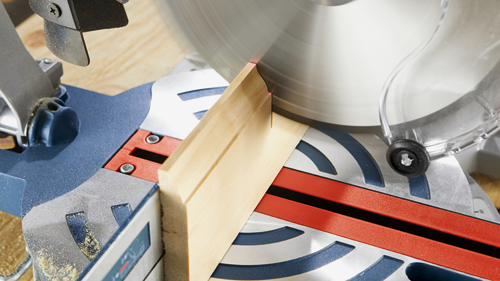

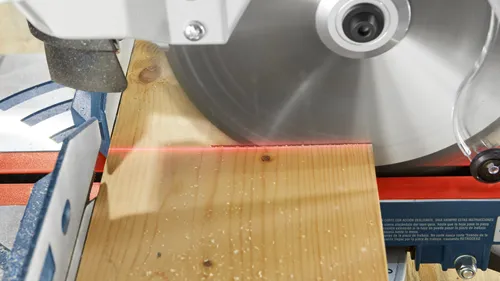

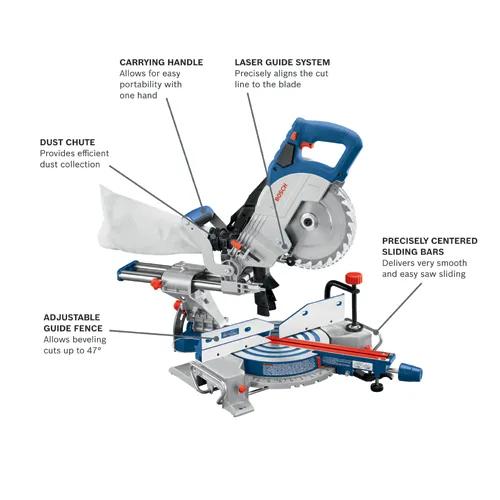

- Accurate laser guide system – precisely aligns the cut line to the blade
- Precisely centered sliding bars – delivers very smooth and easy saw sliding
- Dust chute and dust bag – provides efficient dust collection
- Bosch 18V cordless power tools and 18V chargers are covered by a five year limited warranty; Bosch 18V batteries are covered by a three year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Technical data
The most important data |
|
|---|---|
| Battery Chemistry | Lithium Ion |
| Battery Packed | Outside Tool, inside package |
| Bevel Angle Range | 0° to 45° |
| Bevel Stops | 45° |
| Blade Diameter (in) | 8.5 |
| Blade Size | 8-1/2” |
| Case Type | No Case Included |
| Category | Benchtop |
| Height in | 18 " |
| Length in | 18.5 " |
| Max. Base Molding Against Fence | 2-3/4 in |
| Max. Crown Molding (38° Spring) Angled Against Fence | 3-5/8 in |
| Max. Crown Molding (45° Spring) Angled Against Fence | 3-3/4 in |
| Max. Cut Capacity - 0° Miter 0° Bevel | 2-3/4 in. x 10-5/8 in |
| Max. Cut Capacity - 0° Miter 45° Left Bevel | 1-1/2 in. x 10-5/8 in. |
| Max. Cut Capacity - 45° Miter 0° Bevel | 2-3/4 in. x 7-1/2 in |
| Max. Cut Capacity - 45° Miter 45° Left Bevel | 1-1/2 in. x 7-1/2 in |
| Max. Depth at Max Bevel | 1.5 |
| Miter Angle Range | 0° - 47°, Left and Right |
| Miter Detents | 0°, 15°, 22.5°, 45° (Left/Right) |
| Miter Positive Stops | 0°, 15°, 22.5°, 45° (Left/Right) |
| Weight | 31.5 lb |
| Width in | 32 " |
| Works With | Stands, T1B, T4B, GTA3800, Crown Molding Stops (Pair), MS1233, Length Stop, MS1234, Anti-Static Vacuum Hoses, VH1622A and VH1635A (by means of anti-static adapter included with those hoses), VAC008, and most other 22 mm and 35 mm anti-static hoses, Other Vacuum Hoses, VH1022, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 22 mm and 35 mm hoses, Adapters for 1-1/4 in and 1-1/2 in. Vacuum Hoses, VAC024 (VAC002 is not compatible) |
| Includes |

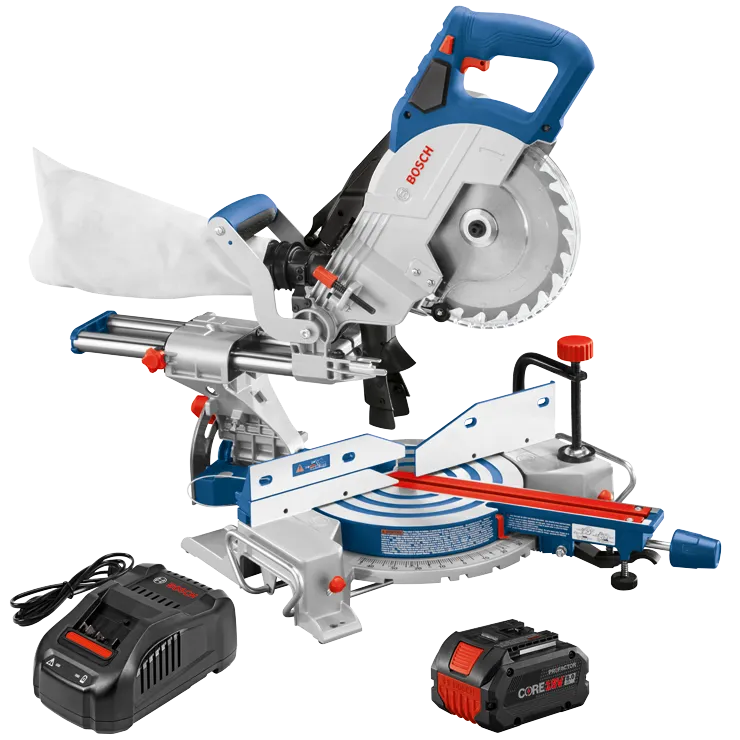

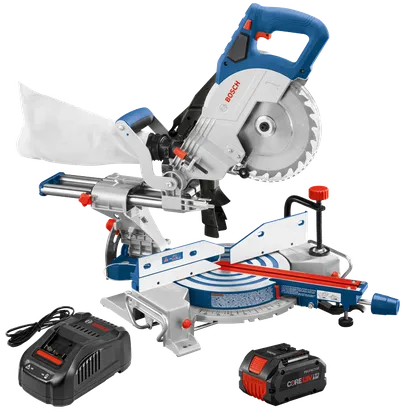

(1) GCM18V-08 18V 8-1/2 In. Single-Bevel Slide Miter Saw (1) 18V CORE18V® Lithium-Ion 8 Ah High Power Battery (1) 18V Charger (1) 8-1/2 In. 24-Tooth Carbide-Tipped Blade (1) Material Clamp (1) Wrench (1) Dust Bag |
GCM18V-08N14 Professional: Further information
Product Highlights

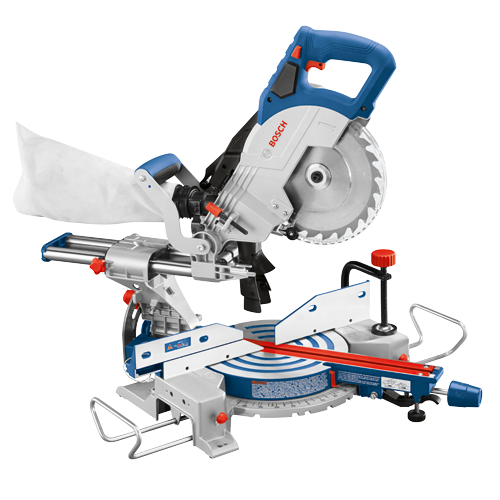

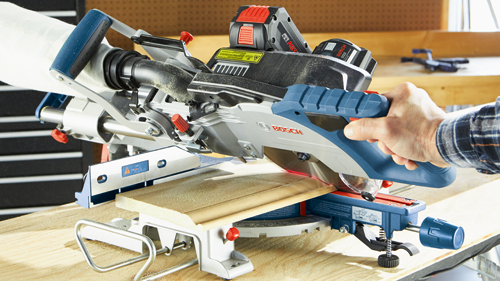

This Bosch brushless miter saw combines professional cutting capacity with outstanding portability to deliver a truly mobile, cordless solution to the jobsite. The GCM18V-08 8-1/2 in. is a single-bevel, sliding compound miter saw delivering a 3-5/8 In. nested crown cutting capacity, cutting from 47° left to 47° right against the fence, which is exceptional range for a cordless 8-1/2 In. miter saw. At a manageable 31.5 Lbs. (tool only, not including battery), this saw features easy portability while still providing a 10-5/8 In. crosscut capacity. In testing, the saw delivers 377 cuts per charge with a CORE18V® High Power Battery. The kit includes a CORE18V® 8 Ah High Power Battery, which delivers 100% more runtime and over 75% more power than the CORE18V® 4 Ah battery for high-demand applications. With an accurate laser guide system to precisely align the cut line to the blade, the saw is engineered with precisely centered sliding bars, leading to a very smooth and easy saw sliding. It provides a dust chute and dust bag, providing efficient dust collection.
