GCM18V-08N Professional
18V Miter Saws

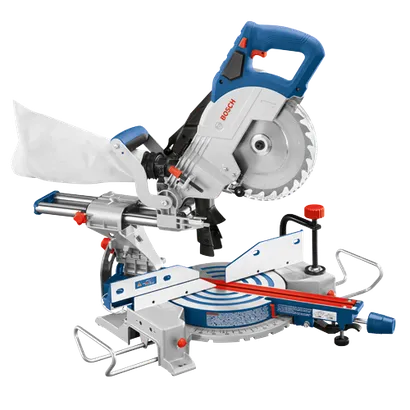

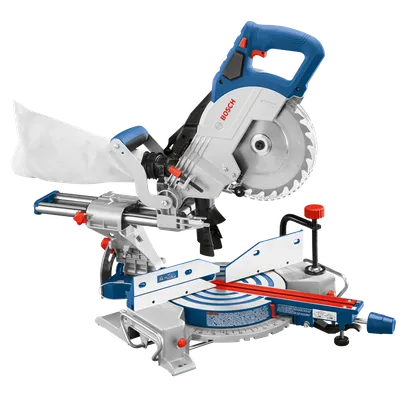

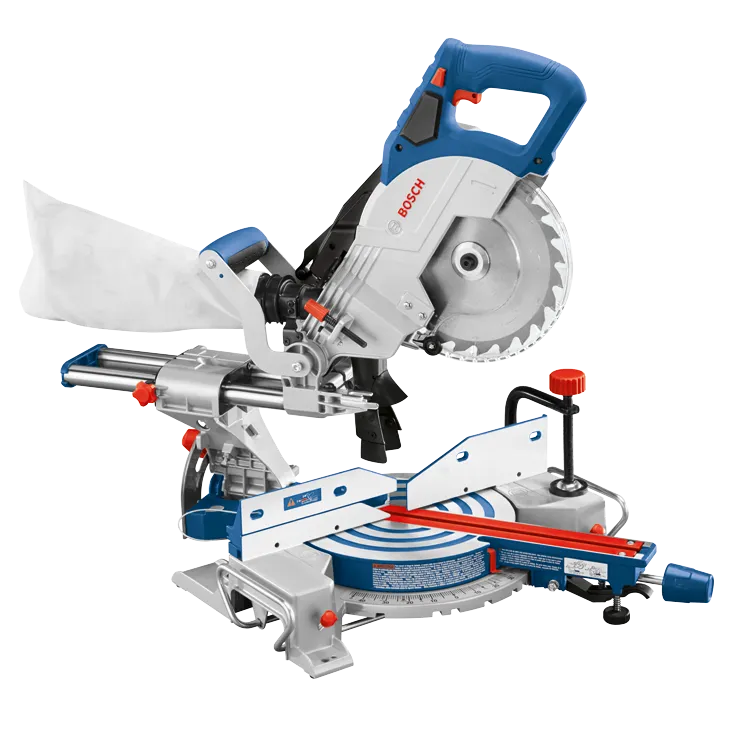

18V 8-1/2 In. Single-Bevel Slide Miter Saw (Bare Tool)
- Portable, powerful 18V miter saw design – a truly mobile jobsite solution, this saw provides light weight and pro capacity

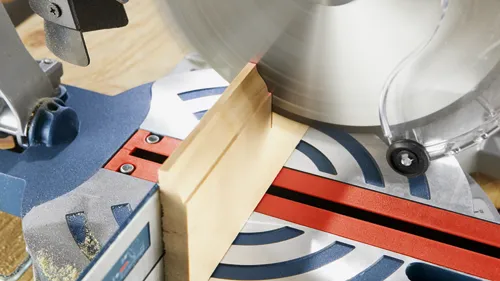

- Pro capacity – delivers 3-5/8 In. nested crown cutting, with 47° left to 47° right cuts against fence and 10-5/8 In. crosscuts
- Convenient portability – weighs only 31.5 Lbs. (tool only, not including battery)

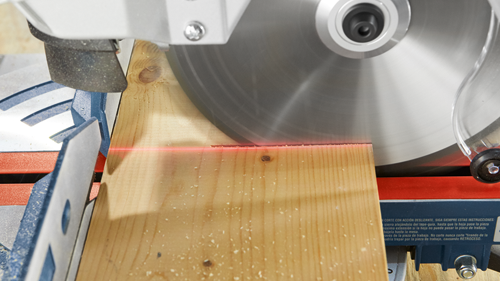

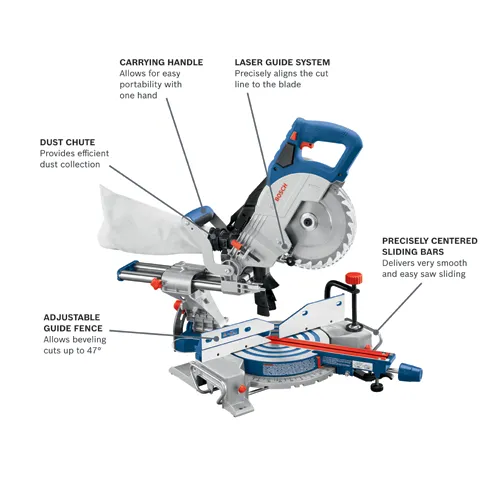

- Accurate laser guide system – precisely aligns the cut line to the blade
- Precisely centered sliding bars – delivers very smooth and easy saw sliding

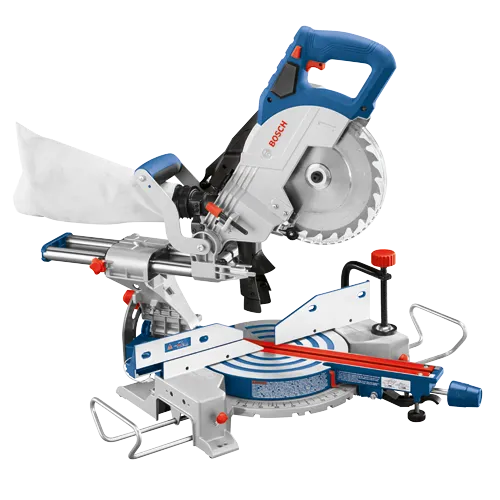

- Dust chute and dust bag – provides efficient dust collection
- Bosch 18V cordless power tools are covered by a five year limited warranty – for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Technical data
The most important data |
|
|---|---|
| Battery Chemistry | Lithium Ion |
| Battery Packed | Outside Tool, Battery not included |
| Bevel Angle Range | 0° to 45° |
| Bevel Stops | 45° |
| Blade Diameter (in) | 8.5 |
| Blade Size | 8-1/2” |
| Case Type | No Case Included |
| Category | Benchtop |
| Height in | 18 " |
| Length in | 18.5 " |
| Max. Base Molding Against Fence | 2-3/4 in. |
| Max. Crown Molding (38° Spring) Angled Against Fence | 3-5/8 in. |
| Max. Crown Molding (45° Spring) Angled Against Fence | 3-3/4 in. |
| Max. Cut Capacity - 0° Miter 0° Bevel | 2-3/4 in. x 10-5/8 in. |
| Max. Cut Capacity - 0° Miter 45° Left Bevel | 1-1/2 in. x 10-5/8 in. |
| Max. Cut Capacity - 45° Miter 0° Bevel | 2-3/4 in. x 7-1/2 in. |
| Max. Cut Capacity - 45° Miter 45° Left Bevel | 1-1/2 in. x 7-1/2 in. |
| Max. Depth at Max Bevel | 1.5 |
| Miter Angle Range | 0° - 47°, Left and Right |
| Miter Detents | 0°, 15°, 22.5°, 45° (Left/Right) |
| Miter Positive Stops | 0°, 15°, 22.5°, 45° (Left/Right) |
| Voltage | Not Applicable |
| Weight | 31.5 lb |
| Width in | 32 " |
| Works With | Miter Saw Stands, T1B, T4B, GTA3800, Crown Molding Stops (Pair), MS1233, Length Stop, MS1234, Anti-Static Vacuum Hoses, VH1622A and VH1635A (by means of anti-static adapter included with those hoses), VAC008, and most other 22 mm and 35 mm anti-static hoses, Other Vacuum Hoses, VH1022, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 22 mm and 35 mm hoses, Adapters for 1-1/4 in and 1-1/2 in. Vacuum Hoses, VAC024 (VAC002 is not compatible) |
| Includes |
(1) GCM18V-08 18V 8-1/2 In. Single-Bevel Slide Miter Saw (1) 8-1/2 In. 24-tooth Carbide-Tipped Blade (1) Material Clamp (1) Wrench (1) Dust Bag |
GCM18V-08N Professional: Further information
Product Highlights

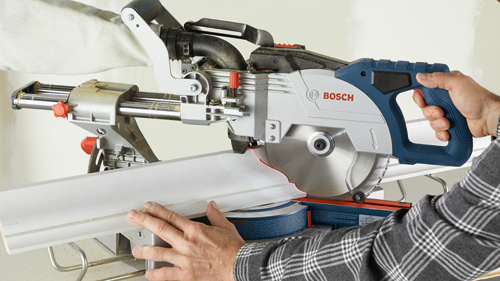

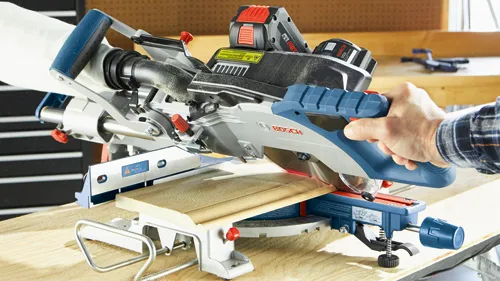

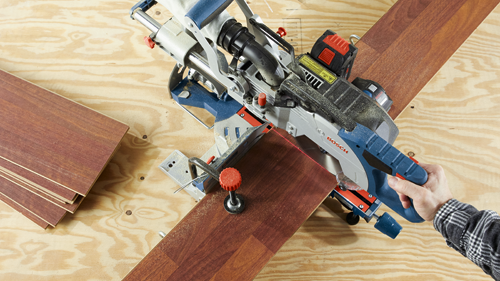

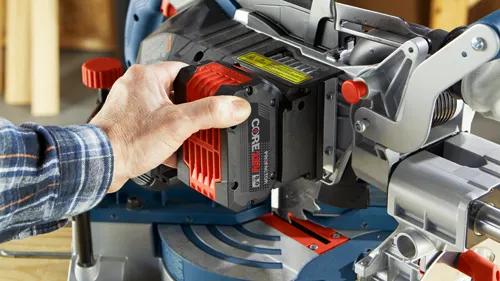

This Bosch miter saw combines professional cutting capacity with outstanding portability to deliver a truly mobile, cordless solution to the jobsite. The GCM18V-08N Surgeon bare tool kit features an 8-1/2 In. single-bevel, sliding compound miter saw delivering a 3-5/8 In. nested crown cutting capacity, cutting from 47° left to 47° right against the fence, which is an exceptional range for a cordless 8-1/2 In. miter saw. At a manageable 31.5 Lbs. (tool only, not including battery), this saw features easy portability while still providing a 10-5/8 In. crosscut capacity. In testing, the saw delivers 377 cuts per charge with a CORE18V 8.0 Ah PROFACTOR Performance Battery. With an accurate laser guide system to precisely align the cut line to the blade, the saw is engineered with precisely centered sliding bars, leading to a very smooth and easy saw sliding. It provides a dust chute and dust bag, providing efficient dust collection.
