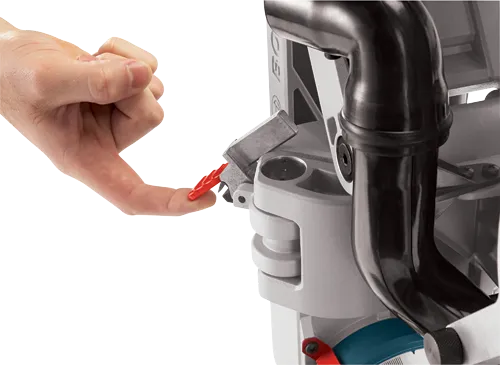

corded-miter-saw-CM12SD-bosch-fence-lock

corded-miter-saw-GCM12SD-bosch-dust-chute

12" Dual-Bevel Glide Miter Saw_GCM12SD_bevel cross cut

Bosch-corded-tool-warranty-ecommerce-badge-2000x2000

GCM12SD Professional

Miter Saws

12 In. Dual-Bevel Glide Miter Saw

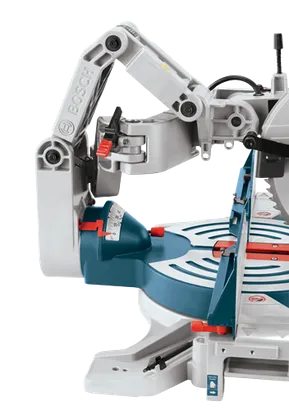

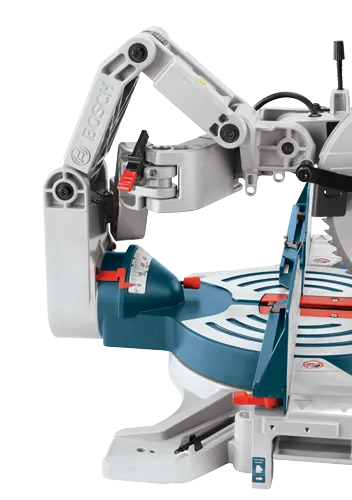

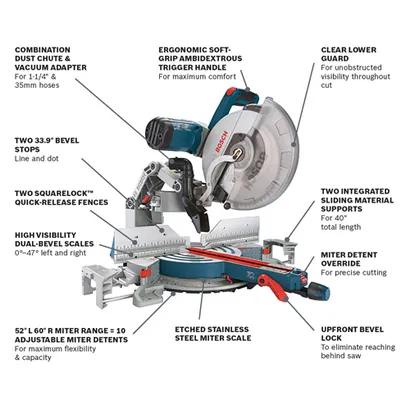

The Bosch GCM12SD is a 12 In. Dual-Bevel Glide miter saw that features a smooth cutting motion, accurate performance and a space-saving design of the Bosch-exclusive Axial-Glide system

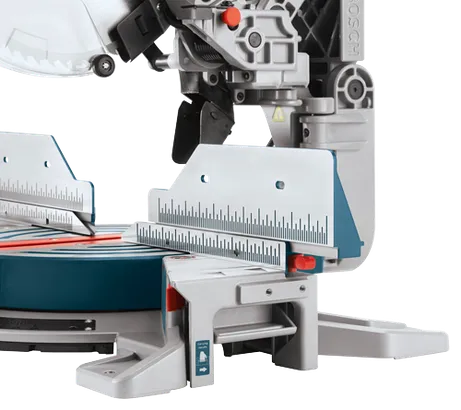

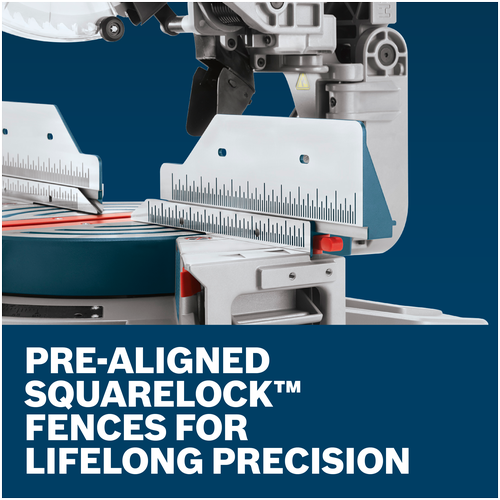

Pre-aligned SquareLock fences help the saw maintain precision throughout its life

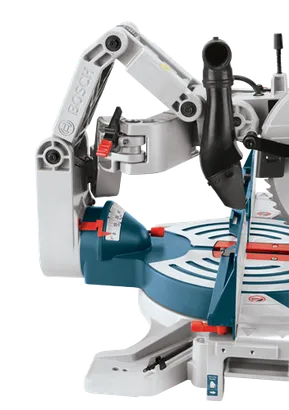

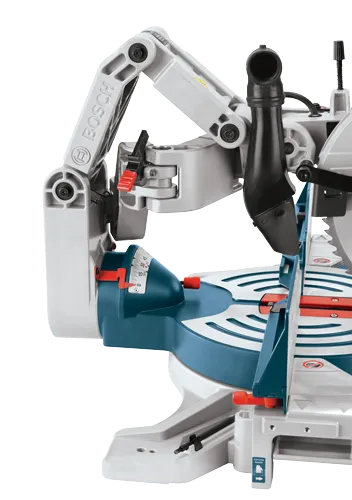

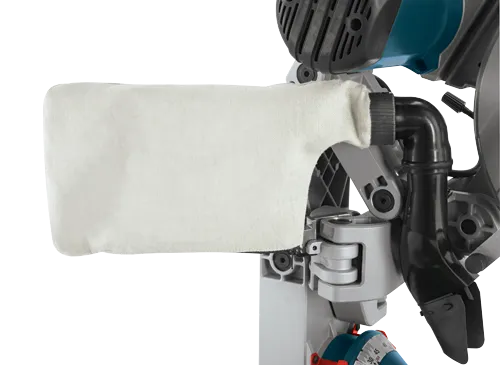

A soft-grip ambidextrous handle along with a combination dust chute and vacuum adapter add to user comfort

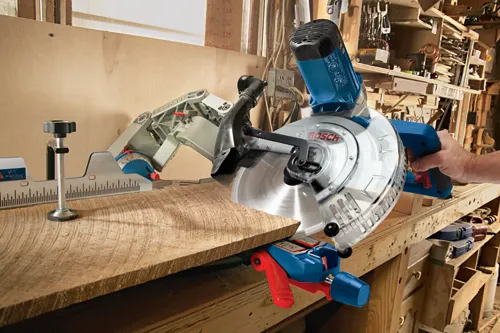

The saw also offers a large cutting capacity, easy-to-read bevel and miter scales with detents at common angles, and easy-access upfront controls
Integrated expanding base extensions: 60% more left-to-right material support than leading competitor – 40 In. left to right

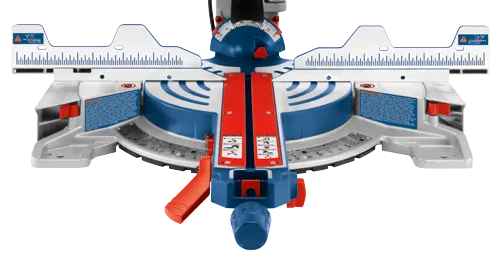

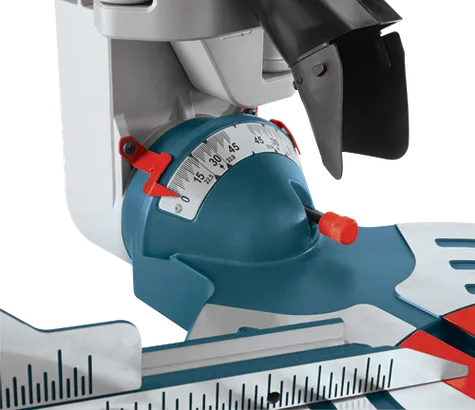

Large easy-to-read uniform bevel and stainless steel miter scales: 52° left/60° right miter capacity; 47° left/47° right bevel capacity with marked detents and roof pitch angles
Adjustable miter detents: detents at 0°, 15°, 31.6°, 22.5°, 45°, 60° right super-accurate and durable design
Push-button miter detent override – easy-to-access thumb actuated control right up front for fine miter angle adjustment
Bevel detents: 0, 33.9°, 45° left/right for accurate cuts

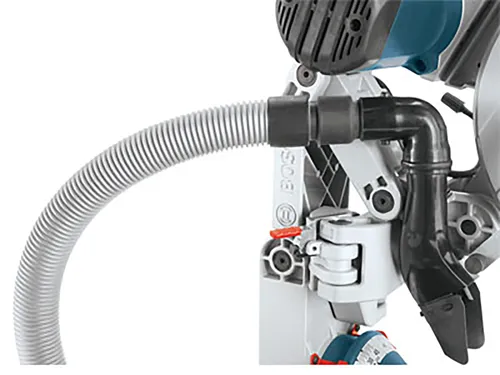

Category best 90% dust collection – optimized for cutting 2x material with a vacuum
Ergonomic, ambidextrous trigger handle with soft grip – large form fitting ergonomic handle provides comfort for all-day use

View more View less

Your Selected Variant

GCM12SD Professional

Technical data

The most important data
Amperage	15
Bevel Angle Range	47° left and 47° right
Bevel Stops	0°, 33.9°, 45° and 47° (L/R)
Blade Diameter (in)	12
Blade Size	12"
Category	Compound Miter Saws
Dust Collection	Yes
Electric Motor Brake	Yes
Height in	27 "
Height of Table from Base Feet to Table Surface - In.	3.75
Length in	32.375 "
Max. Base Molding Against Fence	3-7/8 In. (6-3/4 In. from 0° to 47 L)
Max. Crown Molding (38° Spring) Angled Against Fence	5-1/4 In. (5-1/2 In. from 0° to 47° L)
Max. Crown Molding (45° Spring) Angled Against Fence	6 In.
Max. Cut Capacity - 0° Miter 0° Bevel	3-1/2 In. x 13-1/2 In. (4x14 Dimensional Lumber)
Max. Cut Capacity - 0° Miter 45° Left Bevel	2 In. x 13-1/2 In. (2x14 Dimensional Lumber)
Max. Cut Capacity - 0° Miter 45° Right Bevel	1-1/2 In. x 13-1/2 In. (2x14 Dimensional Lumber)
Max. Cut Capacity - 45° Miter 0° Bevel	3-1/2 In. x 9-1/2 In. (4x10 Dimensional Lumber)
Max. Cut Capacity - 45° Miter 45° Left Bevel	2 In. x 9-1/2 In. (2x10 Dimensional Lumber)
Max. Cut Capacity - 45° Miter 45° Right Bevel	1-1/2 In. x 9-1/2 In. (2x10 Dimensional Lumber)
Miter Angle Range	52° Left, 60° Right
Miter Detents	0°, 15°, 22.5°, 31.6°, 45°, (Left/Right) 60°, (Right)
Miter Positive Stops	0°, 15°, 22.5,° 31.6°, 45° (Left/Right), 60° (Right)
No Load RPM	4,000
Separate On/Off Speed Control	Blank
Voltage	120V
Weight	65 lb
Width in	26.5 "
Works With	Miter Saw Stands, T1B, T4B, GTA3800, Crown Molding Stops (Pair), MS1233, Length Stop, MS1234, Anti-Static Vacuum Hoses, VH1622A and VH1635A (by means of anti-static adapter included with those hoses), VAC008, and most other 22 mm and 35 mm anti-static hoses, Other Vacuum Hoses, VH1022, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 22 mm and 35 mm hoses, Adapters for 1-1/4 in and 1-1/2 in. Vacuum Hoses, VAC024. (The VAC002 adapter is not compatible with the GCM12SD.)
Includes	(1) GCM12SD 12 In. Dual-Bevel Glide Miter Saw (1) Premium 12 In. 60-Tooth Carbide-Tipped Blade (1) Wrench (1) Toolless Vertical Work Clamp (1) Dust Bag/Assembly (1) Vacuum Adapter Elbow

GCM12SD Professional: Further information

Product Highlights

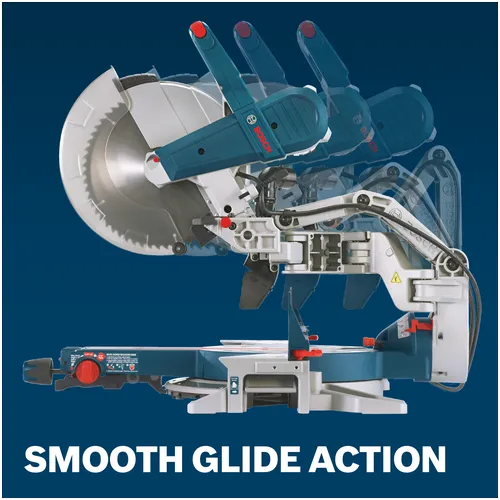

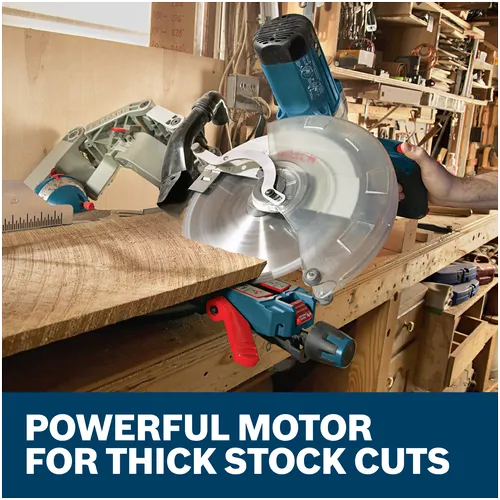

The Bosch-exclusive Axial-Glide offers wider cross-cuts, enhanced alignment and smooth glide for the life of the tool. The Bosch miter saw's 15 Amp motor delivers no-load speeds of 4,000 RPM for quick, accurate cuts in many materials. For added convenience and versatility, the saw is compatible with a variety of 12 In. blades and it has a clear lower guard to provide unobstructed cut-line visibility. The GCM12SD provides easy adjustments with upfront bevel and miter controls and detents at common angles. The saw's all-metal bevel lock lever and range selector are located up front to make bevel adjustments easy.
