GBH2-28L Professional
SDS-plus® Hammers

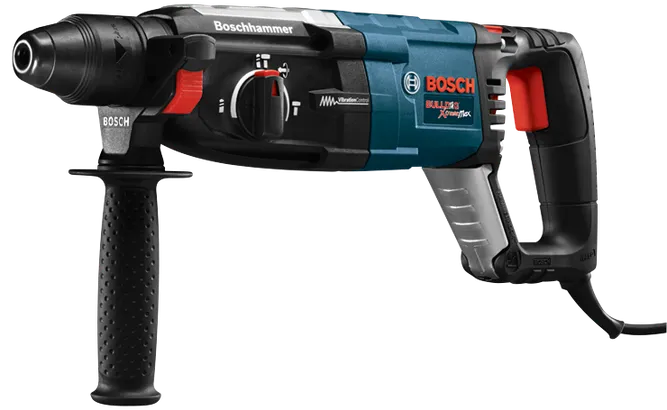

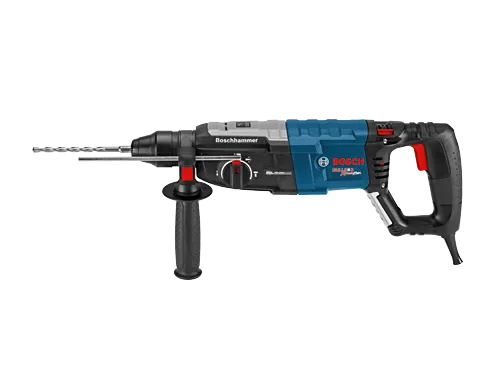

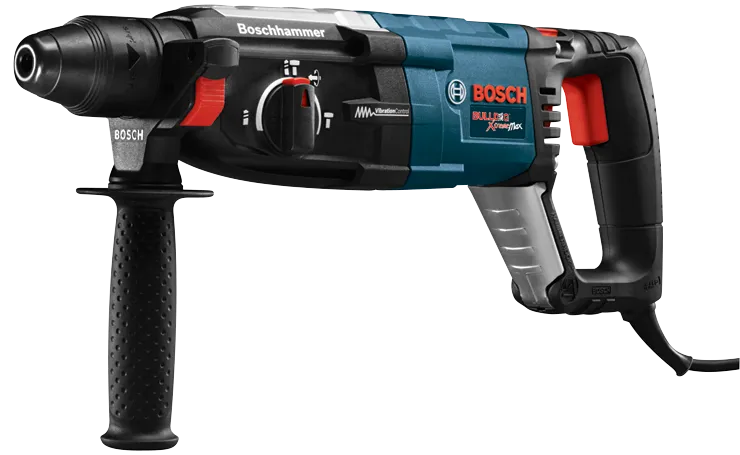

SDS-plus® Bulldog™ Xtreme Max 1-1/8 In. Rotary Hammer

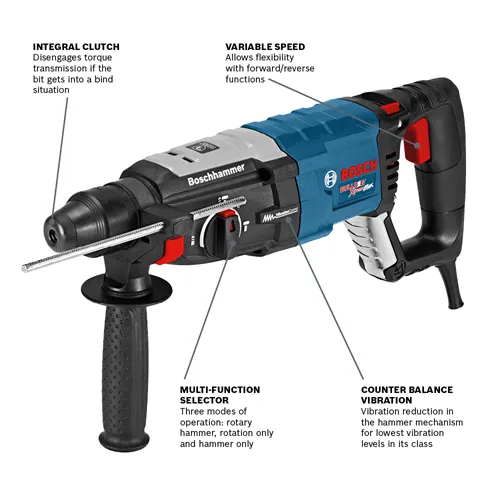

- Robust 8.5-amp motor – delivers 2.4 Ft.-Lbs. of impact energy for reliable Bulldog performance
- KickBack Control – uses an integrated sensor to stop tool rotation during bit bind-up situations
- Counter-balanced Vibration Control – improves user comfort during drilling or chiseling applications
- Vario-Lock – rotates and locks chisel to optimize working angle
- Variable-speed trigger with reversing – offers accurate bit starting
- HammerHook – allows quick tool storage during the job

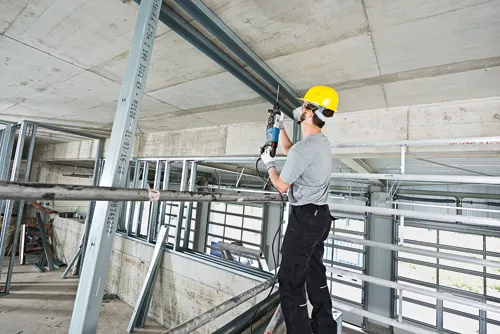

- D-handle design – ideal for overhead and downward drilling applications
- Multi-function selector – three modes of operation: drilling only, hammer drilling and chiseling
- SDS-plus® bit system – tool-free bit changes with automatic bit locking
Technical data
The most important data |
|
|---|---|
| Amperage | 8.5 |
| Chuck Design | Keyless |
| Chuck Size | 1-1/8 in |
| Drive System | SDS-plus |
| Height in | 6 " |
| Impact Energy/EPTA (ft. lbs.) | 2.4 Ft.-Lbs. EPTA |
| Length in | 17.4 " |
| Material | Plastic Composite |
| Max Bit Diameter | 1-1/8" |
| Max. Capacity in Concrete | 1-1/8" |
| Max. Hole Dia. - Core Bit | 2-5/8" |
| No Load BPM | 0-5,460 |
| No Load RPM | 0-1,230 |
| Rating | 120V |
| Reverse | Yes |
| Variable Speed | Yes |
| Voltage | 120V |
| Weight | 6.9 lb |
| Weight (lbs.) | 6.9 |
| Width in | 3.5 " |

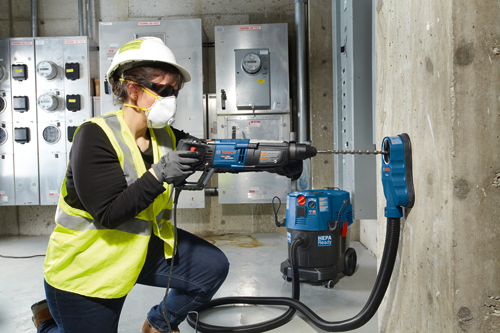

| Works With | 18V On-Tool Dust Extractor, GDE18V-26D, Other Dust Extraction/Collection Hoods, HDC100, HDC200, Right Angle Attachment, RHA-50, Keyless 3-Jaw Chuck with SDS-plus® Shank, HA3JAW |
| Includes |

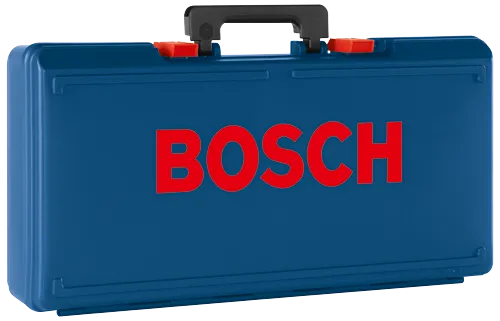

(1) GBH2-28L SDS-plus® Bulldog™ Xtreme Max 1-1/8 In. Rotary Hammer (1) Auxiliary Handle (1) Depth Gauge (1) Carrying Case |
GBH2-28L Professional: Further information
Product Highlights
The Bosch GBH2-28L SDS-plus® Bulldog™ Xtreme Max 1-1/8 In. Rotary Hammer features a powerful 8.5 Amp motor and KickBack Control. This feature is an integrated sensor to stop tool rotation during bit bind-up situations. A tool that upholds the tradition in the line of legendary Bosch Bulldog hammers, the GBH2-28L combines user comfort with versatile drilling and hammering functions. It provides counter-balanced Vibration Control for more comfortable handling of the hammer. Ideal for masonry pros or general contractors, this tool weighs only 6.9 Lbs. but delivers 2.4 Ft.-Lbs. of impact energy and 0-5,100 BPM. It has a multifunction mode selector for drilling versatility – drilling only, hammer drilling and chiseling. This Bulldog has ideal features for hard-working pros, including a variable-speed reversing trigger for accurate bit starting, Vario-Lock positioning for the optimal chiseling angle, a HammerHook that allows the user to hang the tool on the job and an ergonomic D-handle for user comfort. The SDS-plus® system provides for tool-free bit changes.
