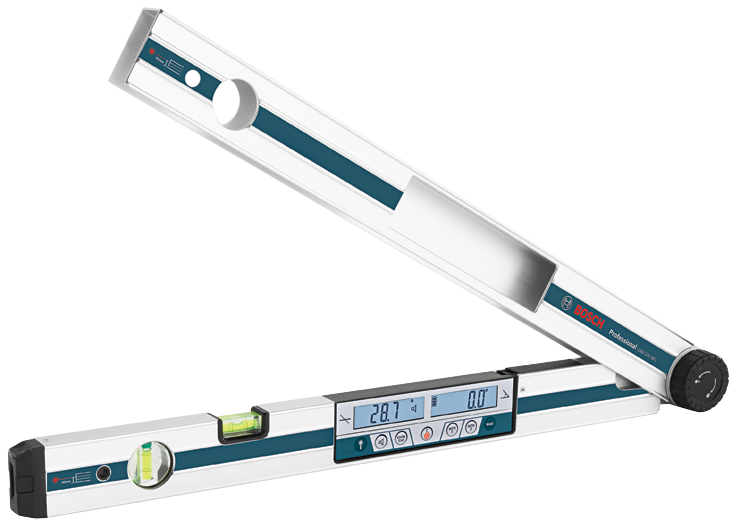

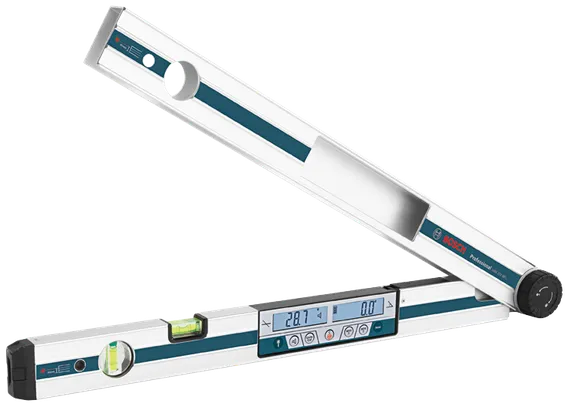

GAM 270 MFL Professional
Digital Levels, Digital Angle Finders and Inclinometer
Digital Angle Finder and Inclinometer
- Five tools in one: digital angle finder, inclinometer, miter calculator, protractor and level
- Digital angle finder delivers accurate angle targets
- Stores angle and inclinometer measurements in memory for repeated use
- Inclinometer provides precise measurements in degrees and percentages

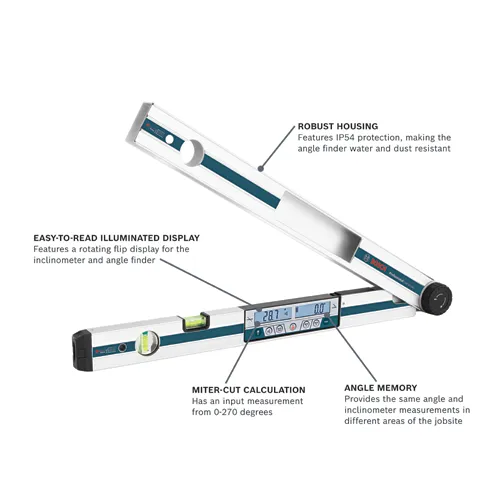

- Two easy-to-read illuminated, flip displays for inclinometer and angle finder
- Leg extensions – 24 In. long
- Manual angle finder leg lock, to reposition the same angle

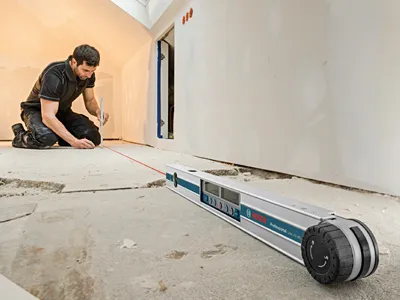

- Integrated laser for inclination measurements transfer up to 100 ft
- Robust housing, with IP 54 protection

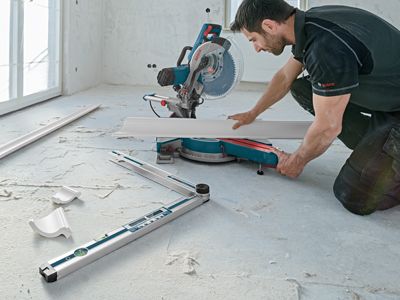

- Cut calculator for easy angle adjustments, as well as a compound miter calculator
- Easy field calibration for consistent results
- Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Functions & key features
Technical data
The most important data |
|
|---|---|
| Angle Accuracy | ±0.1° |
| Battery | 4 AA 1.5V Batteries |
| Battery Life | 50 Hours |
| Compound Cut Input Angle Range | 0° – 180° |
| Height in | 2.4 " |
| IP Rating | IP 54 |
| Leg Extension Length | 16" |
| Leg Extension Range | 0” — 6-3/4” |
| Length in | 26.9 " |
| Leveling Accuracy (Vial) | +/- 0.05° |
| Material | Aluminum |
| Range | 0° to 270° |
| Readout Accuracy | +/-0.1° |
| Simple Miter Cut Input Angle Range | 0° – 220° |
| Size in | 26.9" x 2.0" x 2.4" |
| Weight | 2.4 lb |
| Width in | 2 " |
| Includes |
(1) GAM 270 MFL Digital Angle Finder and Inclinometer (1) Leg Extension (4) AA Batteries (1) Carry Case |
GAM 270 MFL Professional: Further information
Product Highlights
The Bosch GAM 270 MFL Digital Angle Finder and Inclinometer is five tools in one: a digital angle finder, an inclinometer, a miter cut calculator, a protractor and a digital level. The angle finder provides accurate angle targets, while the inclinometer offers precise measurements in degrees. The tool is also equipped with an integrated laser, allowing the user to transfer inclination measurements up to 100 Ft. The tool has two easy-to-read illuminated, flip displays, one for the inclinometer and one for the angle finder. Users are able to easily reuse and transfer save measurements with the hold function. The cut calculator provides easy saw angle adjustments and a compound miter calculator. Users can find the miter angle using the tool's legs, which have an angle range of 0-270°. The compound miter calculator is used to measure joint angles that are not perpendicular. The tool has clearly labeled buttons for straightforward calculations. The angle finder has robust housing with IP 54 protection.
