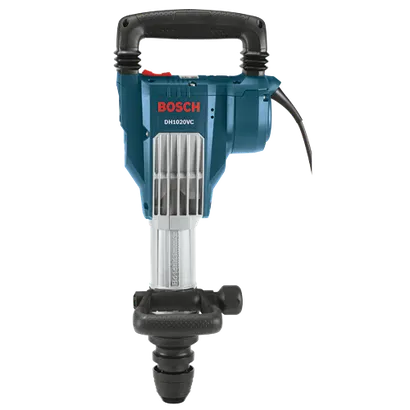

DH1020VC Professional
Demolition Hammers

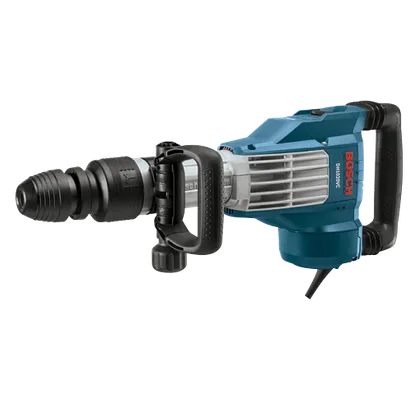

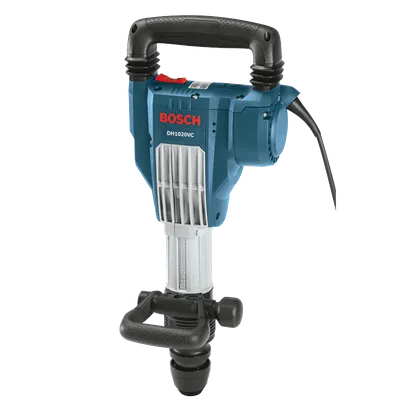

15 Amp SDS-max® Demolition Hammer

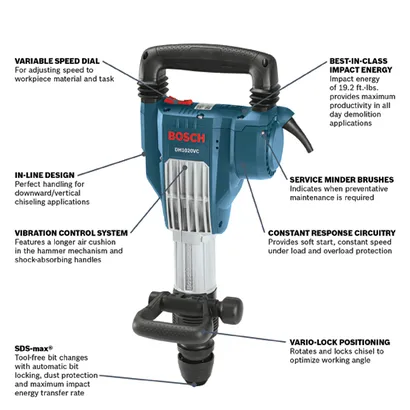

- In-line design – better weight distribution for concrete chiseling and light-duty demolition in horizontal applications
- Best-in-class impact energy – 17 Ft.-Lbs. provides maximum concrete removal for productivity
- Power-to-weight ratio – 15.0 Amp demo hammer delivers 1,700 BPM at 25.1 Lbs. weight
- Vibration Control technology – reduces vibration in hammer mechanism and at handle for improved comfort in all-day demolition applications
- Constant Response circuitry – reliable operation with constant speed under load, soft-start control and overload protection
- Vario-Lock positioning – locks chisel in one of 12 positions for optimized work angle
- 360° auxiliary handle – operator comfort due to a wide range of positioning
- Variable-speed dial – accurate bit starting and controlled chiseling
- SDS-max® bit system – ease of use with tool-free bit changes with automatic bit locking and maximum impact-energy transfer rate
- Service Minderlight – indicates when preventative maintenance is required
- Padded rear handle – for additional comfort
Technical data
The most important data |
|
|---|---|
| Adjustable Handle Position | Yes |
| Amperage | 15 |
| Chuck Design | Keyless |
| Chuck Size | SDS-Max |
| Height in | 9 " |
| Impact Energy | 17.0 ft.-lbs. |
| Impact Energy/EPTA (ft. lbs.) | 17.0 ft./ lbs. EPTA |
| Length in | 27.5 " |
| Material | Plastic, metal |
| No Load BPM | 850-1,800 |
| Rating | 120V |
| Variable Speed | Yes |
| Voltage | 120V |
| Weight | 25.1 lb |
| Width in | 5 " |
| Works With | Dust Extraction/Collection Hood, HDC300, HDC400 (The HDC400 can be used with the DH1020VC only with downward-pointing applications.), SDS-max® Hammer Adapter for SDS-plus® Accessories, HA1030, SDS-max® Hammer Adapter for Spline Accessories, HA1031 |
| Includes |
(1) DH1020VC 15 Amp SDS-max® Demolition Hammer (1) Auxiliary Handle (1) Grease Tube (1) Carrying Case |
DH1020VC Professional: Further information
Product Highlights

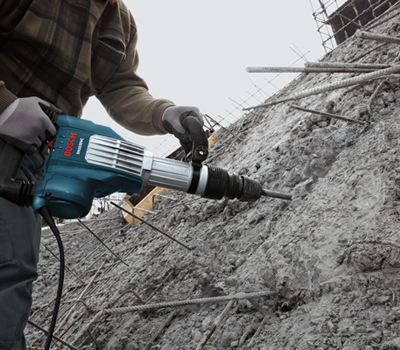

The Bosch DH1020VC SDS-max® demolition hammer features an in-line design, for excellent weight distribution while chiseling concrete in downward or horizontal applications. It is a 15.0 Amp tool that gets the job done, delivering a best-in-class 17.0 Ft.-Lbs. of impact energy and a Max of 1,700 BiM. Yet it weighs only 25.1 Lbs. for an outstanding power-to-weight ratio. This hammer provides Constant Response circuitry for constant power under load, as well as smooth starts and overload protection. The hammer's variable-speed dial allows the operator to match the hammering power to application – from 900 BiM to 1,700 BiM. For added user comfort, it features Vario-Lock positioning for rotating and locking the chisel with precision, a 360° rotating auxiliary handle and a padded rear handle. The SDS-max® chuck system provides tool-free bit changes.
