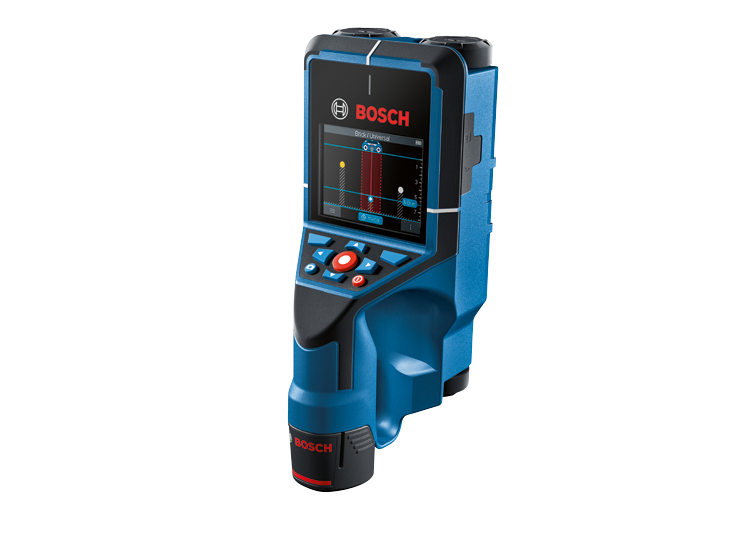

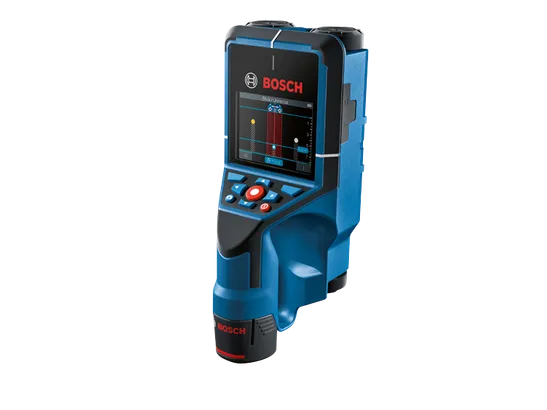

D-TECT200C Professional
12V Max Inspection/Detection Devices
12V Max Wall/Floor Scanner with Radar
- Radar technology – indicating the correct material with reliability, for advanced precision in detection of common objects
- Four different object views – conveys results in various situations

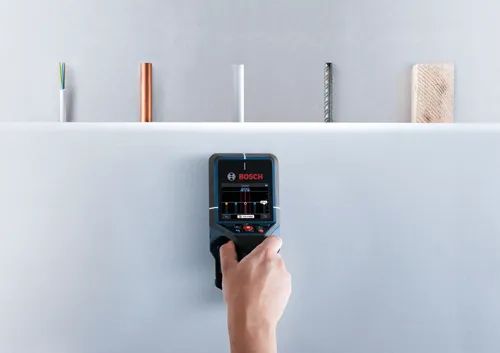

- Depth indication – provides depth view while detecting live and non-live cables, metal and plastic pipes, as well as being a studfinder

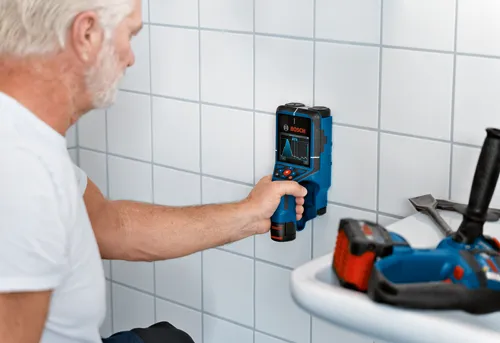

- Leakage detection – allows fast discovery of a leak
- Screenshot feature – supports quick-and-easy documentation, which can be saved and transferred to a computer for further analysis
- USB-C™ and SD card slot – enables quick data transfer
- Spot view – delivers fast results and measurements in small places to scan (such as corners)
- Accurate deep detection – supplies an up-to 8 In. measuring depth of metals to detect even deep objects
- Large display – furnishes easy viewing and clear readability, incorporating a 3.5 In. color display
- Intuitive user interface – gives clear illustration of detected objects
- Bosch 12V Max Li-ion battery compatible – provides outstanding runtime
- Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
- Bosch 12V Max batteries and chargers are covered by a one year limited warranty - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Functions & key features
Technical data
The most important data |
|
|---|---|
| Battery | 12V Max Lithium-ion Battery |
| Case Type | Pouch |
| Height in | 9.5 " |
| IP Rating | IP 5X |
| Length in | 4.5 " |
| Max Detection Depth Copper Wiring | Up to 3-1/8-in (80mm) |
| Max Detection Depth Ferrous Metals (Steel) | Up to 7.9-in (200 mm) |
| Max Detection Depth Non-Ferrous Metals (Copper) | Up to 7.9-in (200 mm) |
| Operating Temperature | 14° F to +95° F (–10 ° C to +50 ° C) |
| Rating | 12V Max |
| Weight | 1.41 lb |
| Weight (lbs.) | 1.41 |
| Width in | 4.17 " |
| Works With | Batteries, BAT414, GBA12V30, Chargers, GAL12V-20, GAL12V-40, GAX1218V30 |
| Includes |

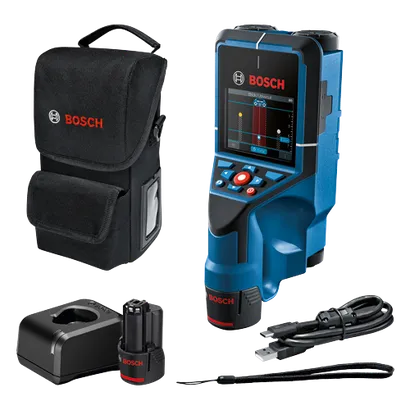

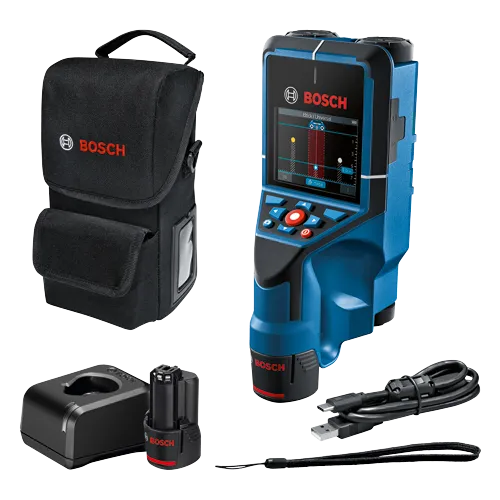

(1) D-TECT200C 12V Max Wall/Floor Scanner (1) BAT414 12V Max Lithium-Ion 2.0 Ah Battery (1) GAL12V-20 12V Max Lithium-Ion Battery Charger (1) USB Cable (1) Soft Pouch |
D-TECT200C Professional: Further information
Product Highlights

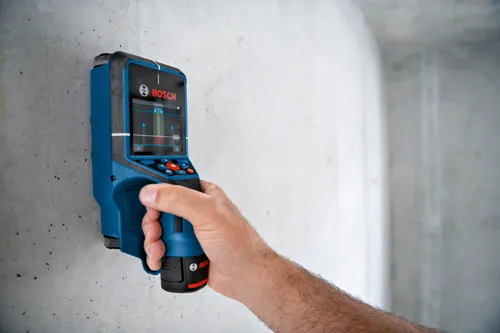

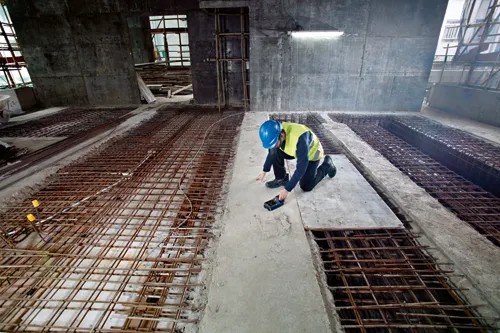

This wall and floor scanner features radar technology, which is accurate and reliable, indicating the correct material. The Bosch D-TECT200C 12V Max Wall/Floor Scanner delivers advanced precision. Not just a stud finder, it detects live and non-live cables, rebar, metal, plastic pipes and wooden studs, with depth indication of the object. It has leakage detection, which allows fast discovery of a leak. The scanner’s screenshot feature supports quick-and-easy documentation. It can be saved and transferred to a computer for further analysis. The product software can be updated remotely. The USB-C™ and SD card slot enables quick data transfer. The spot view delivers fast results and measurements in small places to scan (such as corners), and the scanner provides about a 7-1/2 In. measuring depth to detect even deep objects. The 3.5 In. color display provides clear readability, and the user interface is intuitive, providing clear illustration of detected objects. It runs on Bosch 12V Max Li-ion batteries for outstanding runtime.
