Miter Saws
CM8S Professional
Miter Saws

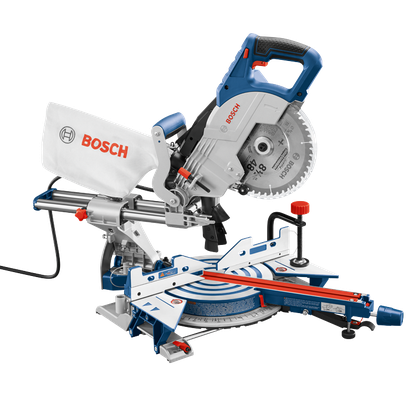

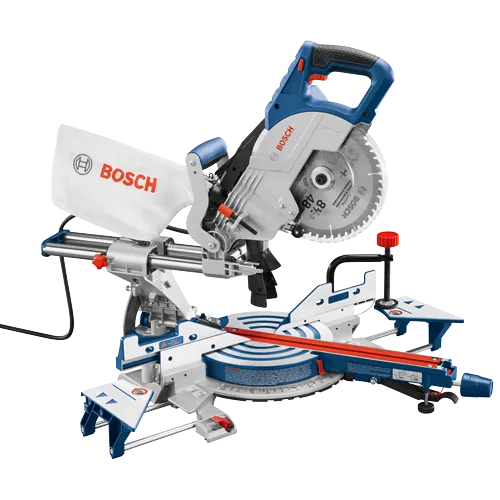

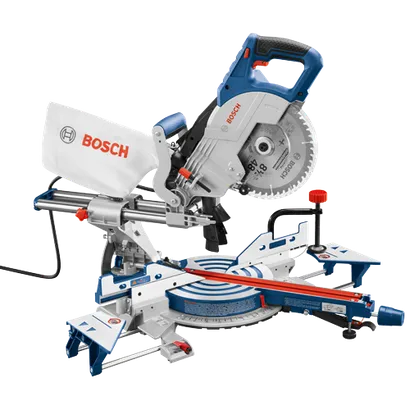

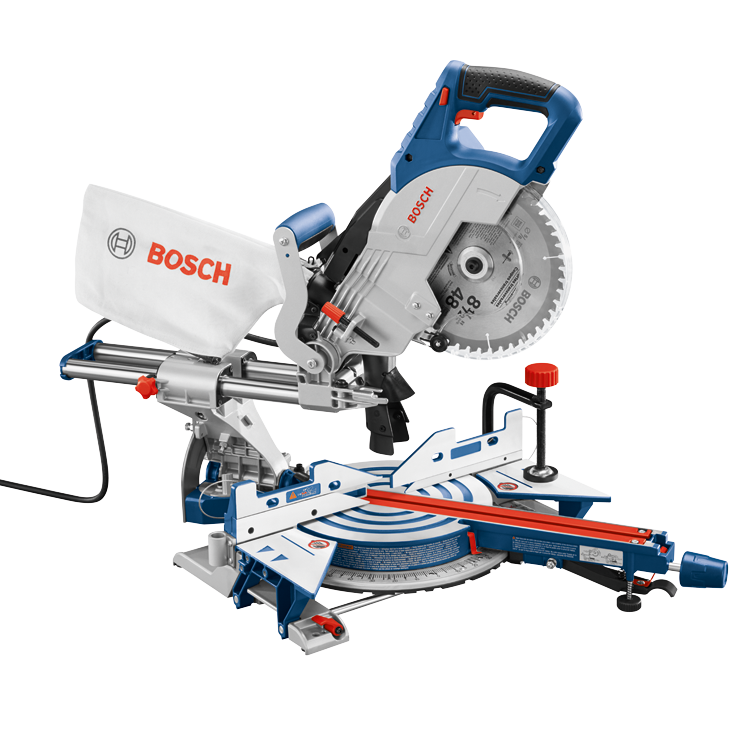

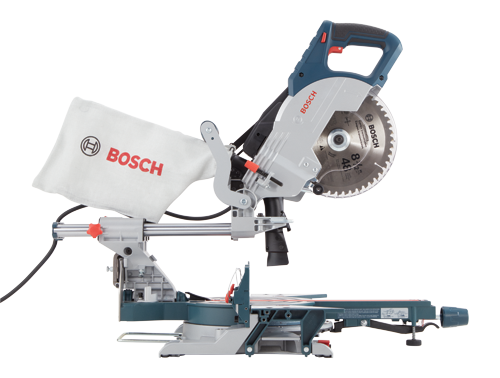

8-1/2 In. Single-Bevel Slide Miter Saw
- Ultimate portability – Bosch exclusive design delivers a well-balanced saw with a top carry handle, and a weight of only 37 Lbs. easily provides one-handed portability on and off the job
- Easy access bevel controls – bevel lock lever and bevel turret stops are located on side of tool for quick and easy adjustments
- Integrated expanding base extensions – expands up to 29 In. left to right for additional work-piece support

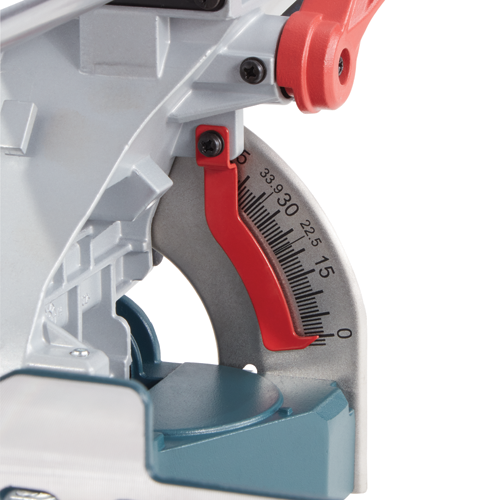

- Large easy-to-read miter and bevel scales – uniform marks from 52˚ left to 60˚ right with 10 adjustable miter detents set at most common cuts
- Adjustable front stabilizing foot – maintains saw stability when performing slide cuts allowing maximum capacity: cross cut 12-1/4” at 0˚, 8” at 45˚, 2-3/4” upright, 3-1/2 crown
- Miter detent override – intuitive easy to access thumb-actuated override

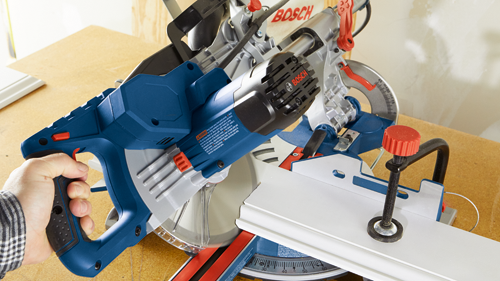

- Ergonomic ambidextrous trigger handle – form fitting handle provides comfort for all day use

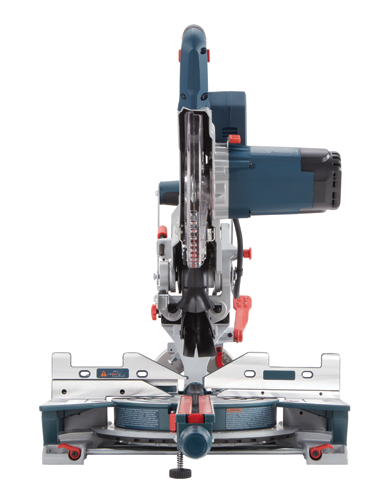

- Clear lower guard – for unobstructed view throughout the cut
CM8S Professional
Technical data
The most important data
Amperage
12
Bevel Angle Range
-2° to 47°
Bevel Stops
0°, 22.5°, 33.9°, 45°
Blade Diameter (in)
8.5
Blade Size
8-1/2”
Case Type
No Case Included
Category
Compound Miter Saws
Crown Molding - Angled Against Fence
3-1/2"
Dust Collection
Yes
Electric Motor Brake
No
Height in
18 "
Height of Table from Base Feet to Table Surface - In.
2.44
Length in
32 "
Max. Base Molding Against Fence
2-3/4 In.
Max. Crown Molding (38° Spring) Angled Against Fence
3-1/2 In.
Max. Crown Molding (45° Spring) Angled Against Fence
3-3/4 In.
Max. Cut Capacity - 0° Miter 0° Bevel
2.75 In. x 12-1/4 In. (Can cut 2x12 Dimensional Lumber)
Max. Cut Capacity - 0° Miter 45° Left Bevel
1-1/2 In. x 12-1/4 In. (Can cut 2x12 Dimensional Lumber)
Max. Cut Capacity - 0° Miter 45° Right Bevel
Not possible
Max. Cut Capacity - 45° Miter 0° Bevel
2.75 In. x 8 In. (Can cut 2x8 Dimensional Lumber)
Max. Cut Capacity - 45° Miter 45° Left Bevel
1-1/2 In. x 8 In. (Can cut 2x8 Dimensional Lumber)
Max. Cut Capacity - 45° Miter 45° Right Bevel
Not possible
Miter Angle Range
52° Left, 60° Right
Miter Detents
0°, 15°, 22.5°, 31.6°, 45°, (Left/Right) 60°, (Right)
Miter Positive Stops
0°, 15°, 22.5,° 31.6°, 45° (Left/Right), 60° (Right)
No Load RPM
5,600
Separate On/Off Speed Control
No
Voltage
120V
Weight
37 lb
Width in
18 "
Works With
Miter Saw Stands, T1B, T4B, GTA3800, Crown Molding Stops (Pair), MS1233, Length Stop, MS1234, Anti-Static Vacuum Hoses, VH1622A and VH1635A (by means of anti-static adapter included with those hoses), VAC008, and most other 22 mm and 35 mm anti-static hoses, Other Vacuum Hoses, VH1022, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 22 mm and 35 mm hoses, Adapter for 1-1/4 in and 1-1/2 in. Vacuum Hoses, VAC002 and VAC024, Adapter for 2-1/2 in. Vacuum Hoses, VAC020
Includes
(1) CM8S 8-1/2 In. Single-Bevel Slide Miter Saw
(1) 8-1/2 In. 40-Tooth Carbide-Tipped Blade
(1) Blade Wrench
(1) Dust Bag Assembly
(1) Toolless Work Piece Clamp
(1) 8-1/2 In. 40-Tooth Carbide-Tipped Blade
(1) Blade Wrench
(1) Dust Bag Assembly
(1) Toolless Work Piece Clamp
CM8S Professional: Further information
Product Highlights

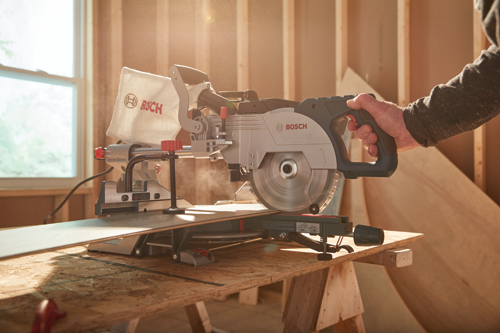

The CM8S 8-1/2 In. single bevel sliding compound miter saw features a Bosch exclusive design delivering a well-balanced saw with a top carry handle at the center of gravity and weighs only 37 pounds. These features easily provide one-handed portability on and off the job. Accessible controls make it easy to change bevel settings without reaching behind the saw. The integrated expanding work piece supports, large easy to read miter and bevel scales, and detent system provides quick and accurate cuts. The CM8S also has the same crosscut capacity (12-1/4 In.) as a 10 In. miter saw, at 30% lighter weight.
