CCS180B Professional
18V Circular Saws

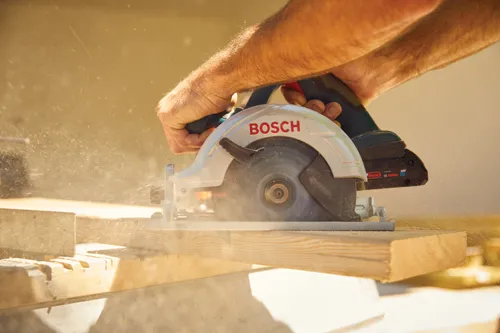

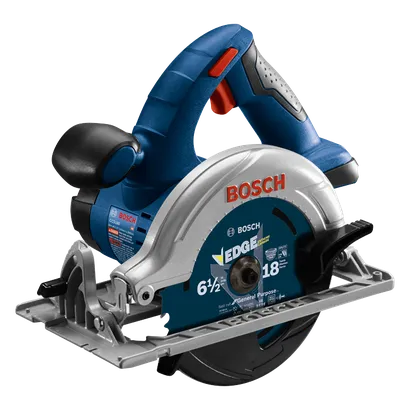

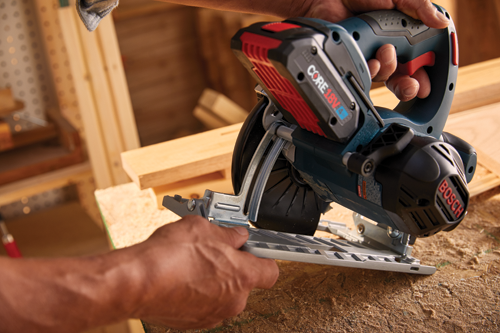

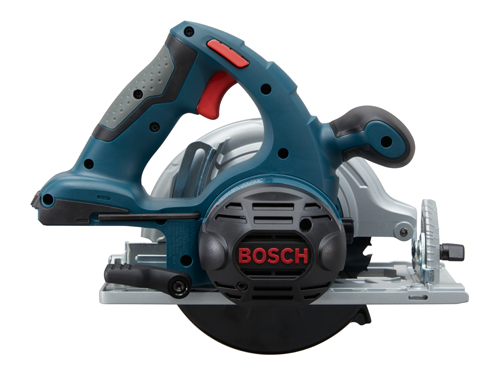

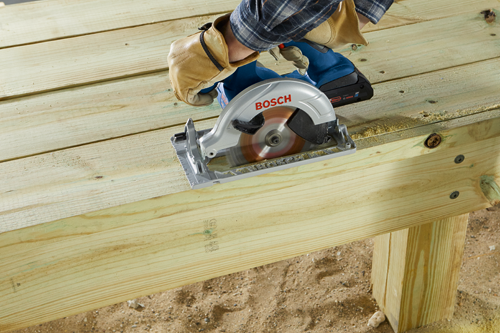

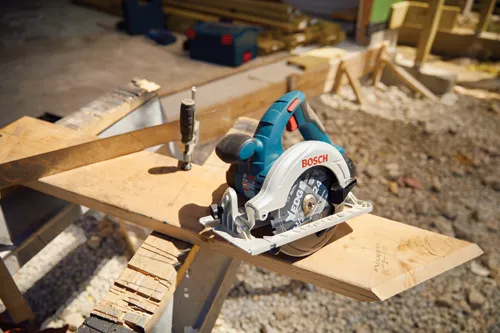

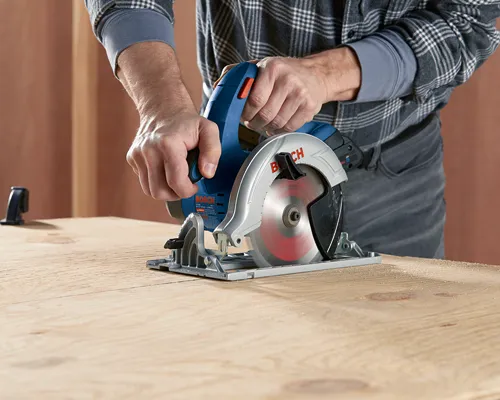

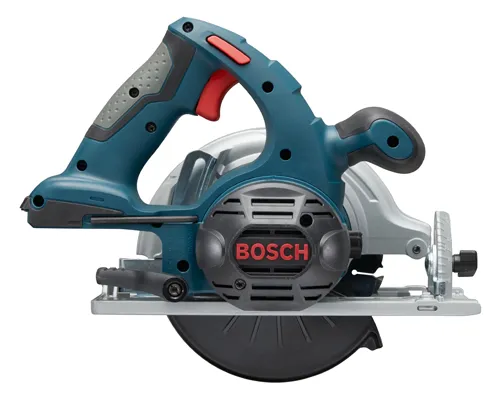

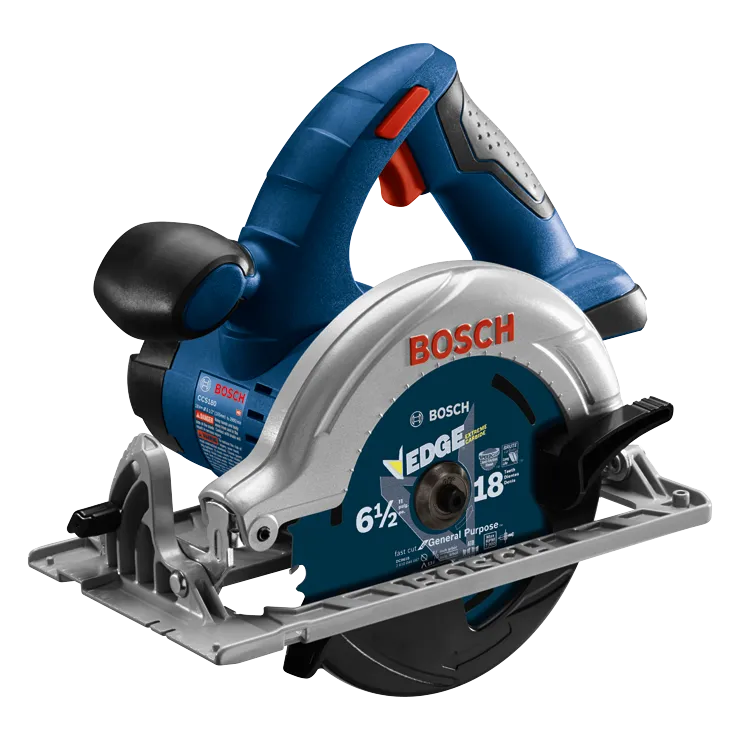

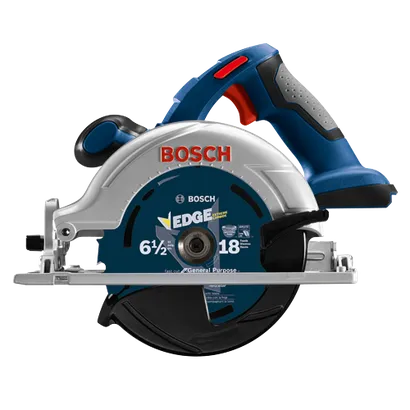

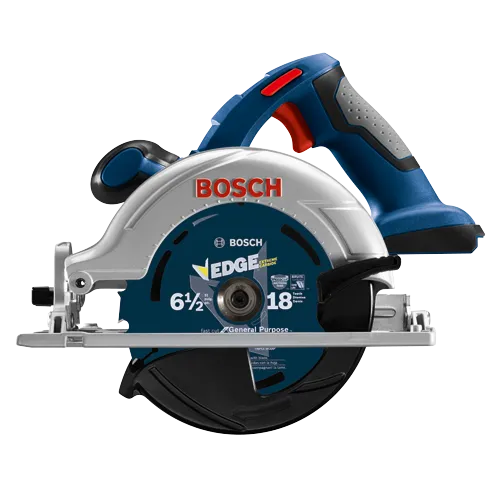

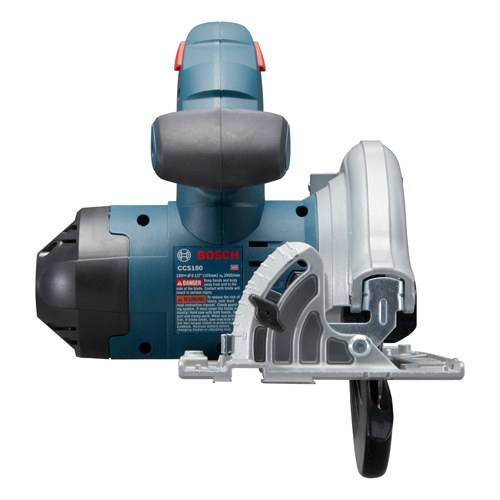

18V 6-1/2 In. Blade-Left Circular Saw (Bare Tool)

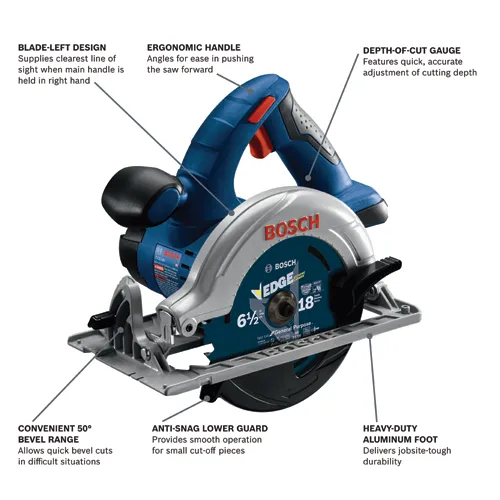

- Ergonomic main handle – angled for ease in pushing the saw forward
- 6-1/2 In. saw blade – cuts through 2 In. at 90 degrees and cuts through 2x material across entire bevel range
- Convenient 50 degree bevel range on saw – contributes enhanced versatility
- Blade-left design – supplies best view of cut line when main handle is held in right hand
- Electronic Motor Protection and Electronic Cell Protection – helps protect tool and battery against overload

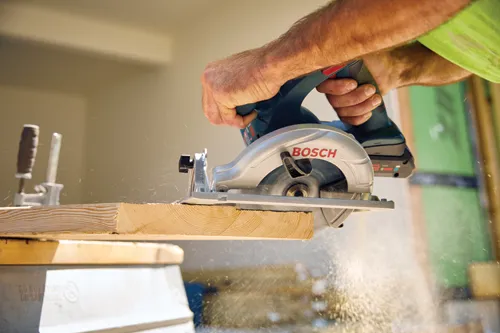

- Dust blower – helps keep saw's cut line visible and free of dust
- Light weight and balanced – saw weighs only 6.6 Lbs. (tool only, without battery) for easy maneuverability
- Heavy-duty aluminum foot and aluminum upper guard on saw – for enhanced tool durability
- Electronic saw brake – stops blade quickly for greater productivity
- Anti-snag lower guard – designed to allow saw to ease into the workpiece
- Easy-to-read depth-of-cut gauge and bevel scale – for quick and accurate cuts
- Ambidextrous lock-off release button on saw – helps prevent unintended starts
- Easy blade changes – saw includes robust spindle lock and on-board blade-change wrench
- AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
- AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
- Bosch 18V cordless power tools are covered by a five year limited warranty - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Technical data
The most important data |
|
|---|---|
| Battery Chemistry | Lithium Ion |
| Bevel | 50° |
| Blade Diameter (in) | 6.5 |
| Blade Size | 6-1/2" |
| Case Type | No Case Included |
| Category | Circular Saws |
| Dust Blower | Yes |
| Dust Collection | No |
| Electric Motor Brake | Yes |
| Height in | 11.2 " |
| Length in | 13.4 " |
| Max. Bevel Capacity (°) | 50 |
| Max. Bevel Cut | 50° |
| Max. Depth of Cut at 45 Deg. | 1-9/16” |
| Max. Depth of Cut at 50 Deg. | 1-1/2" |
| Max. Depth of Cut at 90 Deg. | 2" |
| No Load RPM | 3,900 |
| Rating | 18V |
| Safety / Lock-off | Yes |
| Separate On/Off Speed Control | No |
| Variable Speed | No |
| Weight | 6.7 lb |
| Weight (lbs.) | 6.7 |
| Width in | 8.9 " |
| Includes |

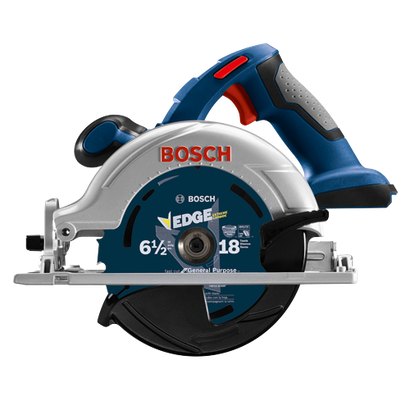

(1) CCS180 18V 6-1/2 In. Blade Left Circular Saw (1) 6-1/2 In. 18-Tooth Carbide Circular Saw Blade (1) Allen® Key |
CCS180B Professional: Further information
Product Highlights
The Bosch CCS180B 18V 6-1/2 In. Blade-Left Circular Saw can easily cut through 2x (“two by”) material across entire bevel range. This cordless saw provides a convenient 50 degree bevel range, which is handy for times when quick bevel cuts are called for in a difficult situations. The easy-to-read depth-of-cut gauge and bevel scale help make accurate cuts simple. Its ergonomic main handle that is angled for ease in pushing the saw forward. The saw includes a simple depth gauge and bevel scale, a dust blower to help keep the cut line visible, and an anti-snag lower guard to ease into the cut. This balanced saw weighs only 6.6 Lbs. (tool only, not including battery). This is a bare tool kit; the battery and charger are sold separately.
