CCS180-B15 Professional
18V Circular Saws

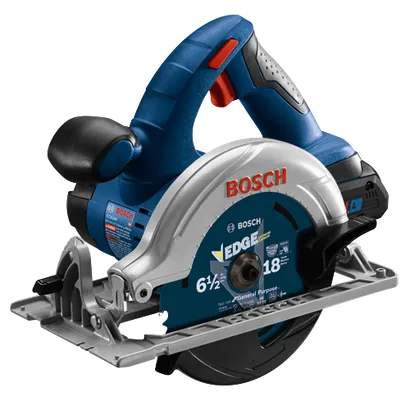

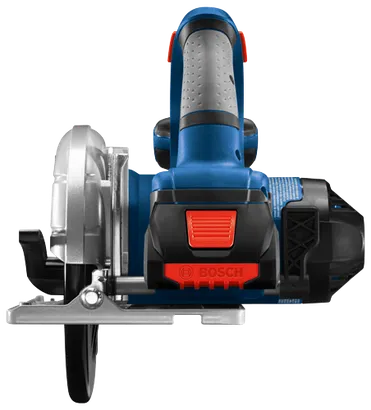

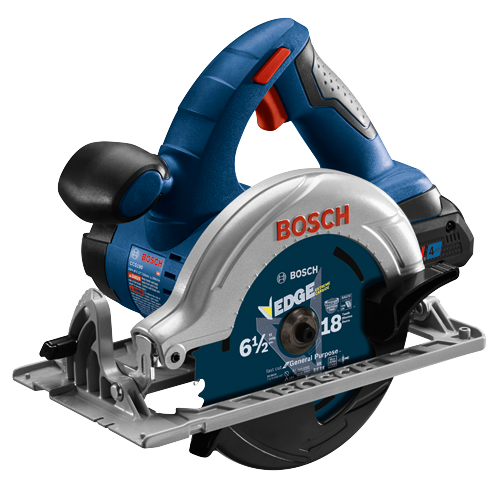

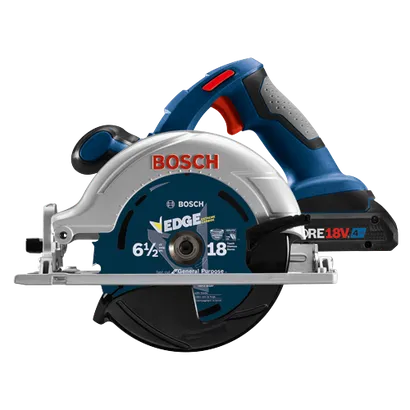

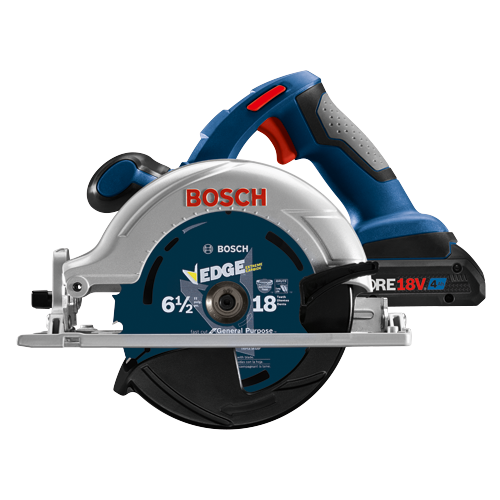

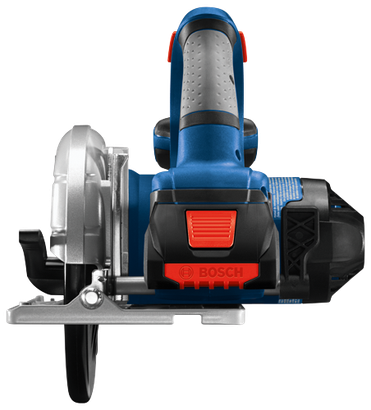

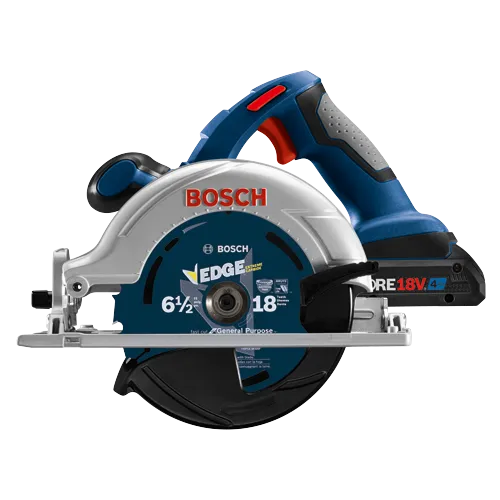

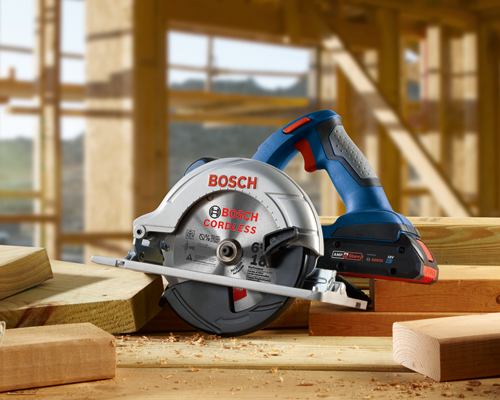

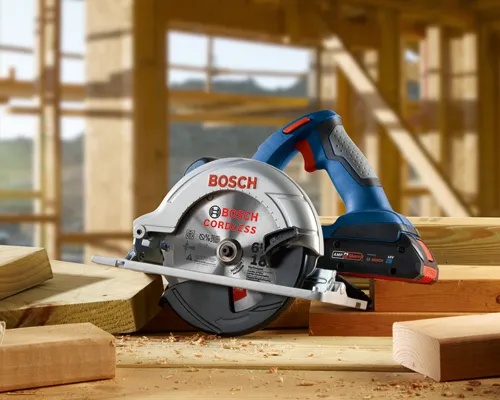

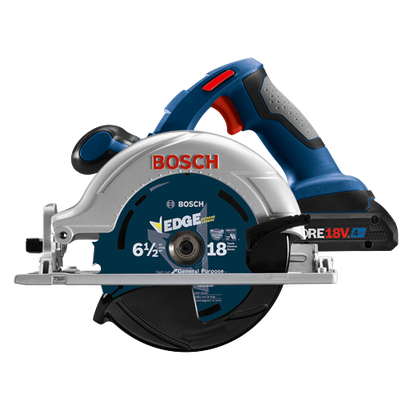

18V 6-1/2 In. Blade-Left Circular Saw Kit with (1) CORE18V® 4 Ah Advanced Power Battery
- Battery system compatibility – accepts all Bosch 18V lithium-ion batteries

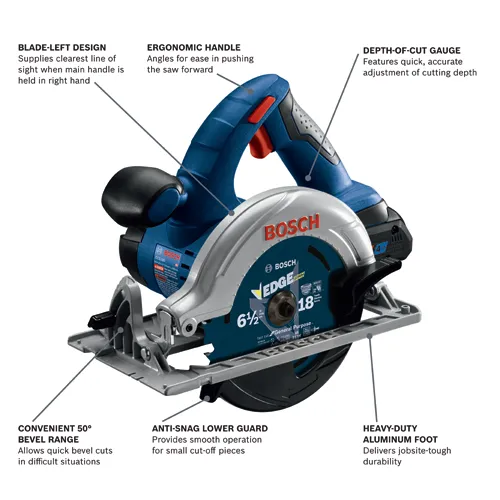

- Ergonomic main handle – angled for ease in pushing the saw forward
- Performance-optimized 18V Li-ion battery – engineered to deliver power and runtime for ideal performance-to-weight ratio
- 6-1/2 In. saw blade – completely cuts through 2 In. at 90° and cuts through 2x (“two by”) material across entire bevel range
- Convenient 50° bevel range on saw – contributes enhanced versatility
- Blade-left design – provides best view of cut line when main handle is held in right hand
- Electronic Motor Protection and Cell Protection – helps protect tool and battery against overload
- Dust blower – helps keep saw's cut line visible and free of dust
- Light weight and balanced – saw weighs only 6.6 Lbs. (tool only, without battery) for easy maneuverability
- Heavy-duty aluminum foot and aluminum upper guard on saw – for enhanced tool durability
- Electronic saw brake – stops blade quickly for greater productivity
- Anti-snag lower guard – designed to allow saw to ease into the workpiece
- Easy-to-read depth-of-cut gauge and bevel scale – for quick and accurate cuts
- Ambidextrous lock-off release button on saw – helps prevent unintended starts
- Easy blade changes – saw includes robust spindle lock and on-board blade-change wrench
- High-power cells – use enhanced 21700 cell technology, combined with advanced battery design for greater efficiency, to transfer more power for a longer time
- Cutting-edge battery cell design – engineered to improve performance in tools used on the jobsite all day
- Bosch-exclusive CoolPack 2.0 technology – provides better cooling than the previous-generation CoolPack system
- AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
- AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
- Bosch 18V cordless power tools and 18V chargers are covered by a five year limited warranty; Bosch 18V batteries are covered by a three year limited warranty - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Technical data
The most important data |
|
|---|---|
| Battery Chemistry | Lithium Ion |
| Bevel | 50° |
| Blade Diameter (in) | 6.5 |
| Blade Size | 6-1/2" |
| Case Type | Bag |
| Dust Blower | Yes |
| Dust Collection | No |
| Electric Motor Brake | Yes |
| Height in | 11.2 " |
| Length in | 13.4 " |
| Max. Bevel Capacity (°) | 50 |
| Max. Bevel Cut | 50° |
| Max. Depth of Cut at 45 Deg. | 1-9/16” |
| Max. Depth of Cut at 50 Deg. | 1-1/2" |
| Max. Depth of Cut at 90 Deg. | 2" |

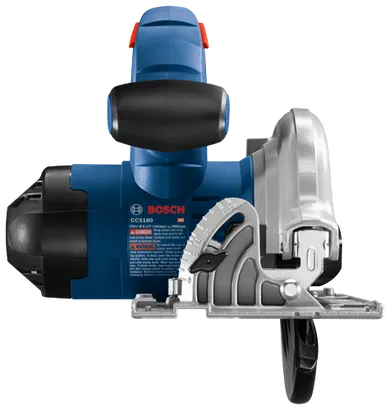

| No Load RPM | 3,900 |
| Rating | 18V |
| Safety / Lock-off | Yes |
| Separate On/Off Speed Control | Blank |
| Variable Speed | No |
| Weight | 6.7 lb |
| Width in | 8.9 " |
| Includes |

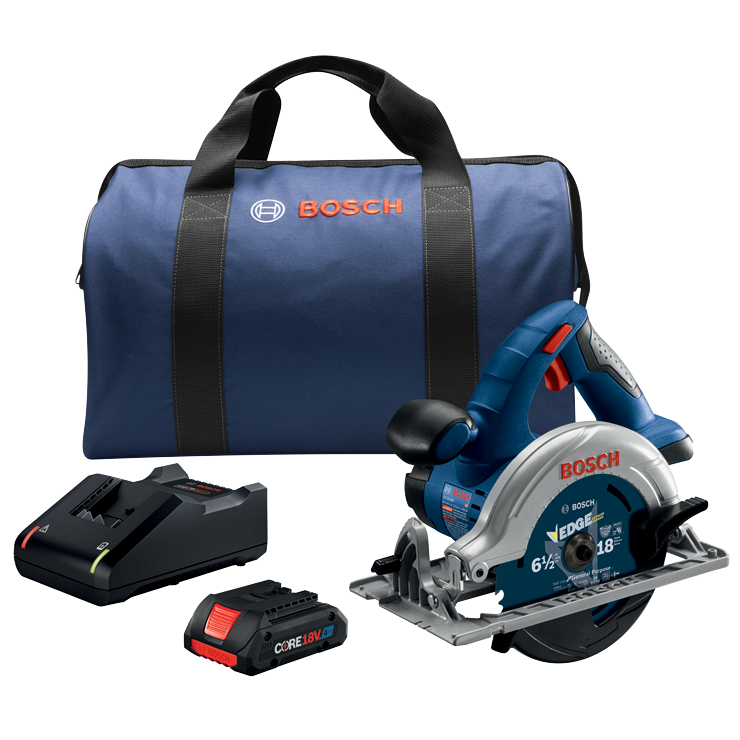

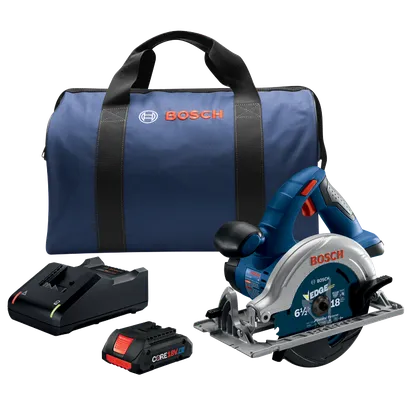

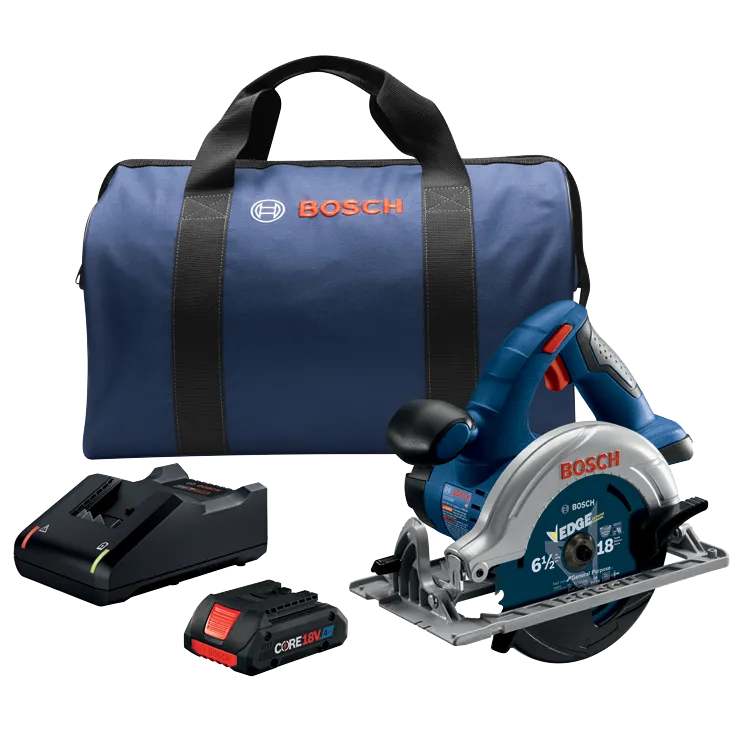

(1) CCS180 18V 6-1/2 In. Blade-Left Circular Saw (1) GBA18V40 18V CORE18V® Lithium-Ion 4 Ah Advanced Power Battery (1) GAL18V-40 Standard Battery Charger (1) 6-1/2 In. 18-Tooth Carbide Circular Saw Blade (1) Hex Wrench (1) Carrying Bag |
CCS180-B15 Professional: Further information
Product Highlights

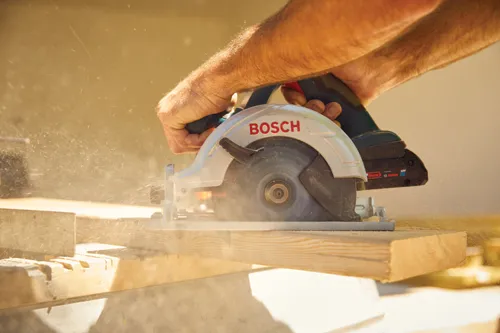

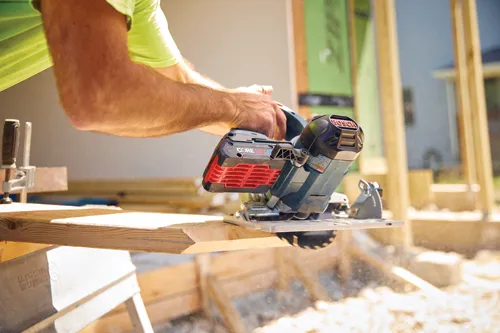

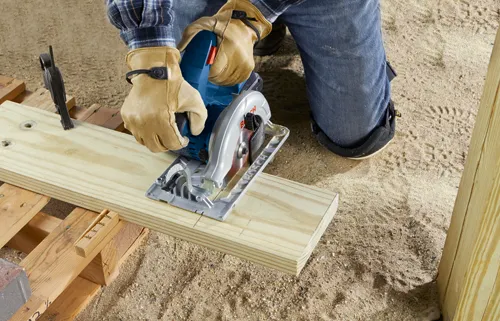

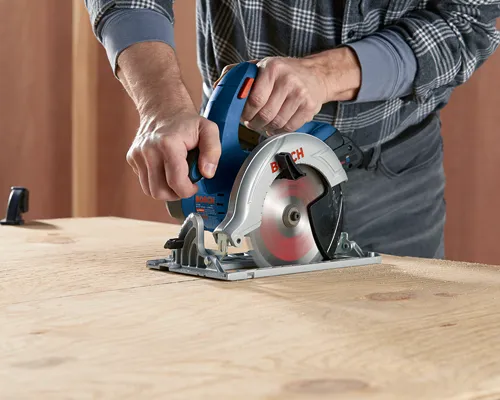

The Bosch CCS180-B15 18V 6-1/2 In. Circular Saw Kit with a CORE18V 4 Ah Advanced Power Battery features a circular saw that easily cuts through 2 In. material. This powerful tool can easily cut through 2x (“two by”) material across entire bevel range of 50°. Its ergonomic main handle that is angled for ease in pushing the saw forward, and a dust blower helps keep the cut line visible. The cordless saw also includes a simple straightforward depth gauge and bevel scale and an anti-snag lower guard to allow easy entry into the workpiece. With a weight of only 6.6 Lbs. (tool only, not including battery), this power saw is an excellent choice pros such as roofers, framers, or deck-builders who often have tough cuts in close or difficult spaces. An electronic brake stops the blade quickly for reduced down time between repeated cuts. The next-gen Lithium-ion CORE18V Advanced Power Battery matches the power of the original two-layer 4.0 Ah battery with half the number of cells. The battery features high-power 21700 cells that deliver great power, combined with advanced battery design for greater efficiency. The CORE18V 4 Ah battery features the Bosch-exclusive CoolPack 2.0 heat-management system and cutting-edge engineering.
