1974-8 Professional
Standard Large Angle Grinders

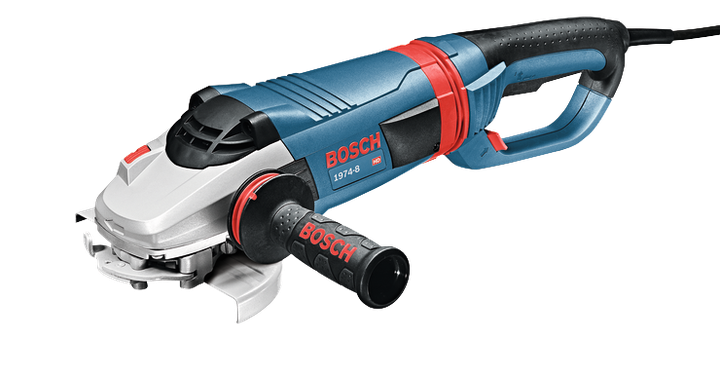

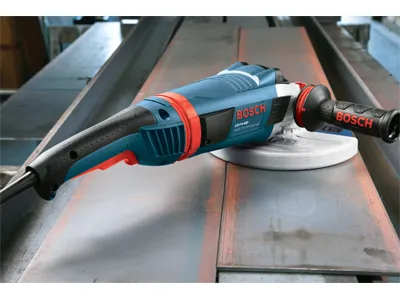

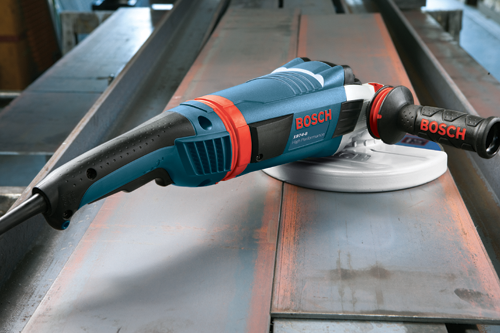

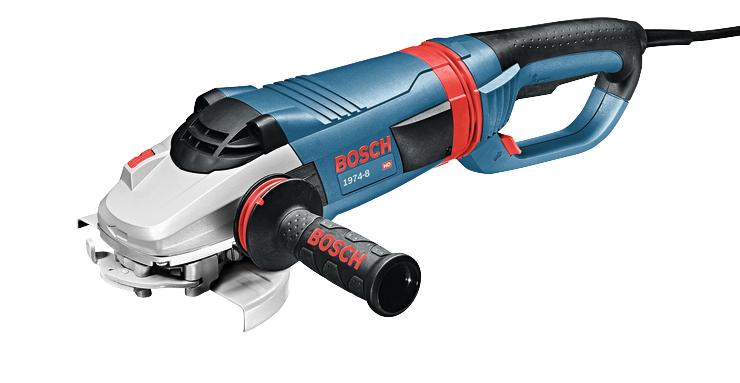

7 In. 15 A High Performance Large Angle Grinder
- Maximum power at minimum weight - up to 20% lighter than comparable tools
- Patented vibration control with soft grip - reduces vibration by up to 50%
- Durable and reliable - manufactured with highest quality, resonance reducing components
- Quick adjust guard system - quickly adjusts and locks in place for added protection
- Epoxy coated field windings - provides ultimate protection against abrasive dust and metal debris
- Service minder brushes - eliminates guesswork, stops tool when preventive maintenance is required
- Tri-metal switch design - helps prevent accidental start ups
- Removable brush covers - for easy brush replacement
- AC/DC compatibility - extends tool versatility to DC outlets such as welders and generators
1974-8 Professional
Technical data
The most important data |
|
|---|---|
| Adjustable Handle Position | Yes |
| Amperage | 15 |
| Height in | 0 " |
| Length in | 17.5 " |
| No Load RPM | 8,500 |
| Overload Protection | No |
| Rating | 120 V |
| Spindle Thread | 5/8 -11 UNC |
| Variable Speed | No |
| Voltage | 120V |
| Weight | 11.4 lb |
| Wheel Diameter in | 7" |
| Works With | Cutting Dust Extraction/Collection Hoods, 19DC-7, Surface Grinding Dust Extraction/Collection Hoods, 18SG-7, Metal Type 1A Cutting Guard, 19CG-7 |
| Includes |
(1) - Vibration Control Side Handle (1) - Quick Adjust Wheel Guard (1) - Grinding wheel flange kit (1) - Spanner Wrench |
1974-8 Professional: Further information
Product Highlights
Bosch Power Tools deliver stronger performance and lasting reliability. The Bosch 1900 series 7 In. and 9 In. grinders are redefining innovation. The line is powered by A new, ultra-efficient 4 HP motor. It utilizes the best vibration control system on the market. If that isn't enough, they are also the lightest large angle grinders available, weighing up to 20% less than any comparable competitive model.
