Combo Pack Routers
1617EVSPK Professional
Combo Pack Routers

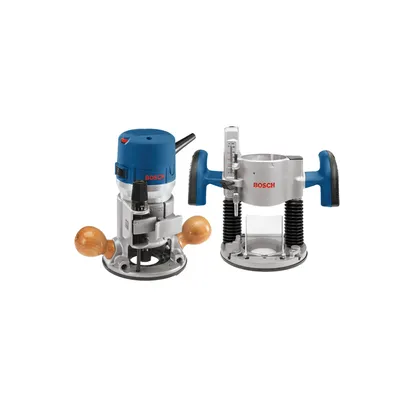

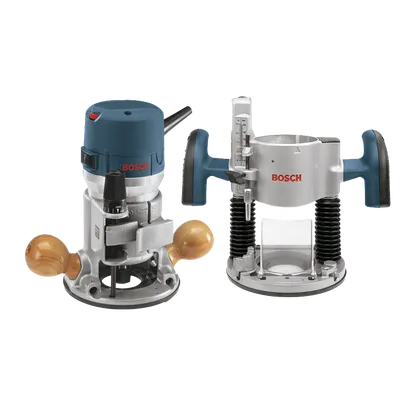

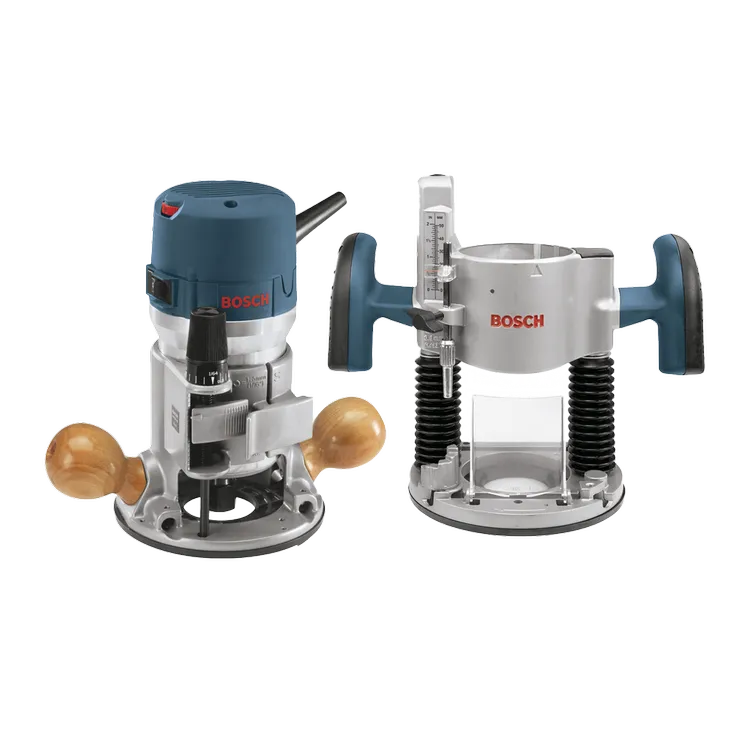

2.25 HP Combination Plunge- and Fixed-Base Router
- Router's 12-Amp motor is powerful, and it includes adjustable speed settings
- Constant Response circuitry stabilizes start-up torque
- Adjustable speed dial (8,000-25,000 RPM) allows user to set the optimal speed
- Microfine bit-depth adjustment
- Plunge base
- Rounded hardwood handles maximize user control
- Threaded three-hole base pattern
- Dust-sealed power switch
- One-piece armature shaft
- 2 In. sub-base opening
- Double insulated
- Now includes RA1161 fixed-base with system for adjusting bit height from above a router table
- Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern
- Rugged carrying case has compartments for all included items
- Power switch – now includes dust-sealed power switch
- Compatible with optional RA1129 Template Guide Adapter Set – for easy change of Bosch quick-release template guides and common threaded template guides; includes RA1126 Template Guide Adapter and RA1100 Interface for Threaded Template Guides
1617EVSPK Professional
Technical data
The most important data |
|
|---|---|
| Amperage | 12 |
| Base Diameter | 6" Fixed/ 6-11/16" Plunge |
| Case Type | Hard plastic |
| Collet Capacity | 1/4", 3/8", 1/2", 8 mm |
| Dust Collection | No |
| Fixed-Base Depth Range | 1-5/8" |
| Height in | 11.625 " |
| Length in | 6 " |
| No Load RPM | 8,000-25,000 |
| Plunge Depth | 2-1/4" |
| Rating | 120V AC |
| Subbase Opening | 2" |
| Used on Model No. | RA1171, RA1180, RA1181, RA1182, RA1200 Router Tables (Router in fixed base only). |
| Variable Speed | Yes |
| Voltage | 120V |
| Weight | 10 lb |
| Weight (lbs.) | 10 |
| Width in | 11.5 " |
| Works With | Router Tables, RA1141 Portable Benchtop Router Table, RA1171 Cabinet-Style Router Table, RA1181 Router Table, RA1165 Router Table Base, RA1152 Offset Bit-Change Wrench Set, Router Guide, RA1054, Template Guide System, RA1128 Template Guide Set, RA1129 Template Guide Adapter Set, Centering Device for Subbases and Attached Template Guides, RA1151, Dust Collection Attachments, RA1175 Edge-forming Dust Hood, RA1173AT Three-Hood Dust Hood Set |
| Includes |
1/4" Self-Releasing Collet Chuck - 2 610 906 283 1/2" Self-Releasing Collet Chuck - 2 610 906 284 16mm Shaft Wrench - 2 610 991 388 24mm Collet Nut Wrench - 2 610 992 417 Carrying Case - 2 610 913 367 Fixed Base (RA1161) Plunge Base (RA1166) Fixed Base Chip Shield - 2 610 991 389 Plunge Base Chip Shield - 2 610 912 599 Motor T-Handle Hex Height Adjustment Wrench - 2610923193 Pack of 3 10-24 Screws for Table Mounting - 2610925813 |
1617EVSPK Professional: Further information
Product Highlights
The Bosch 1617EVSPK 2.25 HP Combination Plunge- and Fixed-Base Router has the power to get results, with a 12 Amp motor and adjustable speed settings. The variable-speed dial allows the operator to set the optimal speed. Constant Response Circuitry, the router will maintain a constant speed throughout the cut, resulting in clean, accurate product. The plunge base features smooth plunge action. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices. The Bosch Precision Centering Design allows the bit to be centered with the sub-base or optional template guides.
