Straight Router Bits

Carbide-Tipped Plywood Mortising Bits

For hand-held routers, For Palm Routers

  • Carbide-Tipped Plywood Mortising Bits product a tight-fitting joint in plywood
  • Creates cutting diameter to match thickness of the plywood
  • Produces a tight fit when mortising standard plywood
  • Balanced cutting with minimal vibration
  • Micrograin carbide tips provide superior wear resistance and long life
View more View less

Materials

Hardwood
Particleboard
Medium density fibreboard
Plywood
Softwood
Select options

Shank Inch 2 options

Diameter (D) Inch 3 options

Working length (L) Inch 3 options

Choose a pack size 1


Carbide-Tipped Plywood Mortising Bits
from

High Performance in General Routing

Premium-quality micrograin carbide tips are ground on specialized CNC equipment for an extra-fine finish with maximum sharpness and edge retention. Plywood mortising bits are nominally sized to match the actual thickness of the plywood to produce a tight-fitting joint. The fully hardened and tempered steel shank provides ultimate durability.

View more

Product Options

Available product options: 6

Part number Shank Inch Diameter (D) Inch Working length (L) Inch Pack quantity

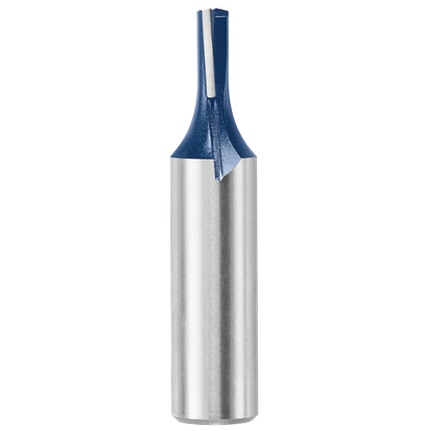

84600M 1/4 15/64 3/4 1

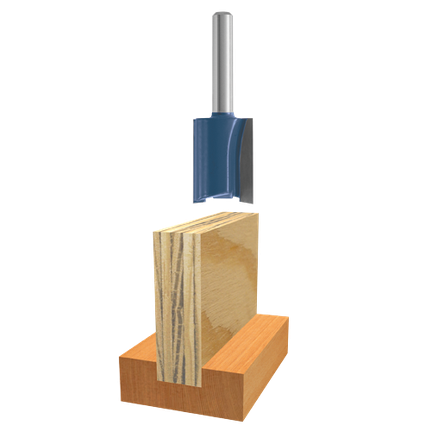

84601M 1/4 31/64 3/4 1
84601MC 1/4 31/64 3/4 1

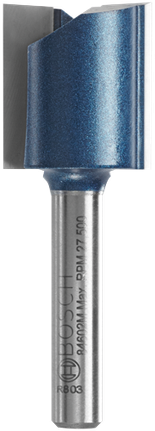

84602MC 1/4 22/32 3/4 1

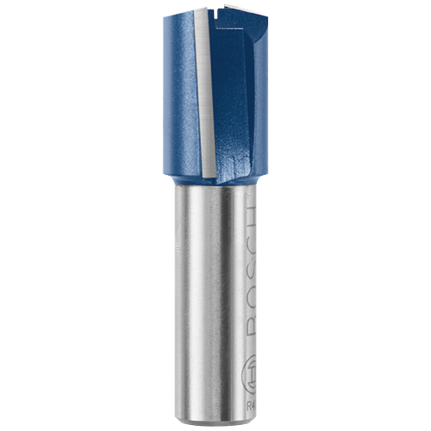

84603M 1/2 22/32 1 1/4 1

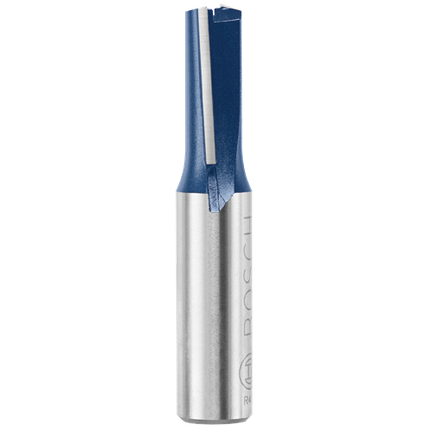

84625M 1/2 31/64 1 1

out of products
