Straight Router Bits

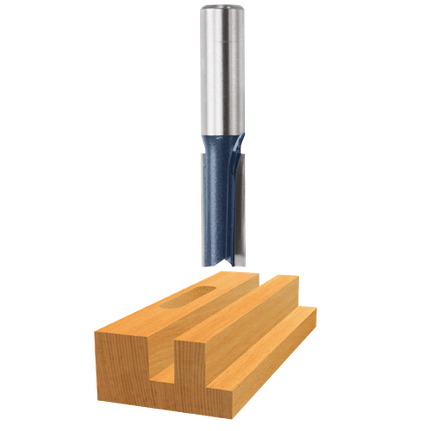

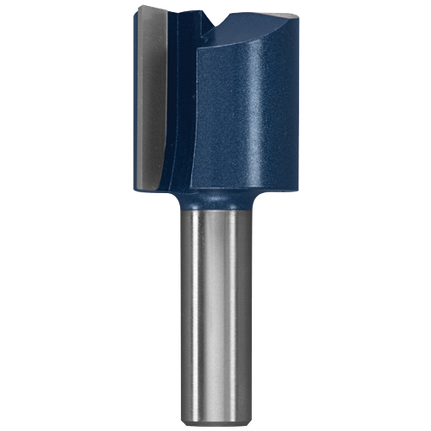

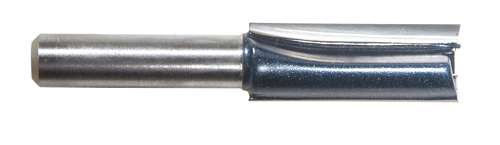

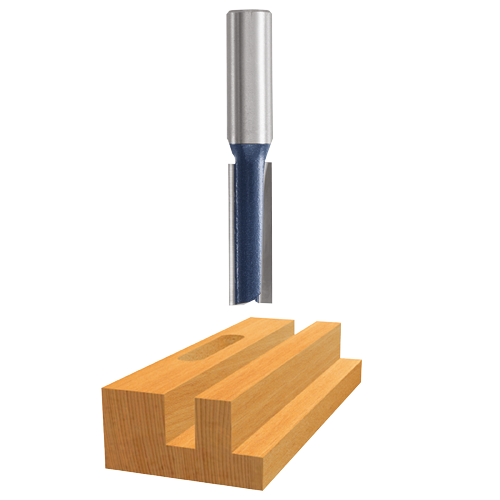

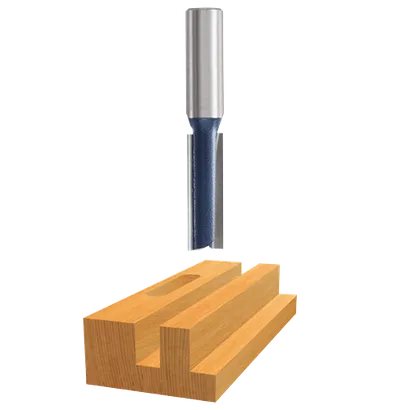

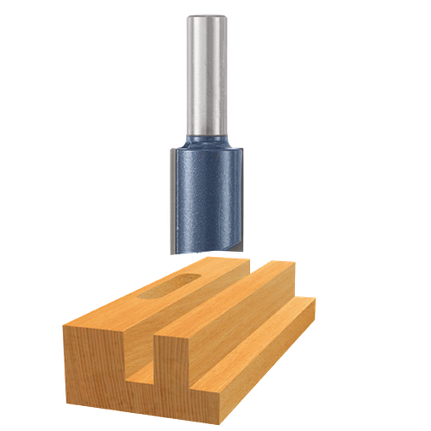

Carbide-Tipped Double-Flute Straight Bits

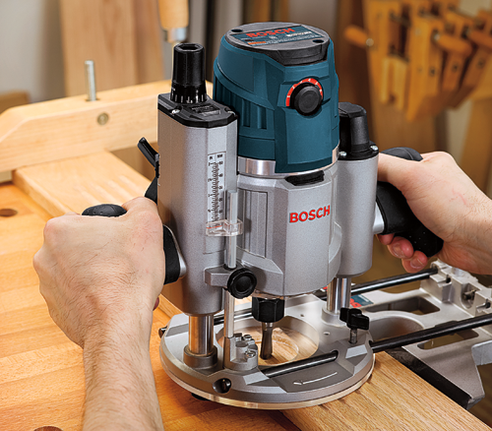

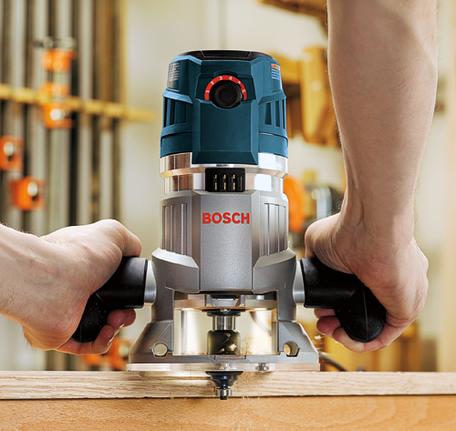

For hand-held routers, For Palm Routers

  • Carbide-Tipped Router Bits deliver precision and durability
  • Micrograin carbide-tip router bit design – ensures consistently smooth finish cuts, with superior wear resistance
  • Double flute design – allows for a better finish in harder materials, with smooth finish and good feed rates
  • Strong webbing and heavy cutter backing – extend bit life, with balanced cutting and minimal vibration
  • Reinforced shanks – feature fully hardened and tempered steel shanks that provide ultimate durability
View more View less

Materials

Hardwood
Particleboard
Medium density fibreboard
Softwood

Select options

Shank Inch
Diameter (D) Inch
Working length (L) Inch
Choose a pack size
Select options

Shank Inch 3 options

Diameter (D) Inch 22 options

Working length (L) Inch 9 options

Choose a pack size 1

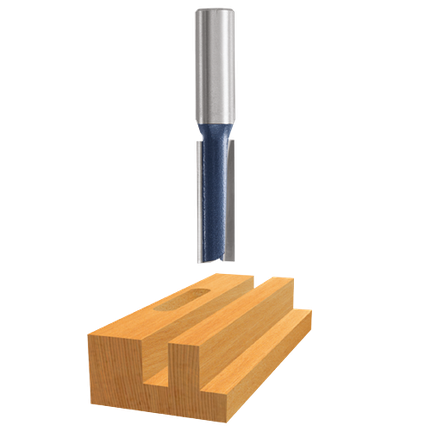

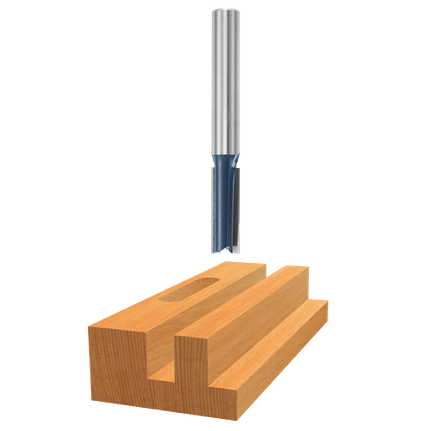

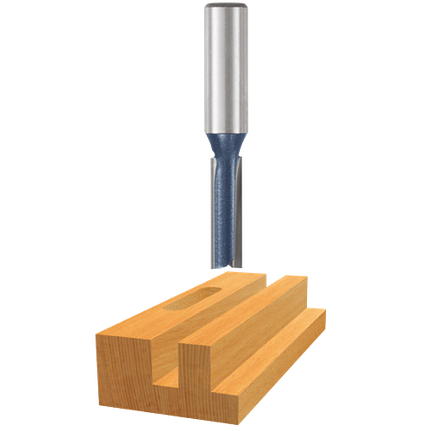

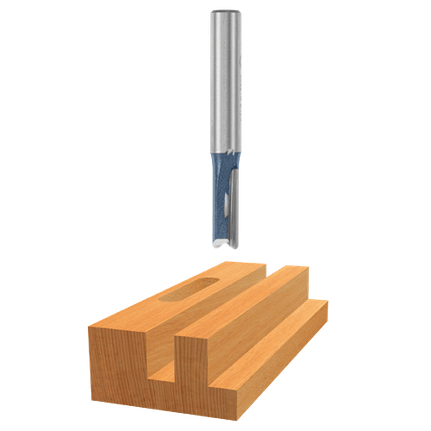

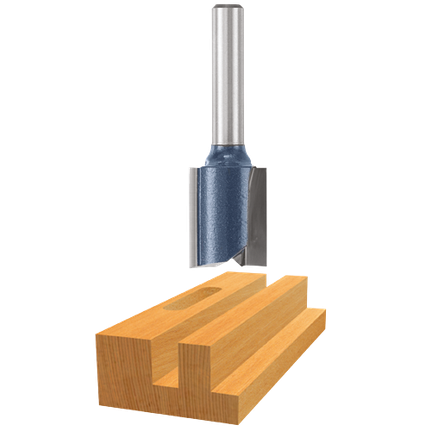

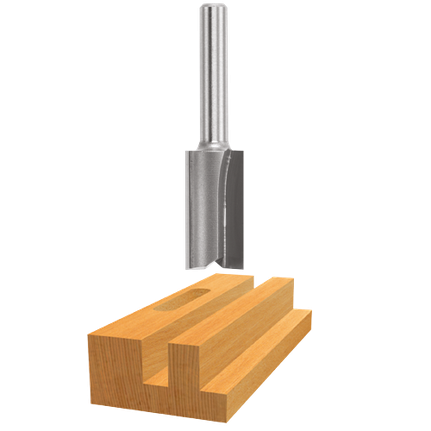

Carbide-Tipped Double-Flute Straight Bits

High Performance in General Routing

Bosch Carbide-Tipped Router Bits deliver precision and durability. They feature premium-quality micrograin carbide tips that are engineered with a special heat-treating process for an extra-fine finish. The tips provide maximum sharpness and edge retention.

View more

Product Options

Available product options: 45

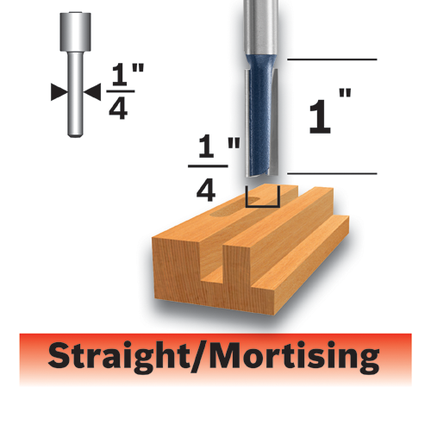

Part number Shank Inch Diameter (D) Inch Working length (L) Inch Pack quantity
82086M 1/2 3/4 1 1/2 1
84207M 1/2 3/8 1 1/4 1
84210M 1/2 1/2 1 1/4 1

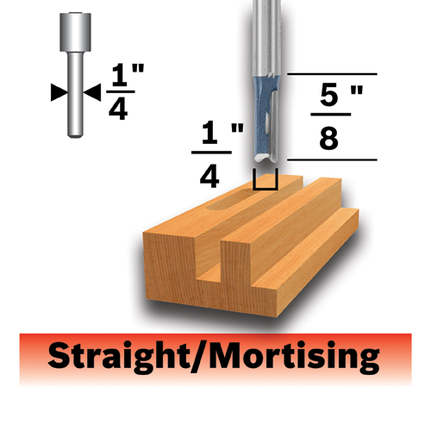

85221M 1/4 1/4 5/8 1
85221MC 1/4 1/4 3/4 1
85223M 1/4 9/32 1 1

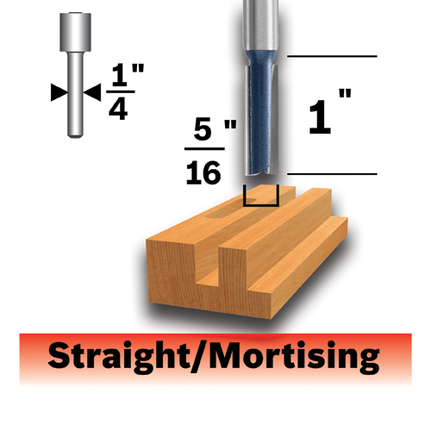

85224M 1/4 5/16 1 1
85224MC 1/4 5/16 1 1
85225M 1/4 3/8 1 1
85226M 1/4 7/16 1 1

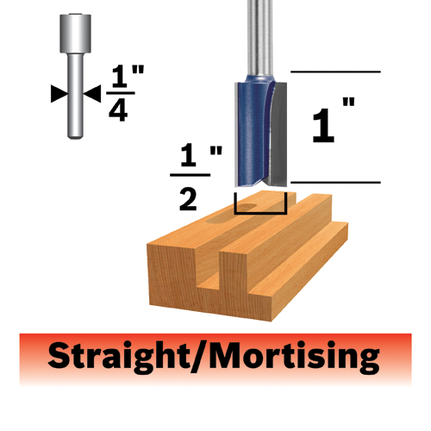

85227MC 1/4 1/2 1 1
85228M 3/8 1/8 1 1/4 1
85229M 1/4 9/16 3/4 1

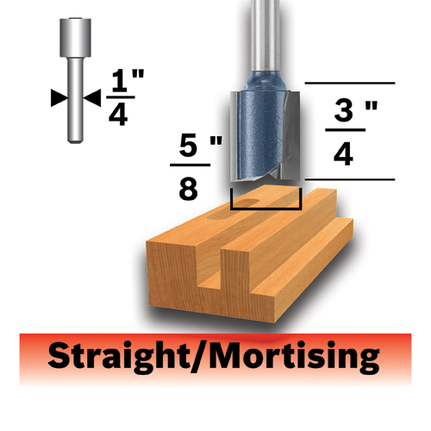

85230M 1/4 5/8 3/4 1
85230MC 1/4 5/8 3/4 1
85232MC 1/4 3/4 3/4 1
85235M 1/2 1 1/16 1 1/4 1

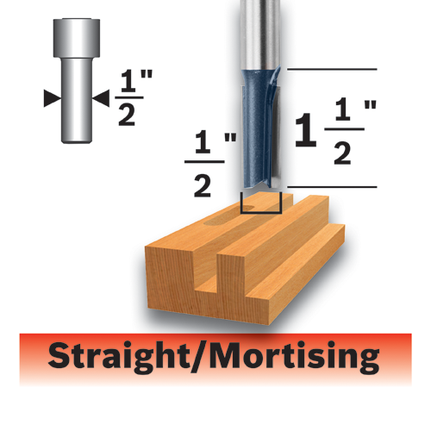

85242M 1/2 1/2 1 1/2 1
85242MC 1/2 1/2 1 1/2 1
85243M 1/2 1 1 1/4 1
85250M 1/4 1/4 7/8 1
85251M 1/2 1/2 2 1
85251MC 1/2 1/2 2 1
85252MC 1/2 1/2 2 1/2 1
85254M 1/2 13/32 25/32 1
85255M 1/2 7/16 1 1/4 1
85256M 1/2 1/2 1 1/2 1
85257M 1/2 17/32 1 1/4 1
85258M 1/2 9/16 1 1/4 1
85259M 1/2 21/32 1 1/4 1
85260M 1/2 11/16 1 1/4 1
85262M 1/4 13/16 3/4 1

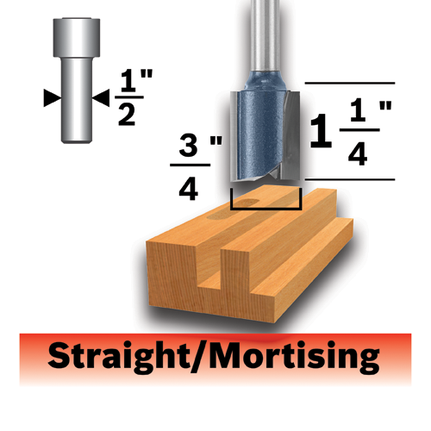

85265MC 1/2 3/4 1 1/4 1
85272M 1/2 3/4 2 1
85273M 1/2 25/32 1 1/4 1
85274M 1/2 5/16 3/4 1
85276M 3/8 3/8 1 1
85454M 1/2 5/8 1 1/4 1
85457M 1/2 13/16 1 1/4 1
85458M 1/2 7/8 1 1/4 1
85460M 1/2 1/4 3/4 1
85465M 1/2 1 1/8 1 1/4 1
85466M 1/2 1 1/4 1 1/4 1
85469M 1/2 1 1/2 1 1/4 1
85613MC 1/4 1/4 1 1
